ZTE ZXHN F8648P AX6000 Dual-band XGS-PON Gateway & ONT
The ZTE ZXHN F8648P is an AX6000 dual-band Gigabit Premium triple-play XGS-PON gateway designed for high-speed residential broadband connectivity. It combines XGS-PON access with Wi-Fi 6, multi-gigabit Ethernet, voice, and USB connectivity.

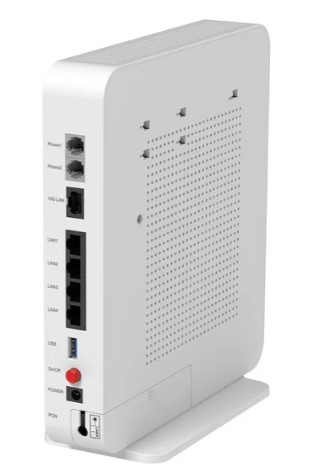

The XGS-PON WAN provides high-speed optical network access, while the wired interface includes one 10GE LAN port and four GE LAN ports. This configuration supports high-speed wired connections for residential devices and network equipment.
The dual-band Wi-Fi 6 system uses 4x4 MIMO on both 2.4 GHz and 5 GHz bands. The 5 GHz interface supports 160 MHz bandwidth, while MU-MIMO and OFDMA technologies provide efficient wireless performance for connected devices.

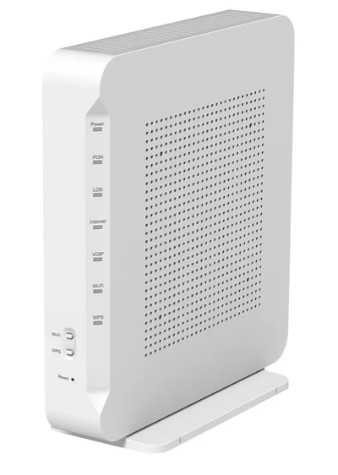

For triple-play services, the ZTE ZXHN F8648P provides two FXS phone ports and one USB interface. Reset, On/Off, WPS, and Wi-Fi buttons provide convenient device control, while LED indicators show Power, PON, LOS, Internet, VOIP, WPS, and Wi-Fi status.
The ZTE ZXHN F8648P has a compact 230 mm × 40 mm × 215 mm design and operates from 0°C to 40°C with 5% to 95% humidity. It uses a 12V DC, 3A power input and carries CE, Wi-Fi, RoHS, and EasyMesh R3 certifications.
Key features
-
AX6000 dual-band XGS-PON gateway and ONT
-
Dual-band 4x4 Wi-Fi 6 with 160 MHz 5 GHz bandwidth
-
MU-MIMO and OFDMA wireless technologies
-
1 × 10GE and 4 × GE LAN ports
-
2 × FXS phone ports for triple-play services
-
1 × USB interface
-
Reset, On/Off, WPS, and Wi-Fi buttons
-
CE, Wi-Fi, RoHS, and EasyMesh R3 certifications
Specifications:
| Product Type |
AX6000 dual-band Gigabit Premium triple-play XGS-PON gateway |
| Wi-Fi Standard |
Dual-band 4x4 Wi-Fi 6 |
| 5GHz Bandwidth |
160MHz @ 5GHz |
| Wi-Fi Technologies |
MU-MIMO and OFDMA |
| WAN |
|
| WAN |
XGS-PON |
| LAN |
|
| 10GE LAN Port |
1 x 10GE |
| GE LAN Ports |
4 x GE |
| Phone Ports |
2 x FXS |
| USB |
1 x USB |
| WLAN Interfaces |
|
| 2.4GHz Wi-Fi |
4x4 802.11b/g/n/ax Wi-Fi @2.4GHz |
| 5GHz Wi-Fi |
4x4 802.11a/n/ac/ax Wi-Fi @5GHz (160MHz) |
| Buttons |
|
| Buttons |
Reset, On/Off, WPS, Wi-Fi |
| LEDs |
|
| LED Indicators |
Power, PON, LOS, Internet, VOIP, WPS, Wi-Fi |
| Power Supply |
|
| Power Input |
12V DC, 3A |
| Physical |
|
| Dimensions (W × D × H) |
230 mm × 40 mm × 215 mm |
| Net Weight |
1100g |
| Operating Environment |
|
| Operating Temperature |
0°C - 40°C |
| Humidity |
5% - 95% |
| Certification |
|
| Certifications |
CE; Wi-Fi; RoHS; EasyMesh R3 |
