Tired of dead zones and slow Wi-Fi when you need it most? The Zyxel BE22000 12-Stream WiFi 7 Triple-Radio NebulaFlex Pro Access Point is built to end those frustrations. It is a high-performance wireless access point designed for offices, schools, and busy homes that need fast, reliable connections for many devices at once. If your current network drops video calls, stalls game streams, or cant handle dozens of laptops, you need a solution that delivers real speed and coverage.

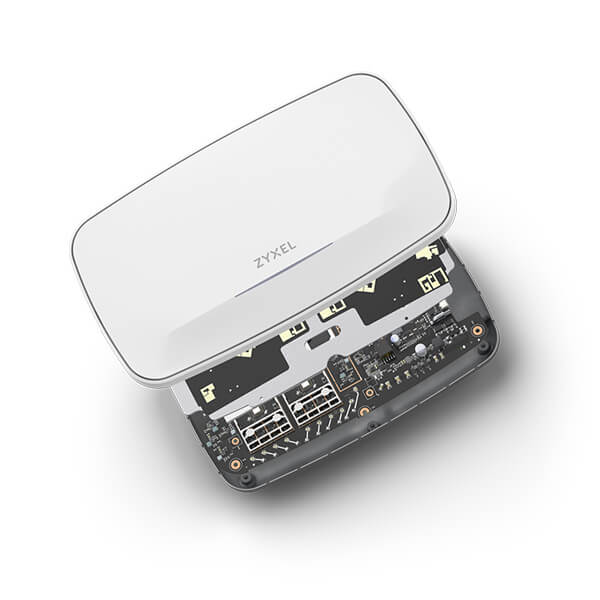

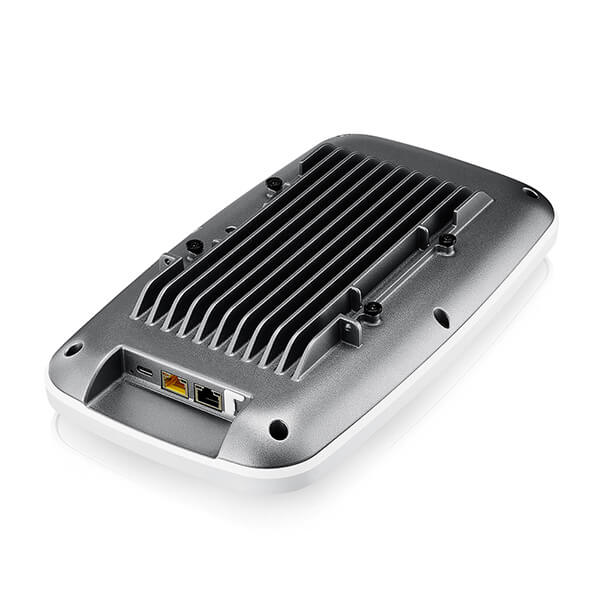

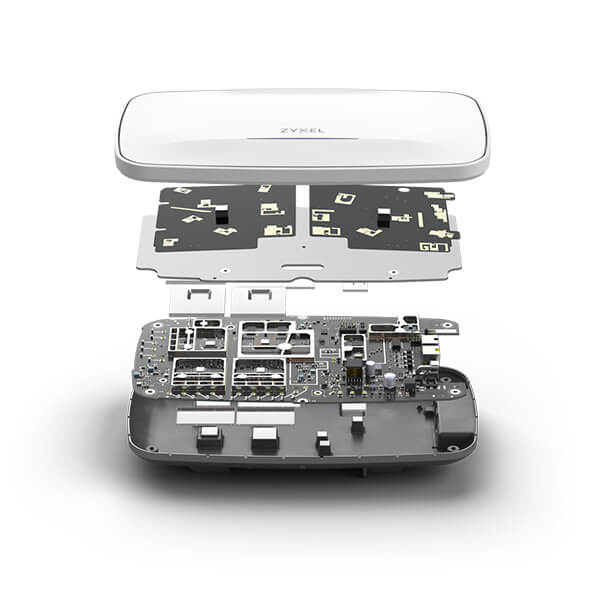

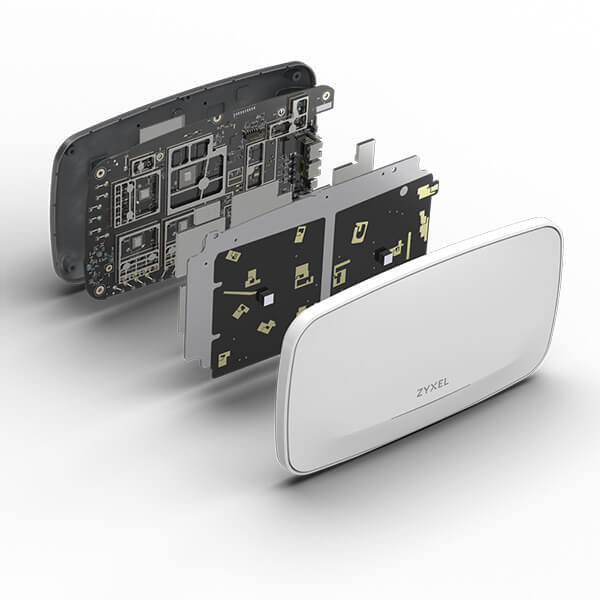

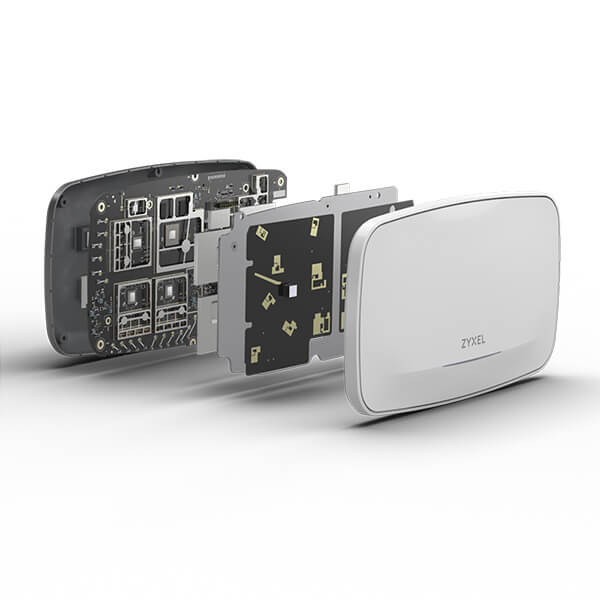

Zyxel BE22000 12-Stream WiFi 7 Triple-Radio NebulaFlex Pro Access Point
Many modern spaces suffer from overloaded Wi-Fi that cannot keep up with high-definition video, cloud apps, and IoT devices. This problem hurts productivity and creates a poor user experience. The BE22000 solves it by using Wi-Fi 7 technology, three radios, and 12 data streams to give each device the bandwidth it needs. With smart antenna steering and automatic band selection, the access point keeps every client on the fastest channel, so you enjoy smooth video, lag-free gaming, and fast file transfers.
Key Features
- Wi-Fi 7 (IEEE802.11be) with 2.4 GHz, 5 GHz, and 6 GHz bands.
- 12-stream MU-MIMO design for high-density environments.
- Bandwidth options up to 320 MHz for maximum throughput.
- Smart antenna with 44:4SS on each band for better coverage.
- Band steering and load balancing to keep traffic evenly distributed.
- Fast roaming support (pre-authentication, PMK caching, 802.11r/k/v).
- Advanced cellular coexistence to reduce interference from 5G.
- WPA3, WPA2, WPA, and WEP encryption plus 802.1X RADIUS authentication.
- IPv6, VLAN, WMM, and U-APSD for modern network needs.
- PoE 802.3bt (up to 41 W) and USB-C PD power options.
- Managed via Nebula cloud, controller, or standalone Web UI/CLI.
- 1 x 1/2.5/5/10 Gbps LAN port and 1 Gbps LAN port for wired backhaul.
Specifications
| Wireless |
|
| Standard |
IEEE802.11 be/ax/ac/n/g/b/a |
| MIMO |
MU-MIMO |
| Wireless speed |
2.4 GHz: 1376 Mbps
5 GHz: 8646 Mbps
6 GHz: 11530 Mbps |
| Frequency band |
2.4 GHz:
USA (FCC): 2.412 to 2.462 GHz
Europe (ETSI): 2.412 to 2.472 GHz
5 GHz:
USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
6 GHz:
USA (FCC): 5.925 to 6.425 GHz; 6.525 to 7.125 GHz
European (ETSI): 5.925 to 6.425 GHz |
| Bandwidth |
20-, 40- ,80-, 160- , 240- and 320-MHz |
| Conducted typical transmit output power*1 |
US (2.4GHz/5GHz/6GHz):29/28/23dBmEU (2.4GHz/5GHz/6GHz):19/25/22dBm |
| RF Design |
|
| Antenna type |
Smart Antenna |
| Antenna gain |
2.4 GHz:
3dBi, 4x4:4SS
5 GHz:
5dBi, 4x4:4SS
6 GHz:
5dBi, 4x4:4SS |
| Minimum receive sensitivity |
Min. Rx sensitivity up to -104 dBm |
| WLAN Feature |
|
| Band steering |
Yes |
| WDS/Mesh*2 |
Yes |
| Fast roaming |
Pre-authentication, PMK caching and 802.11r/k/v |
| DCS |
Yes |
| Load balancing |
Yes |
| Advanced cellular coexistence |
Yes |
| Security |
|
| Encryption |
WEP, WPA, WPA2, WPA3 |
| Authentication |
IEEE 802.1X, RADIUS authentication |
| Networking |
|
| IPv6 |
Yes |
| VLANs |
Yes |
| WMM |
Yes |
| U-APSD |
Yes |
| Management |
|
| Operating mode |
Nebula cloud managed, Controller-managed, Standalone |
| Web UI/CLI |
Yes |
| SNMP |
Yes |
| Physical Specifications |
|
| Item |
Dimensions (WxDxH)(mm/in.)310 x 178 x 56 / 12.205 x 7.01 x 2.205, Weight (g/lb.)1412/3.11 |
| Packing |
Dimensions (WxDxH)(mm/in.)377 x 231 x 93 / 14.84 x 9.09 x 3.66, Weight (g/lb.)2040/4.497 |
| Included accessories |
Mount plateMounting screws |
| MTBF (hr) |
242,749 |
| Physical Interfaces |
|
| Ethernet port |
1 x 1/2.5/5/10Gbps LAN, 1 x 1Gbps LAN |
| Power |
PoE (802.3)bt: power draw 41 WDC input : USB PD 15 VDC 3A (Type C) |
| PoE modes |
IEEE 802.3af: Not supported, IEEE 802.3at: 2.4GHz 2T4R; 5GHz 2T4R; 6GHz 2T4R*3, IEEE 802.3bt: Unrestricted |
| Operating |
|
| Temperature |
0°C to 45°C/32°F to 113°F |
| Humidity |
10% to 90% (non-condensing) |
| Storage |
|
| Temperature |
-40°C to 70°C/-40°F to 158°F |
| Humidity |
10% to 90% (non-condensing) |
