Tired of slow, unsafe internet that lets hackers in? The Zyxel USG FLEX 500H Security Gateway Firewall with 1-Yr Entry Defense Pack is a compact device that protects your network and keeps traffic fast. It is built for small offices, remote sites, and home-based businesses that need strong security without a complicated setup.

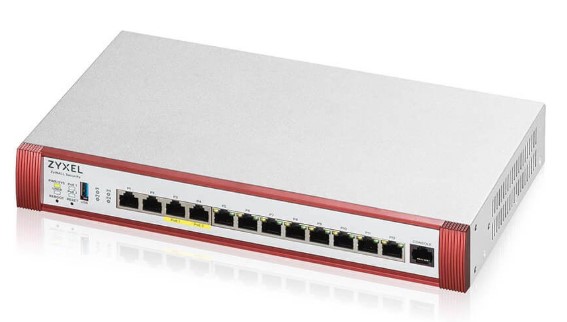

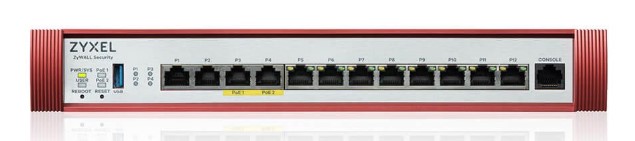

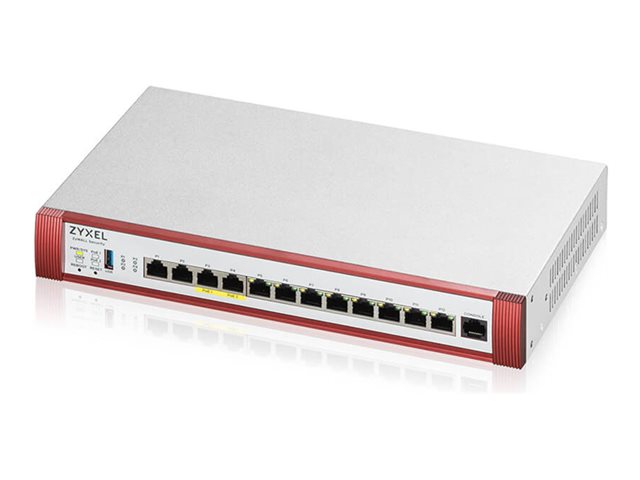

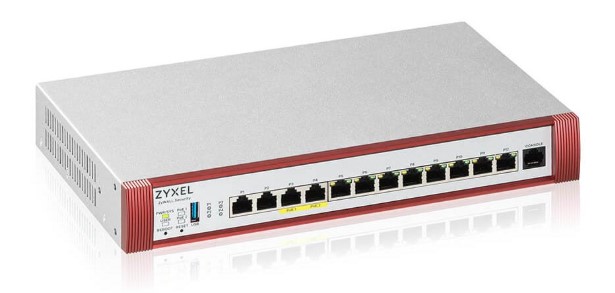

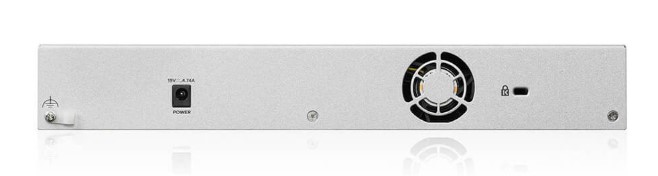

Zyxel USG FLEX 500H Security Gateway Firewall with 1-Yr Entry Defense Pack
Many small businesses lose productivity because their network is exposed to malware, ransomware, and unwanted traffic. When a breach happens, data can be stolen and downtime can cost money. This gateway solves the problem by acting as a barrier that inspects every packet, blocks threats, and lets only safe traffic pass. It also offers VPN tunnels so remote workers can connect securely. The built-in Entry Defense Pack gives you a year of updates, so you stay protected as new threats appear.
Key Features
- 10 Gbps SPI firewall throughput.
- 2.5 GbE and PoE+ ports for high-speed wired devices.
- 300 IPSec VPN tunnels and 150 SSL VPN users.
- 64 VLANs for network segmentation.
- Advanced encryption: AES-256, 3DES, IKEv2, SSL.
- Unified Threat Management (UTM) with anti-malware and IPS.
- Syslog remote management and DDNS support.
- Compact 1.7 in height, rack-mount kit included.
- Power supplied by external adapter, plus PoE+ for peripherals.
- Compliant with FCC, IEC, and IEEE standards for safety.
Specifications
| Compatibility Information |
|
| Designed For |
Zyxel SFP-1000T, SFP10G-LR, SFP10G-SR, SFP-LX-10-D, SFP-SX-D |
| Miscellaneous |
|
| Cables Included |
1 x RJ-45 to RS-232 cable |
| Encryption Algorithm |
3DES |
| Color Category |
Red |
| Included Accessories |
Power cord, rack mount kit |
| Compliant Standards |
FCC Part 15 A, EMC Class A, RCM Class A, BSMI, LVD, EN 62368-1 |
| Networking |
|
| Remote Management Protocol |
Syslog |
| Capacity |
Concurrent TCP sessions: 1000000, Concurrent IPSec VPN tunnels: 300, Gateway to gateway IPSec VPN Tunnels: 150, Concurrent SSL VPN users: 150, Virtual interfaces (VLANs): 64 |
| Power Over Ethernet (PoE) |
PoE+ |
| Status Indicators |
Power, system, link/activity |
| Network |
DDNS |
| Network / Transport Protocol |
IPSec, SMTP, POP3, FTP, PPPoE, DNS, DDNS |
| Data Link Protocol |
2.5 Gigabit Ethernet |
| Type |
Firewall |
| Compliant Standards |
IEEE 802.1Q, IEEE 802.3at |
| Form Factor |
External |
| Authentication Method |
X.509 certificates |
| Connectivity Technology |
Wired |
| Cloud-Managed |
Yes |
| Performance |
SPI firewall throughput: 10 Gbps, VPN throughput: 2 Gbps, IPS throughput: 4.5 Gbps, Anti-malware throughput: 3 Gbps, Unified Threat Management (UTM) throughput: 3 Gbps |
| Encryption Algorithm |
IKEv2, SSL, DES, 3DES, 256-bit AES, MD5, SHA-1, 512-bit SHA-2, DH |
| Header |
|
| Model |
500H |
| Product Line |
Zyxel USG Flex H Series |
| Packaged Quantity |
1 |
| Dimensions & Weight |
|
| Height |
1.7in |
| Width |
11.8in |
| Depth |
7.2in |
| Weight |
3.62lbs |
| Environmental Parameters |
|
| Min Operating Temperature |
32 °F |
| Max Operating Temperature |
104 °F |
| Humidity Range Operating |
10 - 90% (non-condensing) |
| General |
|
| Depth |
7.2 in |
| Width |
11.8 in |
| Weight |
3.62 lbs |
| Device Type |
Firewall |
| Height |
1.7 in |
| Expansion / Connectivity |
|
| Interfaces |
2 x 2.5 GBase-T - RJ-45, 2 x 2.5 GBase-T (PoE+) - RJ-45 - 30 W, 8 x 1000Base-T - RJ-45, 1 x USB 3.0 - Type A, 1 x console - RJ-45 |
| Dimensions & Weight (Shipping) |
|
| Shipping Weight |
6.46lbs |
| Shipping Depth |
5.9in |
| Shipping Width |
13.8in |
| Shipping Height |
9.6in |
| Power |
|
| Power Over Ethernet (PoE) Supported |
PoE+ |
| Power Device |
External power adapter |
