The Film & Cinema Production Network Kit is purpose-built for professional film and cinema production crews operating in demanding, on-location environments where network reliability, throughput, and failover resilience are non-negotiable. Designed to serve the full spectrum of on-set connectivity requirements from high-speed media ingest and footage offload to director monitoring and crew communications this kit delivers enterprise-grade network infrastructure in a single deployable package, without the complexity of a permanent installation.

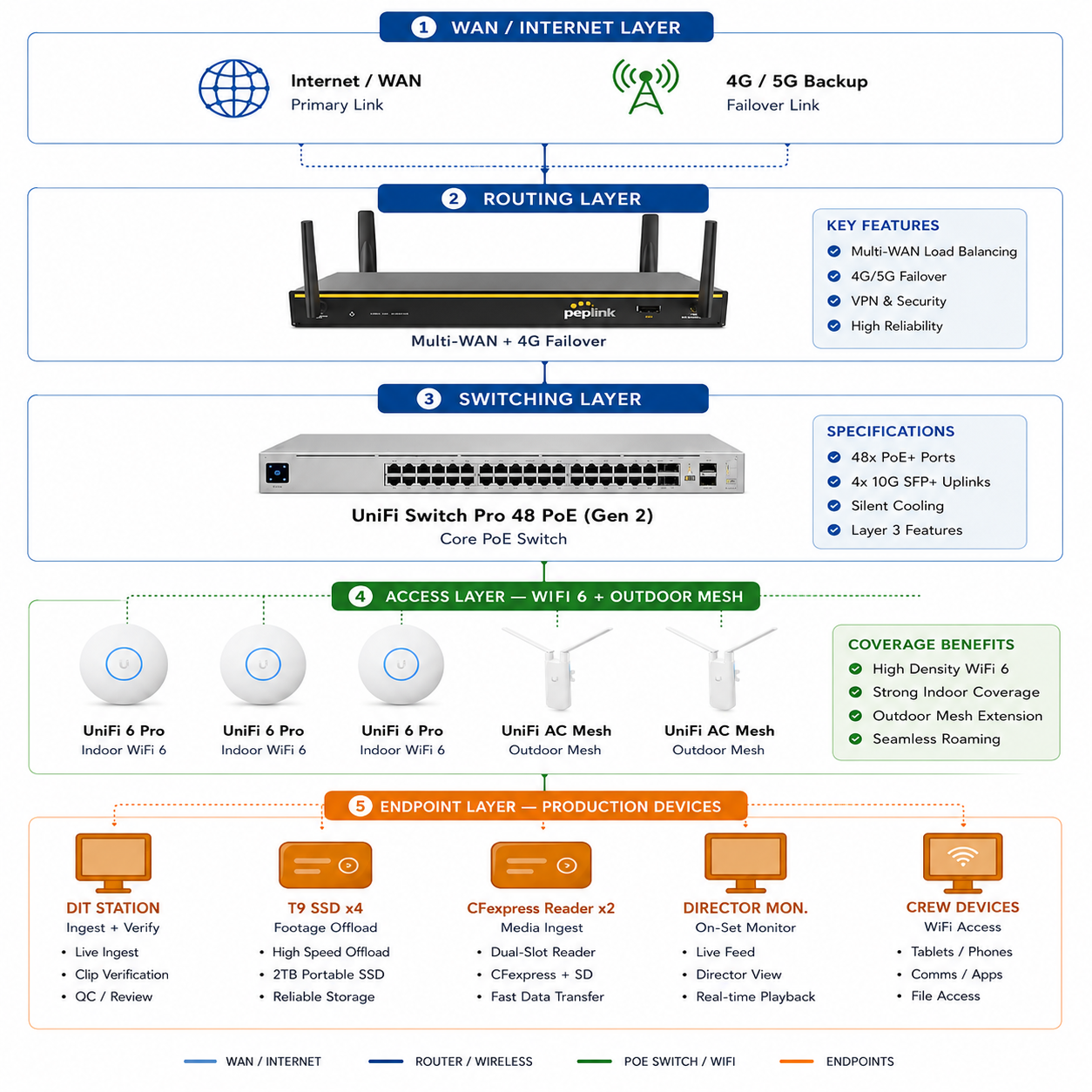

Anchored by a Peplink multi-WAN router with integrated 4G/5G failover and a UniFi Switch Pro 48 PoE (Gen 2) as the core distribution switch, the kit provides a fully managed, VLAN-capable network fabric capable of supporting simultaneous DIT ingestion workflows, director monitoring feeds, high-throughput storage transfers, and mobile crew access all without performance degradation across any workstream. Automatic failover from primary WAN to 4G/5G standby requires zero manual intervention, ensuring that active ingest sessions and live monitoring feeds are never interrupted by an upstream connectivity failure.

The wireless access layer combines three UniFi 6 Pro indoor access points delivering high-density 802.11ax (Wi-Fi 6) coverage with OFDMA and BSS coloring for interference management in device-dense environments with two UniFi AC Mesh outdoor units that extend seamless Layer 2 roaming to exterior sets, staging areas, and perimeter zones. All five access points are PoE-powered directly from the core switch, eliminating the need for separate power cabling on location. The result is a unified, centrally managed wireless fabric with seamless roaming across the entire production footprint.

Connectivity to production endpoints is handled via the 48-port PoE+ switch, with dedicated wired connections for fixed workstations including the DIT station, director monitor, CFexpress media ingest readers, and high-speed T9 portable storage. Crew devices tablets, phones, and communications applications are served over the Wi-Fi 6 access layer and can be isolated on a dedicated VLAN to maintain separation between production-critical and general-access traffic.

Features

Multi-WAN load balancing with automatic 4G/5G failover zero manual intervention on primary link failure

Peplink Speed Fusion-ready architecture for bonded WAN uplinks on bandwidth-critical productions

UniFi Switch Pro 48 PoE Gen 2 48x PoE+ ports, 4x 10G SFP+ uplinks, Layer 3 VLAN support, silent cooling

UniFi 6 Pro indoor access points 802.11ax Wi-Fi 6, OFDMA, BSS coloring, high device-density support

UniFi AC Mesh outdoor units exterior and perimeter set coverage with seamless mesh backhaul

Seamless Layer 2 roaming across all five access points no re-authentication for mobile crew on the move

VLAN segmentation isolate production, crew, ingest, and management traffic on separate network segments

Built-in VPN for secure remote connectivity between on-location production network and post-production facilities

Full UniFi ecosystem management single controller manages switching, routing policy, and all wireless infrastructure

PoE-powered access points no separate power cabling required at access point locations on set

Scalable architecture additional switches, access points, or uplinks can be integrated without redesigning the core stack

Specifications

Component	Model / Detail
Router	Peplink Multi-WAN, 4G/5G Failover Integrated
Core Switch	UniFi Switch Pro 48 PoE Gen 2 48x PoE+, 4x 10G SFP+
Indoor Access Points	UniFi 6 Pro 802.11ax Wi-Fi 6, dual-band
Outdoor / Mesh	UniFi AC Mesh outdoor-rated; mesh backhauls
WAN Redundancy	Dual-WAN Active/Standby, auto 4G/5G failover
Wireless Standard	802.11ax (Wi-Fi 6) indoor / 802.11ac outdoor
Switching	Layer 3 VLAN, inter-VLAN routing, static routing
Roaming	Seamless Layer 2 roaming across all access points
AP Power	PoE+ from core switch no external power required
