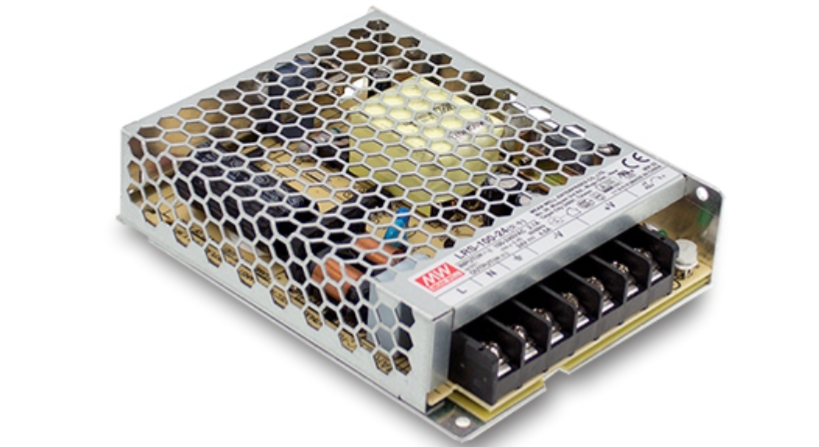

100W Single Output Switching Power Supply

Tired of flickering lights and unreliable adapters that cant keep your projects running? The 100W Single Output Switching Power Supply gives you a steady 24 V source that never quits. It is built for hobbyists, small manufacturers, and anyone who needs a clean, constant power line. When your device draws more current than a cheap supply can handle, it shuts down or damages the circuit. This 100W unit stops that problem before it starts.

100W Single Output Switching Power Supply

Many electronic builds suffer from voltage drops and excess heat because the power source cannot match the load. Those issues cause errors, shorten component life, and waste time fixing failures. The 100W Single Output Switching Power Supply removes the guesswork. It delivers a regulated 24 V output from a wide AC input range, keeping the voltage within 1 % even when the load changes. With 90 % efficiency it stays cool and saves energy. Built-in overload, over-voltage and short-circuit protection means the supply shuts down safely before any damage occurs. In short, it gives you reliable power so your work can continue without interruption.

Benefits

• Stable 24 V output prevents device resets and data loss.
• High 90 % efficiency lowers electricity cost and heat.
• Wide input range lets you plug into any standard wall outlet worldwide.
• Built-in overload and over-voltage protection keeps your equipment safe.
• Compact size and light weight make it easy to mount in tight enclosures.

Usages

You can use this supply in many places. It powers LED strip arrays for signage, runs the motors and controllers of small CNC machines, feeds the heated bed and electronics of 3D printers, drives industrial control panels, and supplies test rigs in a lab. Because it accepts 85-264 VAC, you can install it in any country without a transformer. The adjustable voltage range from 21.6 V to 28.8 V lets you fine-tune the output for different devices. Whether you are a hobbyist or a small shop, the unit fits the job.

Key Features

• Output: 24 V DC, 4.5 A max (108 W).
• Adjustable voltage 21.6 V-28.8 V.
• Input voltage 85-264 VAC or 120-373 VDC.
• Efficiency up to 90 %.
• Ripple & noise 150 mVp-p.
• Overload protection 110-150 % with hiccup mode.
• Over-voltage shut-down at 28.8-33.6 V.
• Operating temperature -30 C to +70 C.
• Dimensions 129 97 30 mm, weight 0.34 kg.
• Safety certified UL62368-1, TUV EN62368-1, EN60335-1

SPECIFICATIONS:
