Imagine a factory line that stops because the screen freezes or the touch does not work. The 15.6 Inch HTML5 Web HMI Capacitive Touch 1080p Industrial Panel gives you a reliable, fast, and clear interface for any machine. It is built for harsh plants, outdoor kiosks, and heavy-duty equipment. If you need a screen that can survive dust, vibration and temperature swings, this panel solves that problem.

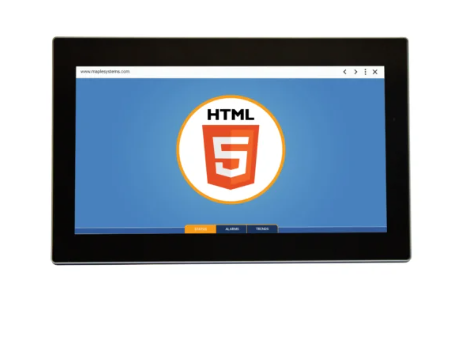

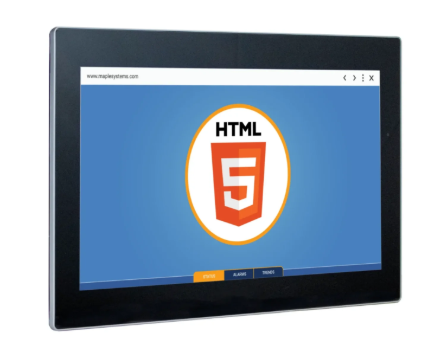

Weintek 15.6 Inch HTML5 Web HMI Capacitive Touch 1080p Industrial Panel
The main issue in industrial control is a display that cannot keep up with real-time data or that fails under tough conditions. When the screen lags, operators make mistakes, downtime rises, and profit drops. This panel delivers a full HD 1080p view, a responsive projected-capacitive touch, and a rugged enclosure that meets IP66 and NEMA-4 standards. The result is a clear, instant interface that keeps production moving.
Usages of Inch

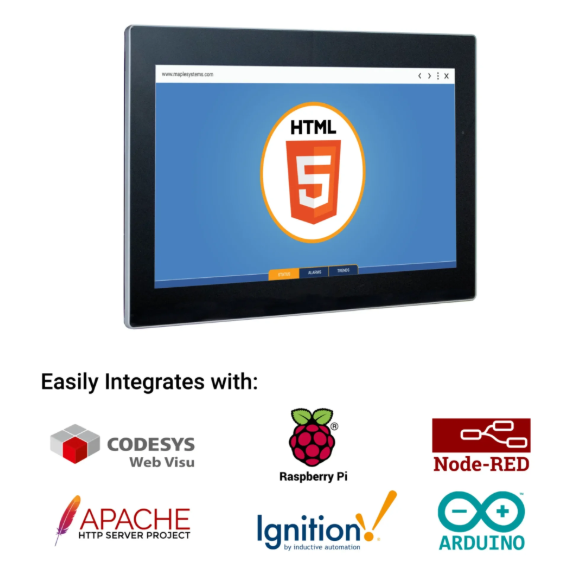

Use it in CNC machines to show tool paths, in packaging lines to monitor speed, in energy meters to display usage graphs, in vending machines for user selection, and in outdoor traffic signs for real-time alerts. The VESA mount lets you attach it to any panel board, and the Ethernet ports let it talk to PLCs or SCADA systems. It works wherever you need a sturdy, touch-enabled screen.
Benefits
- Fast response saves time on the shop floor.
- Full HD picture reduces eye strain and errors.
- IP66 protection keeps the screen safe from water and dust.
- Easy integration with existing PLCs and networks.
- Compact size fits into tight control cabinets.
Key Features
- 15.6" WVA LCD with 1920 1080 resolution

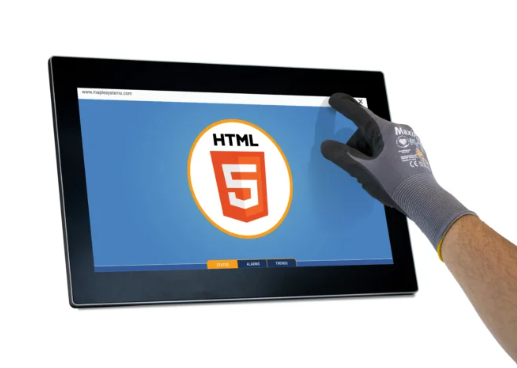

- Projected capacitive touch with tempered glass
- Quad-Core RISC CPU, 4 GB eMMC, 1 GB RAM
- Two Ethernet ports (10/100/1000 and 10/100)
- USB 2.0 host port for peripheral devices
- Power isolation built-in, 31.2 W input
- VESA 100 100 mm mounting pattern
- Operating temperature 0 C to 50 C
- Shock resistance up to 25 g for 11 ms
- UL Type 4X and CE certified for safety
SPECFICATIONS:
| CPU |
Quad-Core RISC |
| Memory (eMMC) |
4GB |
| Memory (RAM) |
1 GB |
| I/O Ports |
|
| Ethernet/LAN |
LAN 1: 10/100/1000 Base-T x 1; LAN 2: 10/100 Base-T x 1 |
| CANbus |
N/A |
| USB Host Ports |
USB 2.0 x 1 (Type A) |
| USB Client Ports |
N/A |
| Display |
|
| Resolution |
1920 x 1080 |
| Luminance (cd/m^2) |
300 |
| Colors |
16.2 M |
| Display Type |
15.6" WVA LCD |
| Size (W x H) |
13.60 x 7.68 inches [345.6 x 195 mm] |
| Touch Screen |
|
| Type |
Tempered Glass, Projected Capacitive |
| Electrical |
|
| Input Power |
31.2 W |
| Power Isolation |
Built-in |
| Input Voltage |
24 ± 20% VDC |
| Input Current |
1.3 A @ 24 VDC |
| Mechanical |
|
| Vibration Endurance |
10 to 25Hz (X, Y, Z direction 2G 30 minutes) |
| Enclosure Material |
Front bezel: Plastic, Rear Enclosure: Aluminum |
| PCB Coating |
Yes |
| Dimensions WxHxD |
15.75 x 10.35 x 1.03 inches [400 x 263 x 26.1 mm] |
| Panel Cutout (inches) [mm] |
15.12 x 9.72 [384 x 247] |
| Weight |
Approx. 3.53 lbs. [1.6 kg] |
| Mounting |
Panel mount, VESA 100 x 100 mm |
| Shock (Operation) |
25 g acceleration for 11 ms |
| Environmental |
|
| Operating Temperature |
32~122°F [0~50°C] |
| Storage Temperature |
-4~140°F [-20~60°C] |
| Relative Humidity |
10% ~ 90% (non-condensing) |
| Certification |
|
| UL Type Rating |
UL Type 4X (indoor use only) |
| NEMA Rating |
NEMA 4 |
| IP Rating |
IP66 Compliant Front Panel |
| CE |
Yes |
| UL |
cULus Listed |
| RoHS |
Yes |
