Maple System 16 Port Unmanaged Gigabit Ethernet Switch 10/100/1000 Mbps MS1-U16G

Many small businesses and workshops run out of network ports when they add new computers, printers or cameras. When the network is crowded the speed drops and devices become unreliable. This can slow work, cause missed deadlines and create frustration. The 16 Port Unmanaged Gigabit Ethernet Switch 10/100/1000 Mbps MS1-U16G adds sixteen fast ports so you can connect more devices without losing performance.

Maple Systems Inc. 16 Port Unmanaged Gigabit Ethernet Switch 10/100/1000 Mbps MS1-U16G with Port

You need a simple way to grow your network without dealing with complex settings. This switch is a plug-and-play device that gives you sixteen RJ45 ports that support 10, 100 and 1000 Mbps speeds. It solves the problem of limited connections by providing a ready-made hub for all your Ethernet devices. No software, no configuration - just connect the cables and the network works.

Usages

Use it in a small office to link computers, VoIP phones and a printer. Install it on a factory floor to connect PLCs, sensors and a human-machine interface. It works well for security systems where multiple IP cameras need a reliable link. It also fits in a home lab where hobbyists want to test several devices at once.

Benefits

• Sixteen ports let you expand without buying another switch.
• Gigabit speed keeps file transfers and video streams smooth.
• Plug-and-play design saves time and avoids configuration errors.

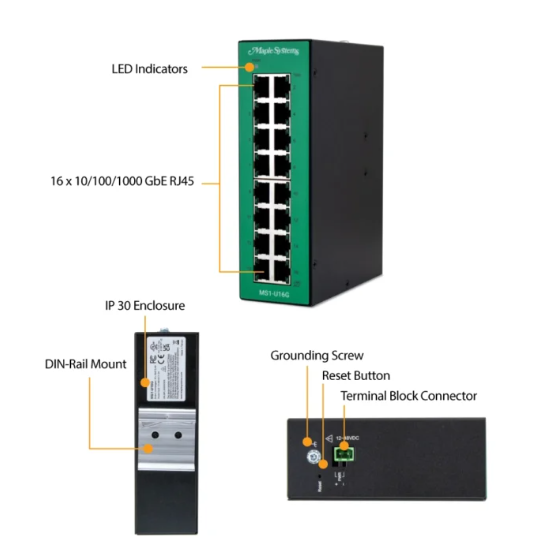

• Robust metal case and DIN rail mount fit industrial environments.
• Low power consumption reduces electricity costs.

Key Features

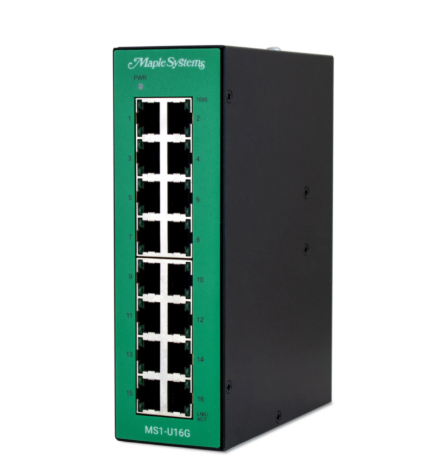

• Sixteen RJ45 copper ports.
• Supports 10/100/1000BASE-T auto negotiation.
• 32 Gbps switch fabric for fast data handling.
• 1 Mbit packet buffer to avoid loss.
• Jumbo frame support up to 10 k bytes.
• Flow control and storm control for stable traffic.
• VLAN passthru for up to 4094 VLAN IDs.
• Industrial QoS for PROFINET traffic.

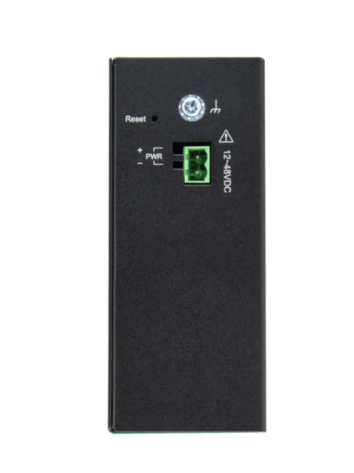

• Power input 12-48 VDC with overload protection.
• IP30 enclosure protects against dust.
• LED panel shows power, link and activity.
• UL and cULus listed for safety compliance.
