When a machine needs steady power, a weak or unstable supply can cause downtime, lost data, and costly repairs. This matters to anyone who runs CNC machines, automation lines, or test equipment because every minute of interruption hurts productivity. The 1606-XLS120E XLS Power Supply 120W 24VDC 5A gives you a solid, adjustable source that keeps your gear running smooth and safe.

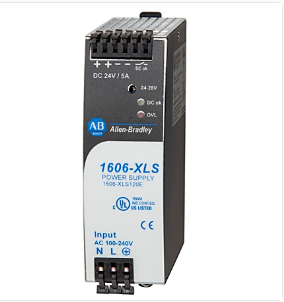

1606-XLS120E XLS Power Supply 120W 24VDC 5A with XLS
Need a power unit that can handle 120 W without overheating? This XLS model delivers 24 V DC at up to 5 A, with a short-term boost for peak loads. It is built for industrial panels, robotics, and any system that cannot afford voltage drop. If your current supply flickers or cannot reach 28 V, the XLS solution steps in and stabilizes the output, protecting your equipment and your schedule.
Usages
The 1606-XLS120E fits into control cabinets for CNC routers, drives motors in conveyor belts, powers LED signage, and supplies test rigs in labs. It works in harsh factories because it accepts 100-240 V AC or 110-300 V DC input. You can also use it in mobile units where space is limited, thanks to its compact size and adjustable voltage range.
Benefits
- Stable 24 V output reduces equipment wear and unexpected stops.
- Adjustable 24-28 V range lets you fine-tune for different machines.
- High 92.7 % efficiency saves energy and lowers operating cost.
- Four-second power boost handles sudden load spikes without tripping.
- Wide input range lets you install it anywhere in the world.
Key Features
- 120 W continuous output power.
- Nominal 24 V DC, adjustable to 28 V.
- 5 A continuous current at 24 V, 4.5 A at 28 V.
- 150 % peak load boost for 4 seconds.
- Input: 100-240 V AC (85-264 V range) or 110-300 V DC.
- Operating temperature from -25 C to +70 C.
- Hold-up time 33-59 ms ensures smooth transition on power loss.
- Power factor of 0.91 for clean grid interaction.
- Compact enclosure fits tight panels.
- Built-in protection against overload and short circuit.
Specifications
| Catalog Number |
1606-XLS120E |
| Output Power |
120 W |
| Output Voltage (Nominal) |
24V DC |
| Output Voltage Range |
24–28V DC (Adjustable) |
| Output Current (Continuous) |
5A @ 24V DC / 4.5A @ 28V DC |
| Power Boost (4 seconds) |
7.5A @ 24V DC (150% peak load) |
| Input Voltage (AC) |
100–240V AC (85–264V range) |
| Input Voltage (DC) |
110–300V DC (88–360V range) |
| Input Frequency |
47–63 Hz |
| Efficiency |
92.7% typical @ 230V AC |
| Operating Temperature |
-25°C to +70°C (Derating above 60°C) |
| Hold-up Time |
33–59 ms typical |
| Power Factor |
0.91 typical |
