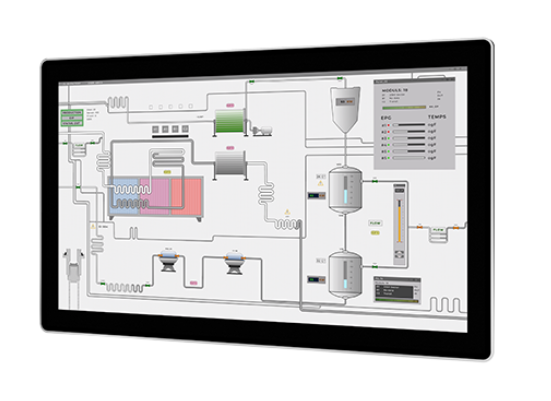

ARISTA 21.5 Inch Panel Mount Thin Client PCAP Touch Panel PC Dual LAN

Imagine a workstation that fits perfectly into a tight control room, offers crystal-clear touch response, and never slows down your daily tasks. The 21.5 Inch Panel Mount Thin Client PCAP Touch Panel PC Dual LAN is a rugged, all-in-one solution designed for industrial and commercial environments. If you struggle with bulky PCs, unreliable connections, or screens that fade in bright light, this panel gives you a compact, reliable interface that stays on and works exactly when you need it.

ARISTA 21.5 Inch Panel Mount Thin Client PCAP Touch Panel PC Dual LAN

Many businesses face the problem of managing multiple devices, tangled cables, and limited space on the factory floor. Those issues cause downtime, higher maintenance costs, and frustrated operators. This thin client solves the problem by combining a high-resolution 1920 1080 display, projected-capacitive touch, and dual Gigabit LAN ports into a single panel that mounts directly into your equipment rack. The result is a clean installation, faster network access, and a screen that stays bright and responsive for years.

Benefits

• Easy panel-mount installation saves space and reduces wiring.
• Projected-capacitive touch works with gloves, ideal for industrial use.
• Dual LAN ensures reliable network redundancy and faster data flow.
• Low power consumption (43 W) lowers electricity costs.
• 50,000-hour backlight life means the screen stays bright for years.

Usages

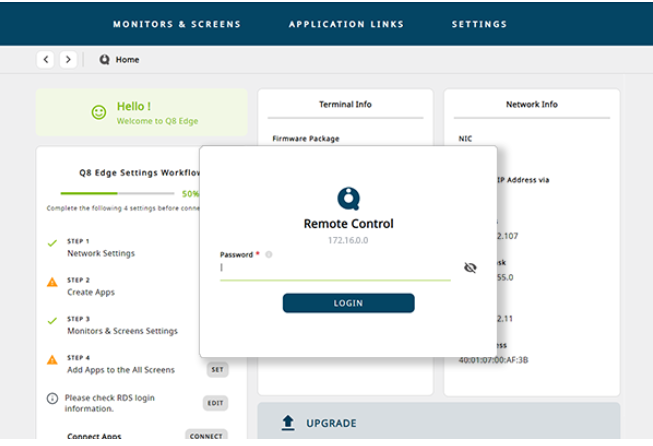

The panel is perfect for factory control stations where operators need quick touch input and clear visuals. It fits well in medical imaging rooms that require a clean, hygienic surface and reliable network links. Retail kiosks benefit from the sturdy NEMA 4/4X bezel and the ability to run web-based applications on the Q8 edge OS. It also works in transportation hubs for ticketing or information displays where space is limited and durability is essential.

Key Features

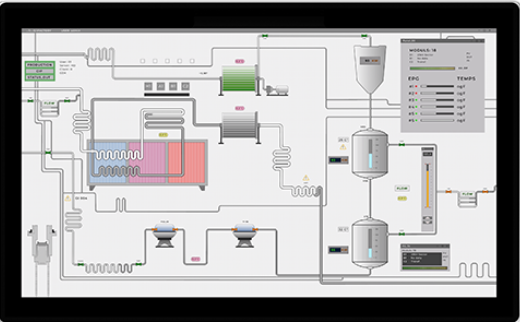

• 21.5 inch LCD with 1920 1080 resolution and 16.7 million colors.
• Projected-capacitive (PCAP) touch interface via USB.
• Intel Celeron J1900 or Atom E3845 processor for smooth thin-client performance.
• 4 GB DDR3 SO-DIMM memory for multitasking.

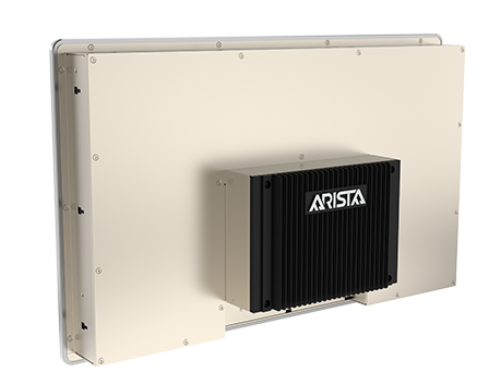

• Two Gigabit Ethernet ports for redundant network connections.

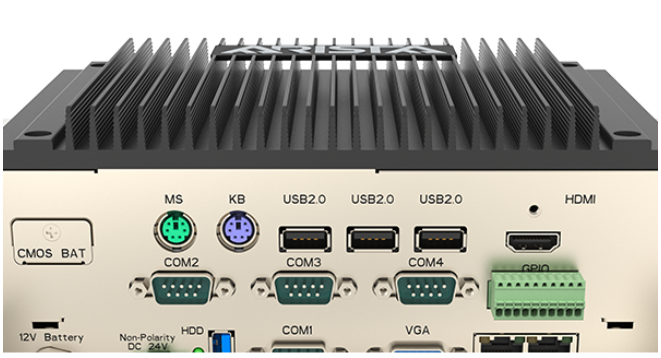

• USB 3.0 and three USB 2.0 ports for peripherals.
• Four selectable RS-232/422/485 serial ports for legacy equipment.
• Mini PCIe 2 expansion slot for future upgrades.
• Aluminum front bezel meets NEMA 4, optional 316L stainless steel for NEMA 4X.
• Operating temperature range 0 ~ 50 C and humidity up to 95 %.
• Power requirement 24 V DC / 1.8 A, recommended 62 W supply.
• Panel-mount design with recommended cutout 20.09 12.13 inch.
