Imagine a production line that never stops because a single bad part goes unnoticed. The 3D Machine Vision Camera Cognex ISL38-300B-SR Blue Laser 2K stops that nightmare. It is a high-speed, high-resolution camera that captures 3-D data with a blue laser. If you need reliable inspection, measurement or guidance, this Machine gives you the eyes you need to catch defects before they cause costly downtime.

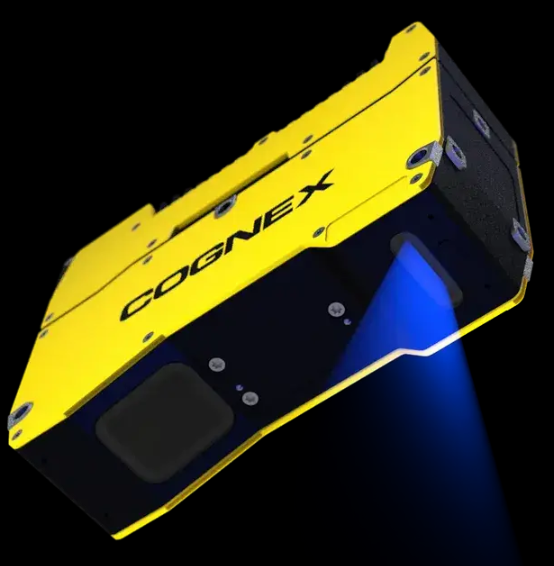

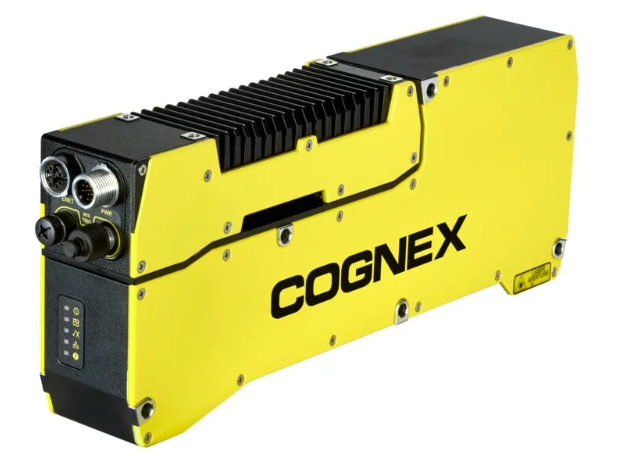

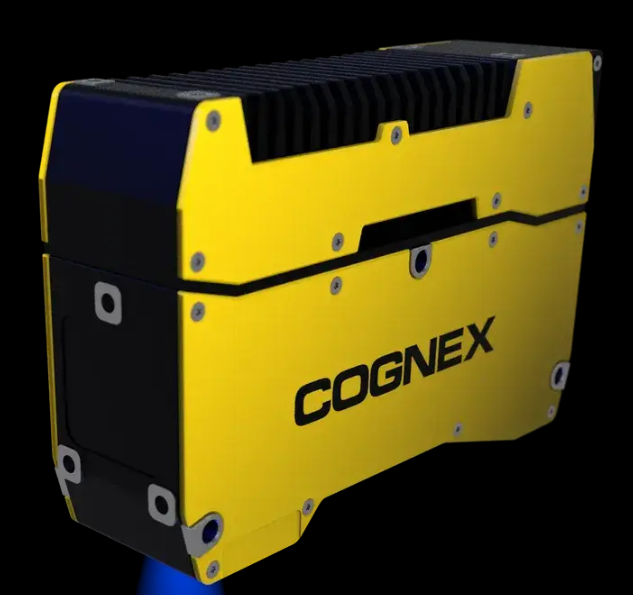

3D Machine Vision Camera Cognex ISL38-300B-SR Blue Laser 2K
Many factories struggle with slow, inaccurate vision systems that miss small variations in shape or position. Those gaps lead to scrap, re-work and lost profit. The problem matters because every missed defect can affect product quality and brand reputation. This camera solves the issue with a 2K resolution sensor, a blue 450 nm laser and built-in Ethernet/IP connectivity. It delivers fast, precise 3-D data so you can make real-time decisions and keep your line moving.
Benefits
- High-resolution 2K images give clear detail for tiny parts.
- Blue laser improves surface contrast, reducing false reads.
- Fast Ethernet communication lets you integrate with existing PLCs.
- Low power use (18 W) saves energy while running 24/7.
- Rugged aluminum housing survives harsh factory environments.
Usages

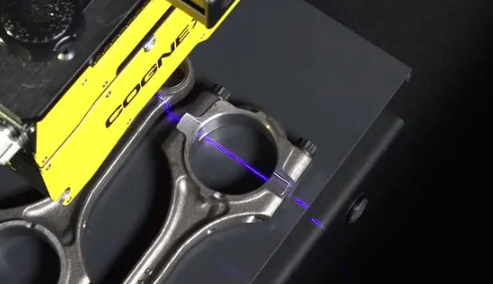

The camera fits perfectly in automated inspection cells for electronics, where component placement must be exact. It works in robotic pick-and-place stations, giving the robot precise depth data to grip objects safely. In automotive assembly, it checks weld seams and panel alignment with sub-millimeter accuracy. It also serves quality labs that need fast 3-D scans of prototypes for reverse engineering. Anywhere you need fast, reliable 3-D measurement, this device can be the core of your solution.
Key Features
- Product ID: ISL38-300B-SR
- 1920 1080 (2K) image resolution
- Blue laser at 450 nm for high contrast
- EB/SS toolset, rules-based tools only
- Trigger, encoder and laser interlock inputs
- Two discrete outputs for signaling

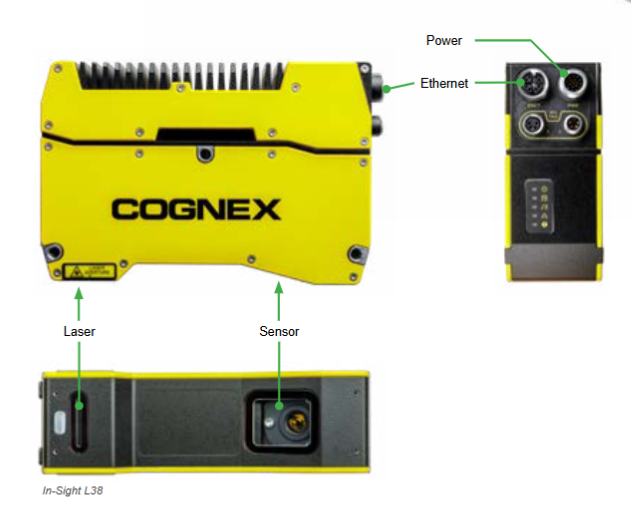

- M12 8-pin X-coded and 12-pin A-coded connectors
- 10/100/1000 Mbps Ethernet port with TCP/IP
- Supports Ethernet/IP, Modbus TCP, OPC/UA, PROFINET and more
- Power consumption 18 W, operating temp 0-45 C
- X resolution: 49.5 m (top), 239.6 m (bottom)
- Z repeatability: 2 m mid-range
Specifications
| Product ID |
ISL38-300B-SR |
| Image Resolution (K) / Points per Profile |
1920 (2K) |
| Laser Color |
Blue (450 nm) |
| Toolset |
EB/SS, rules based tools only |
| Discrete Inputs |
Trigger, differential/single ended encoder, laser interlock |
| Discrete Outputs |
2 Discrete Outputs |
| Connectors |
M12 8 Pin X-Coded, M12 12 Pin A-Coded |
| Network Communications |
IEEE 802.3 TCP/IP Protocol, 10/100/1000, 1 Ethernet port |
| Communication Protocols |
Ethernet/IP, TCP/IP, SLMP, RS-232, SFTP, FTP, Modbus TCP, OPC/UA, PROFINET |
| Average Power Consumption (W) |
18 |
| Height (mm) |
101 |
| Length (mm) |
150.5 |
| Width (mm) |
45 |
| Weight (g) |
940 |
| Max Operating Temperature (°C) |
45 |
| Min Operating Temperature (°C) |
0 |
| Max Storage Temperature (°C) |
70 |
| Min Storage Temperature (°C) |
-20 |
| Materials |
Aluminum |
| Certifications |
RoHS, TÜV SÜD NRTL, CE, FCC, KCC, UK CA |
| Laser Class |
2M |
| X Resolution Top (µm) |
49.5 |
| X Resolution Bottom (µm) |
239.6 |
| Z Resolution Top (µm) |
6.9 |
| Z Resolution Bottom (µm) |
147.5 |
| Z Repeatability Mid (µm) |
2 |
