Maple System 4.3" Advanced HMI + PLC, 480x272 WQVGA, 32 Digital I/O, Panel Mount

Imagine a machine that tells you exactly what it is doing, while also controlling every motor and sensor without a tangled mess of wires. The 4.3" Advanced HMI + PLC, 480x272 WQVGA, 32 Digital I/O, Panel Mount is that solution. It combines a bright touch screen with a full 32-bit PLC in one compact unit. Engineers often struggle with separate screens and controllers that waste space and add cost. This product fixes that problem and lets you see and act on data from a single panel. The keyword quot appears naturally as you read.

Maple Systems Inc. 4.3" Advanced HMI + PLC, 480x272 WQVGA, 32 Digital I/O, Panel Mount

When a machine needs both visual feedback and logic control, many users end up buying two devices. That adds extra cabinets, more wiring, and higher maintenance costs. The problem matters because every extra component can cause downtime and slow production. This all-in-one HMI + PLC removes the need for separate hardware, cuts wiring, and simplifies programming. You get a clear screen, fast processing, and 32 digital I/O points in a single panel-mount design, so you can focus on running your line, not on wiring.

Usages of quot

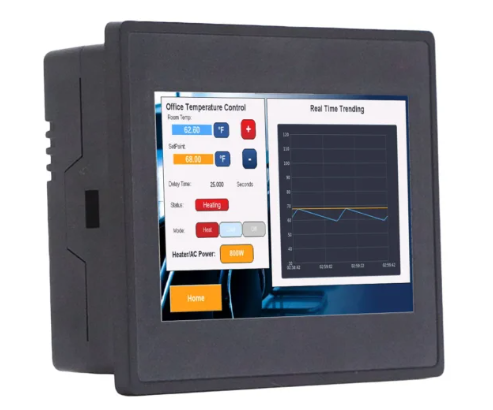

The unit fits on any control panel where space is limited. Use it on a packaging line to show run speed, count parts, and drive conveyors with built-in PLC logic. In HVAC systems it can display temperature set points while managing fans and valves. Water treatment plants benefit from the 32 digital I/O to monitor pumps and alarms from the same screen. Small robotics stations can run motion sequences and see status updates without a separate controller. Its rugged IP66 front makes it ideal for food processing equipment.

Benefits

• Save valuable space with an all-in-one design.
• Reduce wiring cost thanks to integrated I/O.
• Program quickly using MAPware-7000 software.
• Read data easily on a bright 400 cd/m screen.
• Operate reliably in dusty or wet environments.

Key Features

• 32-bit RISC CPU at 528 MHz for fast processing.
• 512 MB RAM and 4 GB flash for ample storage.
• 32 digital I/O points (16 in, 16 out) for flexible wiring.

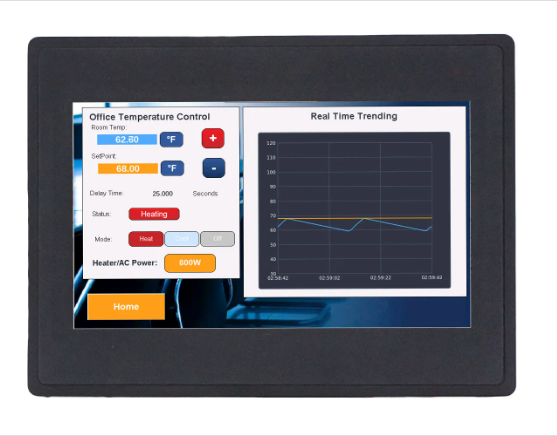

• 4.3" WQVGA (480 272) LED display with 400 cd/m brightness.
• TFT resistive touch screen for easy operator input.

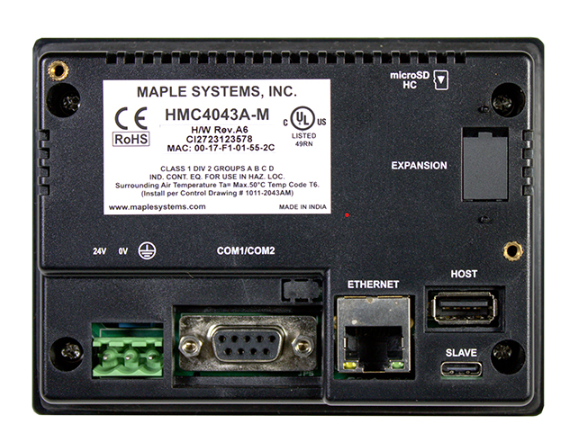

• 10/100 Base-T Ethernet port for network communication.
• USB host (Type A) and client (Type C) for peripherals.
• SD/SDHC slot supporting up to 32 GB for data logging.
• Built-in RTC and 1 GB shared application memory.
• IP66 front panel rating and UL Class 1 Div 2 certification.

Specifications
