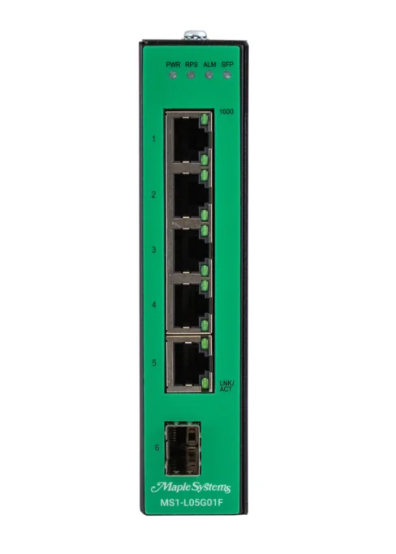

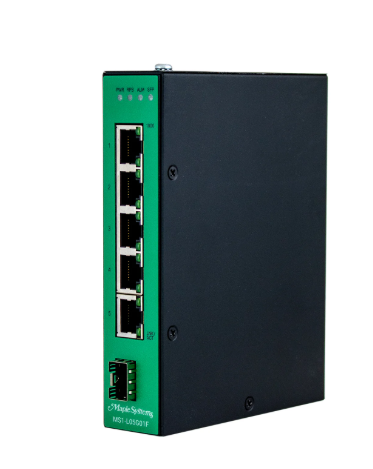

MAPLE SYSTEMS 5 Port Lite Managed Ethernet Switch with SFP Gigabit

Imagine a busy factory floor where data stops because a single network port cant keep up. The 5 Port Lite Managed Ethernet Switch with SFP Gigabit Industrial DIN Rail is built for that exact moment. It gives you five reliable copper ports and one SFP port, so you can connect machines, cameras, and controllers without delay. If you have ever lost production time because of a slow or unstable link, this switch solves the problem and keeps your line moving.

MAPLE SYSTEMS INC. 5 Port Lite Managed Ethernet Switch with SFP Gigabit Industrial DIN Rail

Many small to medium industrial networks suffer from limited ports and lack of management features. Without proper control, traffic can collide, devices may restart, and troubleshooting becomes a nightmare. This switch removes those headaches by offering managed control on each port, auto-negotiation, and a dedicated SFP slot for fiber links. The result is a clear, stable network that adapts to your equipment and protects against downtime.

Usages of Port

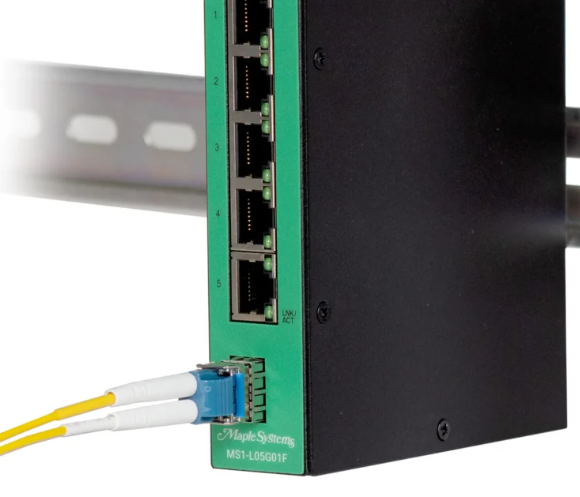

Use the five RJ45 ports to link PLCs, HMI panels, and IP cameras in a production line. The SFP port lets you extend the network over long distances with fiber, perfect for connecting separate buildings or outdoor sensors. Mount the unit on a DIN rail inside a control cabinet for a tidy, space-saving installation. It also works well in small office environments that need reliable gigabit connectivity.

Benefits

• Fast gigabit speeds keep data flowing without bottlenecks.
• Managed features let you monitor and adjust each port easily.
• Redundant power inputs protect against power loss.
• Compact DIN-rail design saves space in tight cabinets.
• Robust metal case resists harsh industrial conditions.

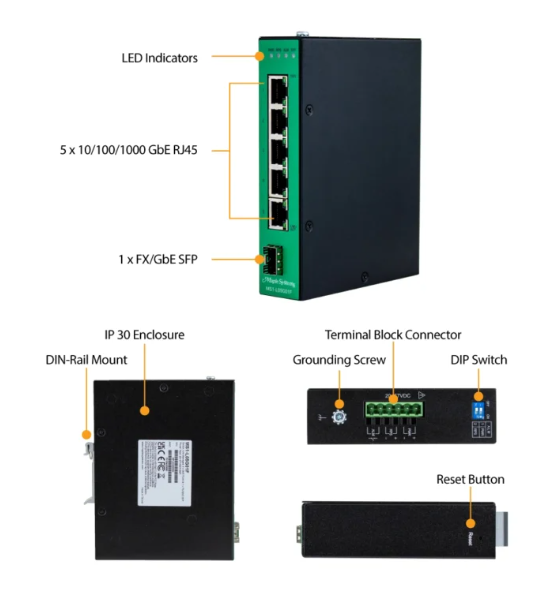

Key Features

• Five 10/100/1000BASE-T copper ports with auto-MDI/MDI-X.
• One Mini-GBIC SFP slot supporting 100/1000 Mbps fiber.
• 12 Gbps switch fabric and 4.1 Mbit packet buffer.
• Per-port flow control and storm control configuration.
• Port isolation, VLAN passthru, and 4094 VLAN IDs support.
• LLDP discovery, topology map, and port mirroring.
• SNMP v1/v2c/v3, syslog, and SNTP for network management.

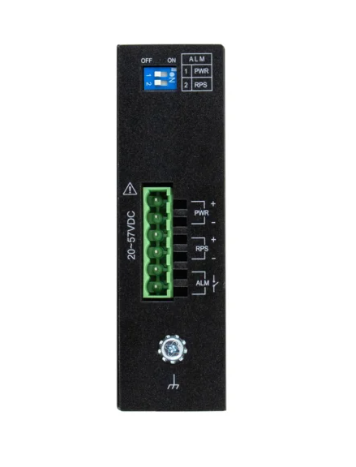

• Redundant 20-57 VDC power with overload protection.
• LED panel shows power, link, activity, and alarm status.
• IP-rated IP30 enclosure, operating from -10 C to 60 C.

Specifications
