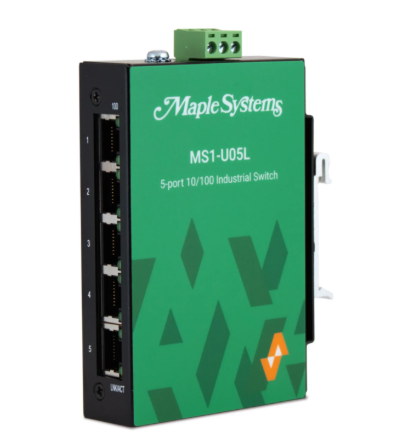

Maple System 5 Port Unmanaged Industrial Network Switch 10/100Mbp DIN Rail Mount

Imagine a factory floor where a single broken link stops the whole line. You need a reliable way to connect several machines without worrying about complex setup. The 5 Port Unmanaged Industrial Network Switch 10/100Mbps RJ45 DIN Rail Mount gives you exactly that. It adds five sturdy Ethernet ports that keep data moving even in harsh environments. If you have devices that need a stable link, this switch solves the problem quickly.

Maple Systems Inc. 5 Port Unmanaged Industrial Network Switch 10/100Mbps RJ45 DIN Rail Mount

Many small to medium industrial networks suffer from limited connectivity and unreliable hardware. When a single port fails, the whole system can halt, causing costly downtime. This switch removes that risk by providing five independent ports that auto-negotiate speed and support MDI/MDI-X, so you never need extra adapters. Its rugged DIN rail mount lets you install it in panels, cabinets, or walls, keeping the network safe from vibration and temperature swings.

Benefits

• Five reliable ports let you link multiple devices without extra hardware.
• Auto-negotiation adjusts speed automatically, so you never set the wrong rate.
• Industrial-grade enclosure protects against dust, shock, and extreme temperatures.
• Easy DIN rail mounting saves space and speeds up installation.
• Low power consumption (3 W) keeps energy costs down.

Usages

Use this switch in a production line to connect PLCs, sensors, and HMIs. It works well in warehouse lighting systems where several cameras need a stable link. You can also place it in a remote sub-panel to join HVAC controllers and building automation devices. Because it runs on 12-48 VDC, it fits into existing power rails without extra converters. The switch is ideal for any small industrial network that demands durability and simple plug-and-play operation.

Key Features

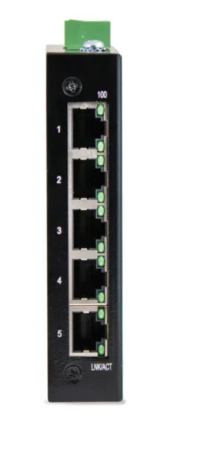

• Five RJ45 copper ports, 10/100 Mbps each.
• Auto-negotiation and MDI/MDI-X support.
• Packet buffer of 448 Kbits for smooth traffic.
• Jumbo frame support up to 1552 bytes.
• Storm and flow control to protect against overload.
• VLAN passthru for up to 4094 VLAN IDs.
• LLDP filtering for network security.

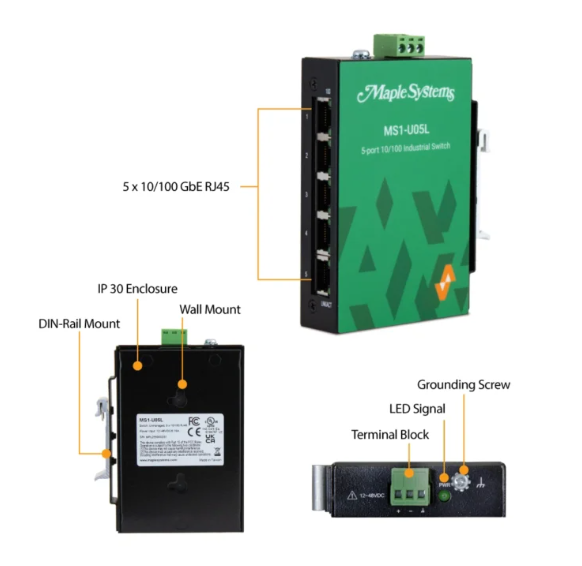

• IP30 rating, black powder-coated aluminum housing.
• Operating temperature from -40 F to 167 F.
• Input voltage range 12-48 VDC with reverse polarity protection.
• UL listed, RoHS compliant, FCC Class B.
• Compact size 23.6 111.5 73.8 mm, weight 180 g.
