PRODUCT CODE: SWHO-007

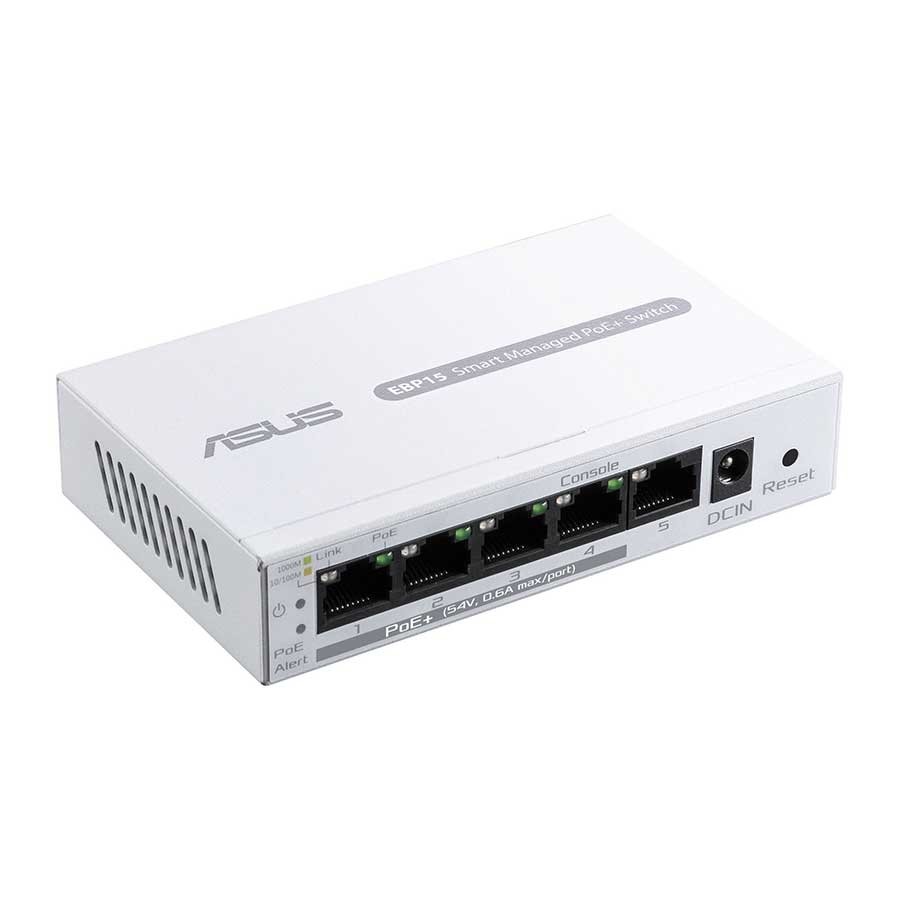

The ASUS ExpertWiFi 5-Port
Smart Managed PoE+ Switch is designed to enhance your network with seamless
power and data delivery for PoE-enabled devices. Featuring 4 PoE+ ports with a
total power budget of 60W, it efficiently powers IP cameras, VoIP phones, and
wireless access points without extra adapters. VLAN support ensures network
segmentation for enhanced security, while QoS prioritizes mission-critical
traffic such as voice and video to prevent lag. IGMP Snooping optimizes
multicast traffic, ensuring smooth video streaming and conferencing.
Additionally, centralized control via the ASUS ExpertWiFi app simplifies
management for effortless network monitoring and optimization.
This PoE+ switch is ideal for
small businesses, smart offices, and surveillance systems requiring reliable
power and data connectivity. IT administrators can utilize VLAN for better
security, QoS for optimized traffic flow, and centralized management for
simplified network operations.
Features
5 x Gigabit Ethernet Ports
4 x PoE+ Compliant Ports (30W)
60W Power Budget
VLAN Support
AiMesh Compatible
Expert WiFi App or Web
Management
Specifications:
Model# |
90IG08D0-MO3B00 |
Port Attributes |
5x 10/100/1000Mbps RJ45 Ports |
AUTO Negotiation/AUTO MDI/MDIX |
|
Standard |
IEEE 802.1p / IEEE 802.1q / IEEE
802.3ab / IEEE 802.3af |
PoE Budget |
60W |
MAC Address |
Up to 8 K |
Buffer Memory |
4 Mbits |
Switching Capacity |
10Gbps |
Packet Forwarding Rate |
7.44Mpps |
Jumbo Frame |
15KB |
Power Supply |
AC input: 100V~240V (50~60 Hz) |
DC output: 54V with 1.25A |
|
LED Indicator |
System power ON/OFF |
PoE Alert |
|
PoE Ports |
Standard: 802.3 af/at compliant |
PoE Ports: Port 1 - Port 4 |
|
Per Port Max: 30W |
|
Management |
Quality of Service |
IGMP Snooping |
|
Port Mirroring |
|
Loop Detection/Prevention |
|
Web-based GUI |
|
ExpertWiFi APP |
|
Software Features |
ExpertWiFi AiMesh Mode |
Standalone Mode |
|
Security |
SSL/TLS |
Product Dimensions |
121 x 75 x 26mm |
