AAEON AIOT-IGWS01 Industrial IoT Gateway Intel Atom x5 2GB 32GB

Imagine a factory floor where data stops at the edge, forcing you to wait for manual checks. The AAEON AIOT-IGWS01 Industrial IoT Gateway Intel Atom x5 2GB 32GB brings real time connectivity to machines, sensors, and controllers. It turns scattered data into instant insight, so you can act before a problem grows. If you struggle with unreliable links or slow data processing, this gateway is the tool that keeps your operation moving.

AAEON AIOT-IGWS01 Industrial IoT Gateway Intel Atom x5 2GB 32GB

Many small and medium plants cannot afford large servers, yet they need a reliable bridge between field devices and cloud services. Without a compact gateway, data packets are lost, latency rises, and maintenance costs climb. The AAEON gateway solves this by offering a rugged, fanless design that runs Windows 10 IoT or Linux, supports Ethernet, serial ports, and optional WiFi or LTE. It also includes anti-vibration engineering and CE/FCC Class A certifications, giving confidence in harsh industrial settings. The compact footprint lets you place it close to sensors, reducing cable length and signal loss.

Usages of AAEON

Use the gateway to collect temperature and vibration data from a production line, then send alerts to a mobile app. Deploy it in a smart building to manage lighting, HVAC, and security sensors from a single point. Install it in a remote oil field to gather pump status and transmit it over LTE to a central dashboard. It works in retail stores for inventory tracking, in agricultural greenhouses for climate control, in a warehouse to link barcode scanners to inventory software, in a water treatment plant to monitor flow meters and control valves, and in traffic management systems to aggregate video feed status for city control centers.

Benefits

• Immediate data visibility reduces downtime.
• Low power draw fits any 5V supply.
• Fanless chassis stays silent in quiet environments.
• Multiple communication ports simplify wiring.
• Optional WiFi or LTE adds flexible network options.

Key Features

• Intel Atom x5-z8350 processor for fast edge computing.
• 2 GB DDR3L-1600 RAM supports multitasking.
• 32 GB eMMC storage for OS and apps.
• One Gigabit Ethernet port for wired networks.
• Four USB 2.0 and one USB 3.0 OTG ports.
• Dual RS-232/422/485 serial ports for legacy devices.
• 6-pin digital I/O block with ADC and GPIO.
• Optional WiFi 802.11


  Specifications

  Category	Specification	Details
  SYSTEM	CPU	Intel® Atom™ x5-z8350 SoC
  	Chipset	Intel® System on Chip
  	Memory	Onboard 2GB DDR3L-1600 memory
  	Storage	32GB eMMC on board
  	OS Support	Microsoft Windows 10 IOT, Ubuntu 16.04, Android 6.0
  CONNECTIVITY	Ethernet	8111G x 1
  	USB	USB 2.0 x 4, USB 3.0 OTG x 1
  	COM	RS-232/422/485 x 2
  	Digital I/O	6-pin block connector x 1 (8-bit ADC x 1, GPIO x 3, GND x 2)
  	Wi-Fi	IEEE 802.11 a/b/g/n/ac (Optional)
  	Bluetooth	BT 4.0 (Optional)
  EXPANSION	Expansion Slots	USB interface for WiFi/BT Module x 1, Mini PCIe for 3G/4G LTE x 1
  	SIM	Micro SIM Socket x 1

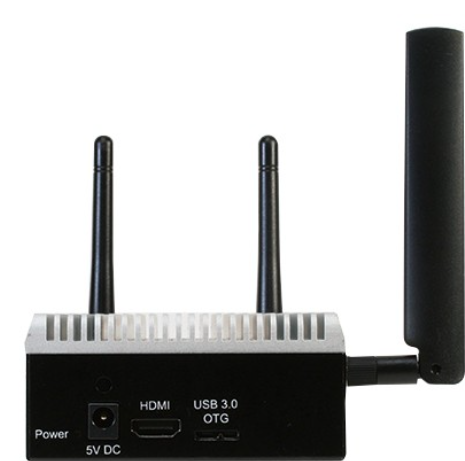

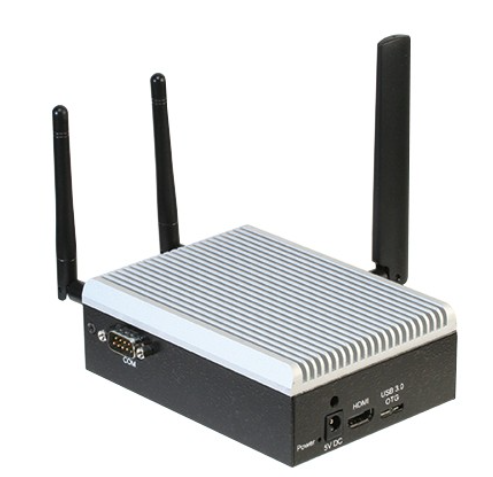

  I/O PLACEMENT	Front I/O	DC connector, Antenna hole, HDMI, USB 3.0 OTG, Power button
  	Rear I/O	COM x 1 (RS-232/422/485), Antenna hole x 2

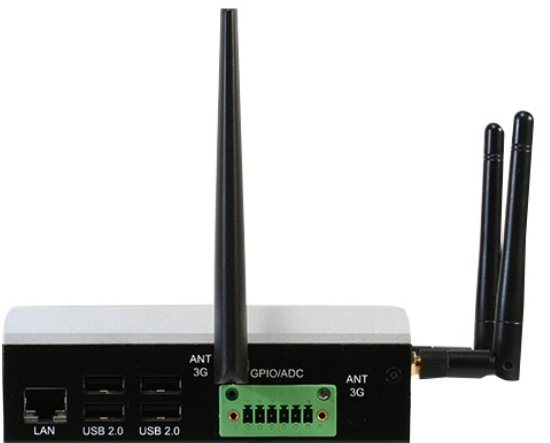

  	Right Side I/O	RJ45, USB 2.0 (Stack) x 2, Antenna hole x 2, 6-pin block connector
  	Left Side I/O	COM x 1 (RS-232/422/485)
  MECHANICAL	Dimensions	5.12” x 3.74” x 1.74” (130mm x 95mm x 44.2mm)

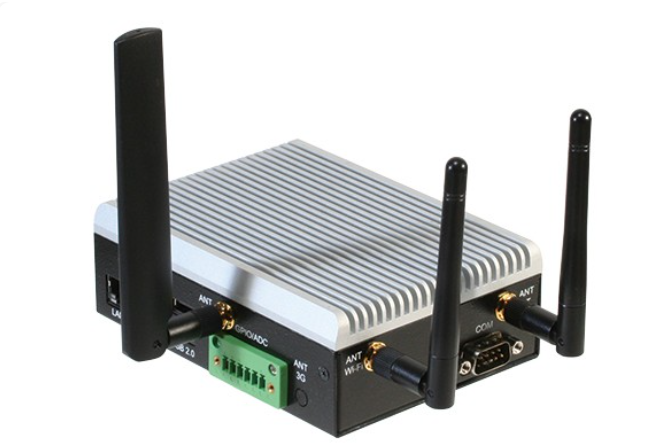

  	Mounting	VESA mount (Standard), DinRail (Optional)
  	Net Weight	5.6lb (2.5kg)
  	Gross Weight	7.8lb (3.5kg)
  ENVIRONMENT	Operating Temp	32°F ~ 122°F (0°C ~ 50°C)
  	Storage Temp	-4°F ~ 158°F (-20°C ~ 70°C)
  	Humidity	0% ~ 90% relative humidity, non-condensing
  	Anti-Vibration	3 Grms / 5 ~ 500Hz / Operation
  	Certification	CE, FCC Class A
  POWER	Requirement	5V DC in
