Tired of computers that overheat, make noise, or fail when the factory gets hot and dusty? The AAEON BOXER-6640-A1-1010 Fanless Box PC gives you a sturdy, silent computer that works in tough industrial settings. It is built for automation, edge computing and machine control, so you can keep production running without surprise breakdowns.

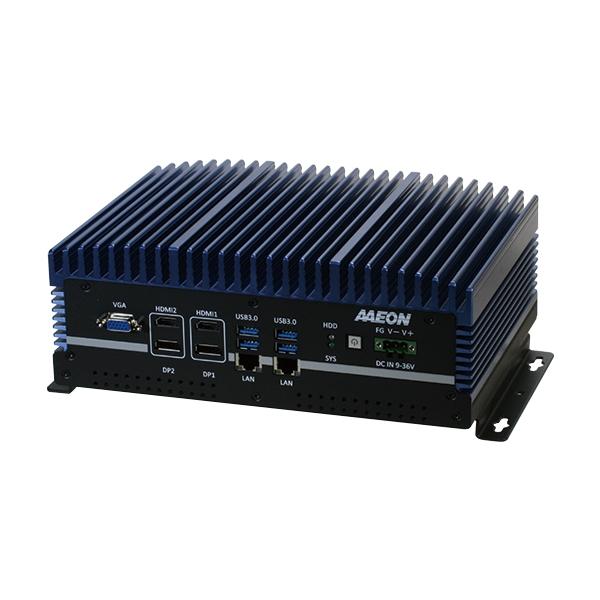

AAEON BOXER-6640-A1-1010 Fanless Box PC Industrial Automation Computer
Factories often struggle with heat, dust and vibration that damage regular PCs. When a controller stops, the whole line can halt, costing time and money. This box PC removes the fan, so there are no moving parts to collect dust or wear out. Its rugged design stays cool even in extreme temperature ranges, giving you reliable performance day after day.
Benefits
- Fan-less design means silent operation and no dust buildup.
- Wide temperature range lets it run in hot or cold plants.
- Dual Ethernet ports provide fast, reliable network connections.
- Supports up to 32 GB DDR4 memory for smooth multitasking.
- Compact size fits easily on walls or inside cabinets.
Usages
Use this computer as a controller for robotic arms on an assembly line. It can collect sensor data in a warehouse and send it to the cloud for analysis. Install it in a packaging machine to manage timing and quality checks. It also works well as a gateway for IoT devices in a smart factory, handling video streams from cameras without overheating.
Key Features
- Intel Core i7, i5 or i3 processors for strong computing power.
- VGA and dual HDMI (Combo DisplayPort) outputs for multiple screens.
- Four USB 3.0 ports for fast peripheral connections.
- Two Gigabit Ethernet ports (Intel I211AT and I219LM).
- DC input range 9 V to 36 V for flexible power options.
- 8-bit digital I/O and RS-232/422/485 ports for machine interfacing.
- Mini-Card slots for extra storage or SIM connectivity.
- Supports both ECC and non-ECC DDR4 SODIMM modules.
- Operating temperature -4 F to 131 F, meeting IEC standards.
- CE and FCC Class A certifications for safety and compliance.
Specifications
| CPU Options |
Intel® Core™ i7-7700T, Quad Core, 2.9 GHz Intel® Core™ i5-7600T, Quad Core, 2.8 GHz Intel® Core™ i3-7300T, Dual Core, 3.5 GHz Intel® Core™ i7-6700TE, Quad Core, 2.4 GHz Intel® Core™ i5-6500TE, Quad Core, 2.3 GHz Intel® Core™ i3-6100TE, Dual Core, 2.7 GHz |
| Chipset |
Intel® H110 |
| System Memory |
DDR4 SODIMM socket (double deck) × 2 Supports 1866/2133MHz DDR4, up to 32GB Supports un-buffered ECC / non-ECC SODIMM |
| Display Interface |
VGA × 1, HDMI × 2 (Combo DP × 2) – A1 SKU VGA × 1 – A2 SKU |
| Storage Devices |
mSATA, SATA HDD/SSD |
| Ethernet |
Intel® I211AT × 1, Intel® I219LM × 1 |
| Front I/O Interface |
2-pin Remote power on/off connector Audio × 1 (MIC-in, Line-out) USB 2.0 × 3 DB-9 × 3 for RS-232 8-bit DIO DB-9 × 1 for RS-232/422/485 with auto flow control Power ON/OFF switch × 1 3-pin 9~36V DC Power input (+, -, GND) |
| Rear / Display I/O |
VGA × 1 HDMI × 2 (Combo DP × 2) USB 3.0 × 4 RJ-45 × 2 for GbE (I211AT × 1, I219LM × 1) |
| Expansion |
Full-size Mini-Card × 1 (PCI-E + USB, w/ SIM slot) Full-size Mini-Card × 1 (mSATA + USB) LPC × 1 |
| Indicators |
Power LED HDD active LED |
| OS Support |
Windows® 10 64-bit (Kabylake, Skylake CPU) Windows® 8.1 64-bit (Skylake CPU only) Windows® Embedded 8 Standard 64-bit (Skylake CPU only) |
| Mounting |
Wallmount |
| Dimensions (W × H × D) |
10.39" × 3.8" × 7.33" (264 mm × 96.4 mm × 186.2 mm) |
| Gross Weight |
12.76 lb (5.8 kg) |
| Net Weight |
9.9 lb (4.5 kg) |
| Operating Temperature |
-4°F ~ 131°F (-20°C ~ 55°C), according to IEC68-2-14 with 0.5 m/s AirFlow |
| Storage Temperature |
-49°F ~ 176°F (-45°C ~ 80°C) |
| Storage Humidity |
5% – 95% @ 40°C, non-condensing |
| Anti-Vibration |
2 Grms / 5~500Hz / operation – SSD 1 Grms / 5~500Hz / operation – HDD |
| Certifications |
CE / FCC Class A |
| Power Supply / Input |
3-pin Phoenix DC Input 9~36V |
