Need a reliable way to step down 230 V mains to a safe 24 V for your control panels? The ABB DIN Rail 25W 230V to 24V Industrial Isolation Transformer does exactly that. It isolates the low-voltage side from the high-voltage source, protecting sensitive devices and keeping your workspace safe. If you have been worrying about voltage spikes or accidental contact, this transformer gives you the protection you need.

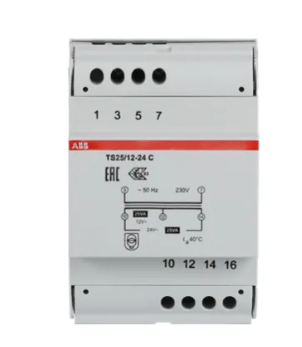

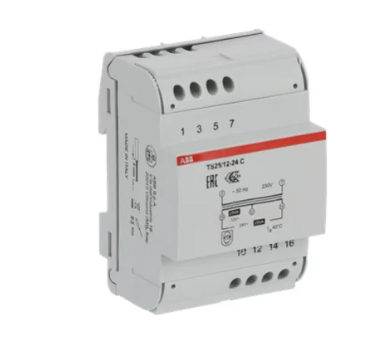

ABB DIN Rail 25W 230V to 24V Industrial Isolation Transformer
Many factories and workshops struggle with noisy power lines that can damage electronics. The problem becomes critical when a single fault shuts down an entire line. This transformer solves the issue by providing a clean, isolated 24 V output that meets the power needs of small circuits. It fits neatly on a DIN rail, so you save space and install it quickly. With ABBs proven design, you get a stable supply and peace of mind.
Usages of ABB
Use this unit in control cabinets for PLCs, sensor networks, and motor starters. It works well in automation lines where you need a safe 24 V for relays and indicator lights. It is also ideal for HVAC control boards, building management systems, and any application that requires a reliable isolated power source. The DIN-rail mounting lets you add it to existing panels without rewiring.
Benefits
- Protects low-voltage equipment from high-voltage spikes.
- Reduces wiring complexity with built-in DIN-rail mount.
- Provides a stable 24 V output for sensitive electronics.
- Lightweight design makes handling and installation easy.
- Meets industrial standards for safety and reliability.
Key Features
- Power rating: 25 W.
- Primary voltage: 230 V.
- Secondary voltage: 24 V.
- Five isolated output terminals.
- DIN-rail mounting for compact installation.
- Screw termination for secure connections.
- Operating frequency range: 50 Hz - 60 Hz.
- Temperature range: 10 C - 40 C.
- Dimensions: 85 mm 70 mm 120 mm.
- Weight: 0.95 kg.
- Fail-safe bell transformer design.
- Built by ABB, a trusted name in industrial power.
Specifications
| Brand |
ABB |
| Series |
TSC |
| Product Type |
Bell Transformer |
| Modular Transformer Type |
Fail Safe Bell |
| Power |
25W |
| Primary Voltage |
230 V |
| Secondary Voltage |
24 V |
| Number of Outputs |
5 |
| Mount Type |
DIN Rail |
| Termination Type |
Screw |
| Length |
85mm |
| Width |
70 mm |
| Depth |
120mm |
| Weight |
0.95kg |
| Min Operating Frequency |
50Hz |
| Max Operating Frequency |
60Hz |
| Min Operating Temperature |
10°C |
| Max Operating Temperature |
40°C |
| Standards/Approvals |
No |
