Are you tired of using outdated and inaccurate battery testing methods? Do you struggle to find a reliable and efficient way to test your batteries? Look no further than the ABBIN LBT21084uC-5V5A 8-Ch, 24 bit Laboratory Battery Tester. This advanced testing device is designed to provide accurate and reliable results, making it an essential tool for any laboratory or research setting. With its 8-channel design and 24-bit resolution, this tester can handle even the most demanding battery testing applications. Whether you're working with small batteries or large industrial cells, the ABBIN LBT21084uC-5V5A has the precision and accuracy you need to get the job done.

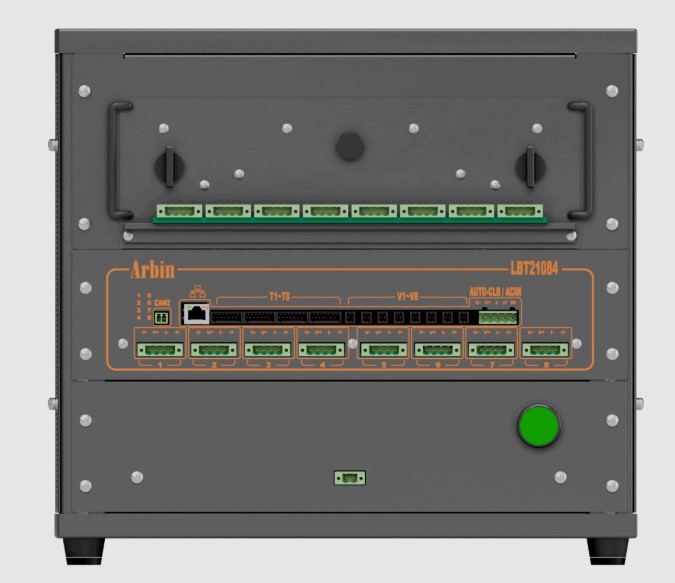

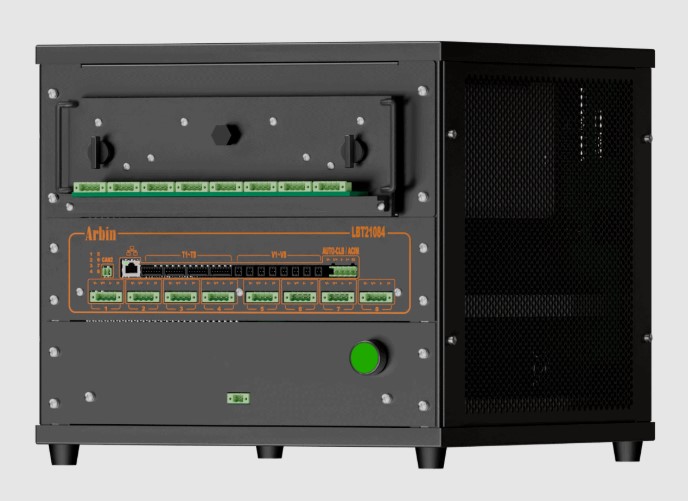

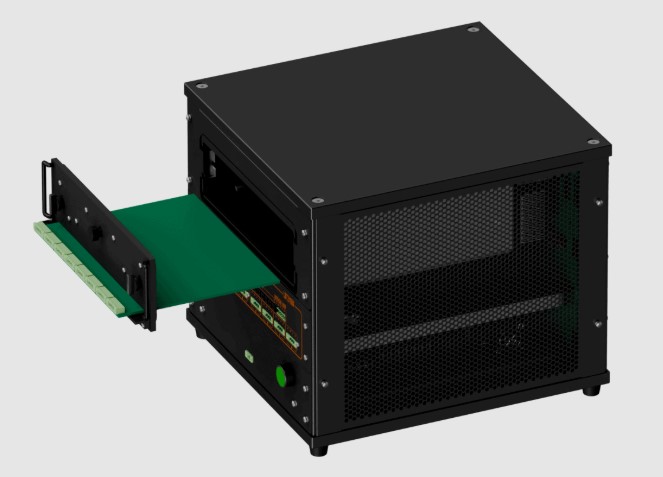

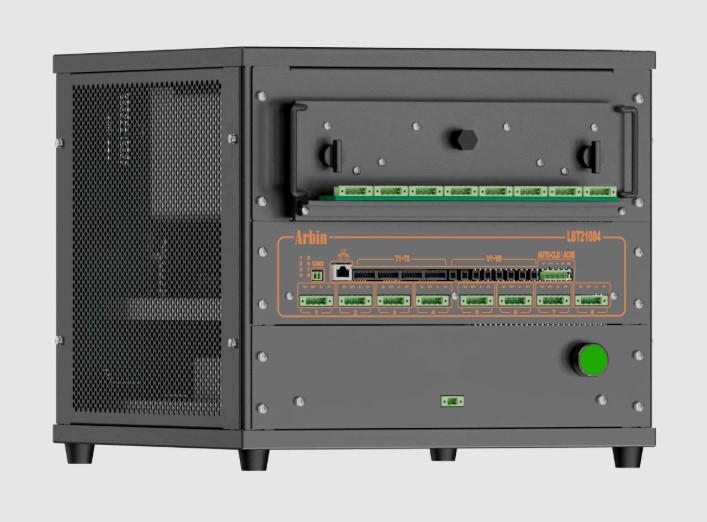

ABBIN LBT21084uC-5V5A 8-Ch, 24 bit Laboratory Battery Tester
The ABBIN LBT21084uC-5V5A 8-Ch, 24 bit Laboratory Battery Tester solves the problem of inaccurate and inefficient battery testing. This problem matters to users because it can lead to faulty batteries being used in critical applications, which can have serious consequences. The ABBIN LBT21084uC-5V5A provides a clear solution by offering a high-precision testing device that can handle a wide range of battery types and sizes. With its advanced features and user-friendly interface, this tester makes it easy to get accurate and reliable results, giving users the confidence they need to make informed decisions.
Key Features
- 8-channel design for efficient testing of multiple batteries
- 24-bit resolution for high-precision testing
- Voltage range of 0V to 5V
- Current ranges of 5/0.5/0.02/0.001A
- Measurement resolution of 24-bit
- Measurement and control precision of +/-0.008% FSR
- Input impedance of 100G Ohm
- Rise time of 100us
- Built-in temperature control with 8 channels
- Accuracy of +/-0.5
Specifications
| Laboratory Battery Tester |
|
| Model |
LBT21084uC-5V5A |
| Hardware |
|
| Number of Channels |
8CH |
| Voltage Range |
0V - 5V |
| Current Ranges |
5/0.5/0.02/0.001A |
| Measurement Resolution |
24bit |
| Measurement & Control Precision |
+/-0.008% FSR |
| Measurement & Control Accuracy |
+/-0.01% FSR |
| Input Impedance |
100G Ohm |
| Rise Time (10%-90%) |
100us |
| Built-in Temperature |
|
| Number of Channels |
8CH |
| Type |
PT100 |
| Range |
-80 ℃ ~ 200 ℃ |
| Accuracy |
+/-0.5 ℃ |
| Chamber (if equipped) |
|
| Chamber Quantity |
1 Chamber with 8 cell fixtures |
| Temperature Range |
[Ambient-10℃] to 60℃ |
| Temperature Space Variation |
+/-1.5℃ |
| Temperature Control Stability |
<+/-0.5℃ |
| Time |
|
| Data Aquisition Rate |
Regular mode: up to 1kHz, Burst Mode: up to 16kHz |
| Data Sample Rate |
Regular mode: up to 1kHz, Burst Mode: up to 16kHz |
| Time Resolution |
100us |
| Time Accuracy |
<20ppm, accumulated error less than 1.7s |
| General |
|
| Input Voltage |
110~240VAC |
| Chassis Size (W x D x H) |
16" x 17" x 16" |
