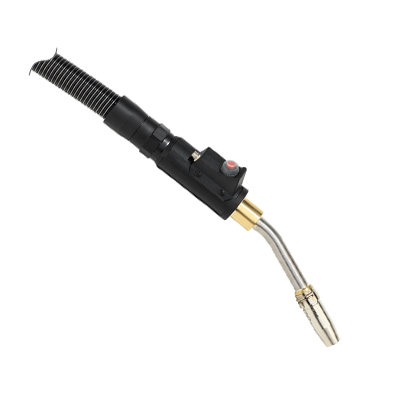

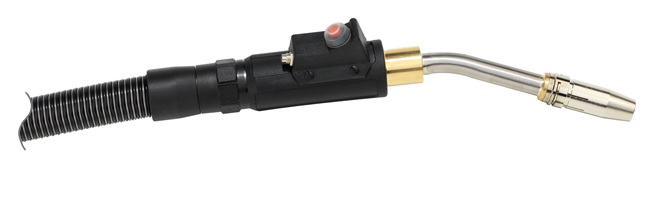

Powerful, reliable & economical
The “ROBO Standard” torch series provides maximum reliability and is the optimum choice for robot welding cells with a low degree of automation. Their mechanical design makes the sturdy torches particularly crash-resilient, thus reducing downtimes and maintenance costs to a minimum.
In addition, the excellent cooling performance of the torches means they guarantee high service lives for the wear parts with reduced spatter adhesion.
As standard, the welding torch system has an integrated airblast function, trigger for automatic wire feed and connection modules for the robot mount CAT3 PRO.
“ROBO Standard” torches have been in permanent use in tough industrial applications for many years – proving their worth thousands of times over.
Advantages that speak for themselves:
- Technically matured and 100% reliable
- Water-cooled up to 600 A (CO2)
- Gas nozzle holder (with 650 TS) cooled separately
- Integrated airblast function
- Simple installation and handling
Specifications:
| Technique |
MIG-MAG |
| Cooling mechanism |
water-cooled |
| Other characteristics |
robotic, automated |
| Intensity |
400 A, 450 A |
| Rating |
450 A CO2
400 A Mixed gases M 21 (EN ISO 14175)
|
| Duty cycle |
100 % |
| Wire/electrode diameter Min. |
0.8 mm (0.03 in) |
| Wire/electrode diameter Max. |
1.6 mm (0.06 in) |
