Many factories need a small computer that can run control software without taking up space or needing a fan. When the controller overheats or cannot talk to many devices, production stops and costs rise. The Advantech AMAX-5570E-0100X6A solves this by giving you a powerful quad-core CPU, plenty of memory, and four gigabit Ethernet ports in a fan-less, DIN-rail package. This keeps your lines running smoothly and saves you time and money.

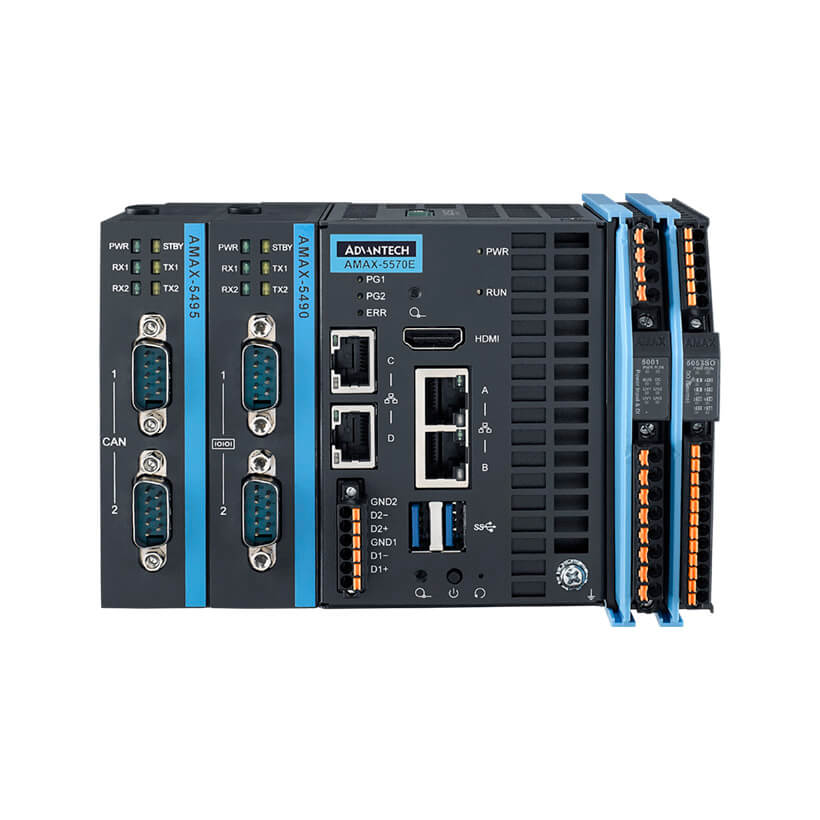

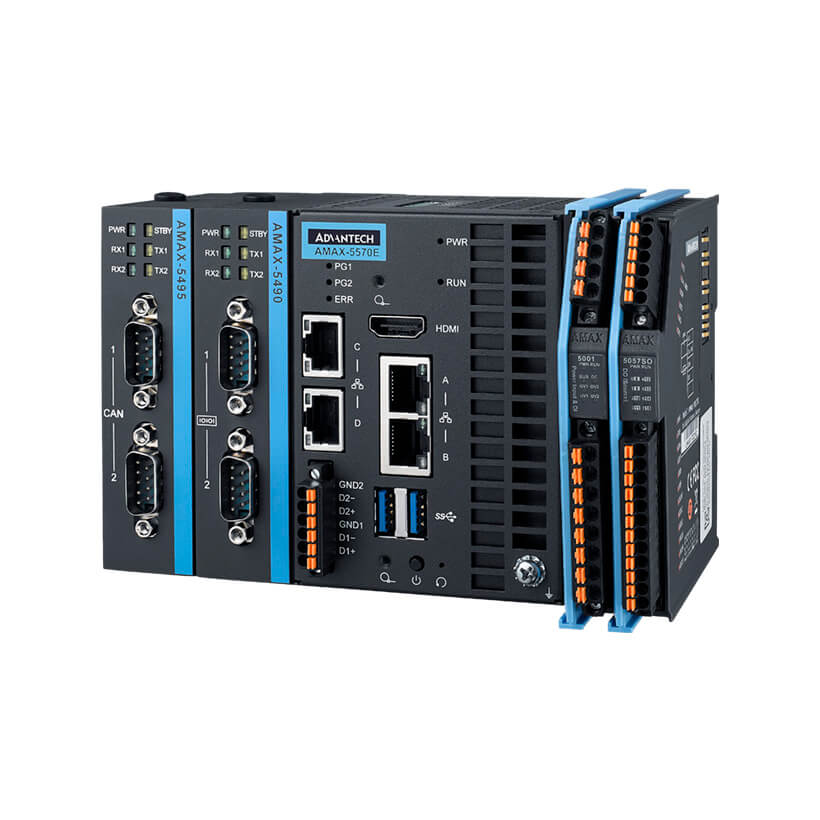

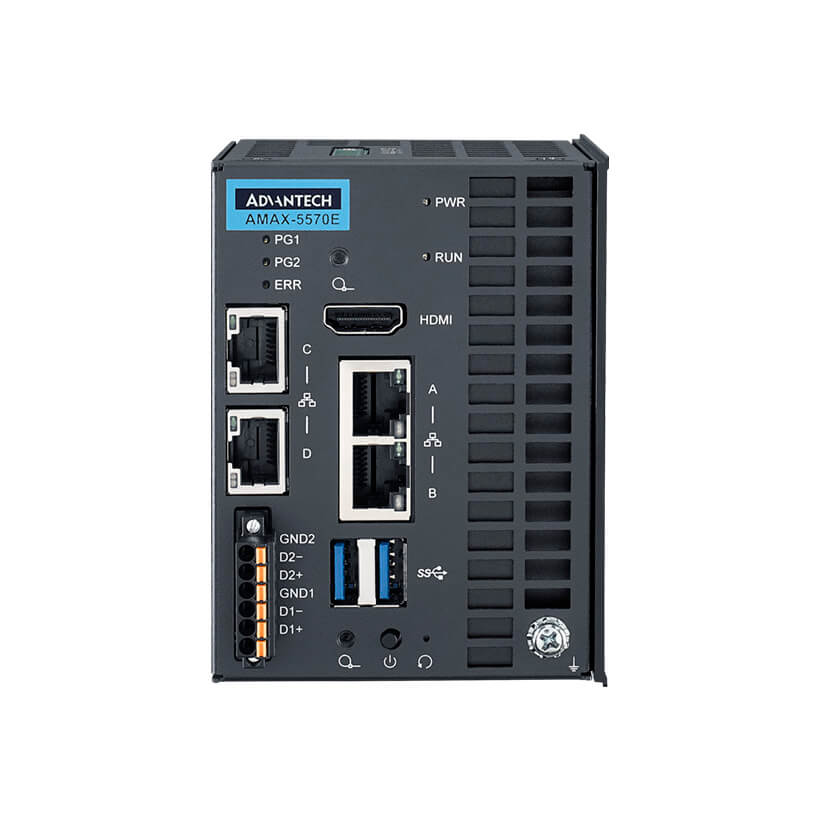

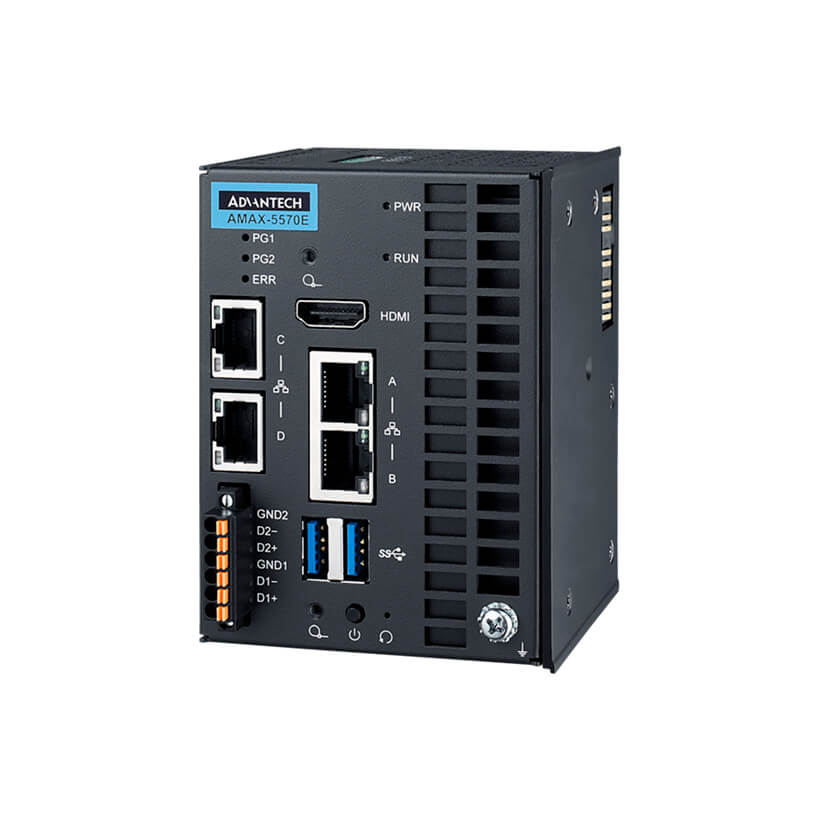

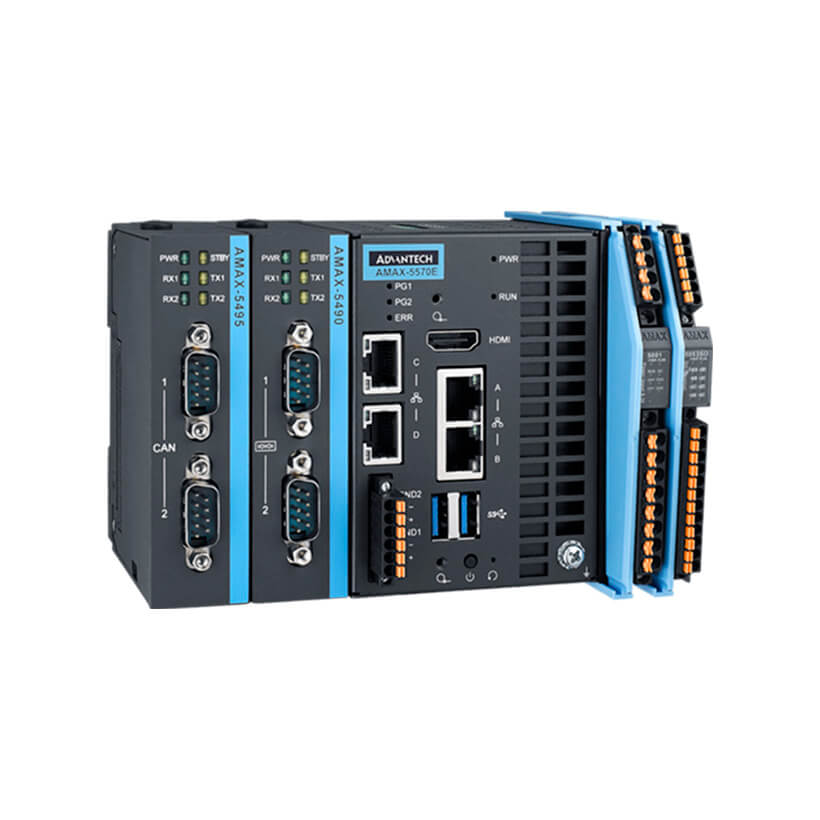

Advantech AMAX-5570E-0100X6A, 1.5GHz Quad-Core, IP20 Automation Controller with Advantech
Imagine a controller that fits in the same space as a power supply but can run Windows 10 or Linux, handle graphics, and connect to four networks at once. That is what this Advantech controller does. It is built for industrial automation where reliability matters. If you have machines that need fast data exchange, real-time monitoring, or remote updates, this controller gives you the speed and connectivity you need without the hassle of fans or bulky enclosures.
Key Features
- Intel Atom x6414E Quad-Core, 1.5 GHz CPU
- 4 GB DDR4 system memory
- 64 GB eMMC storage plus mSATA slot
- Intel HD Graphics 620 with HDMI output
- 4 10/100/1000 Mbps Gigabit Ethernet ports
- 24 VDC 10 % power input
- Passive cooling, fan-less operation
- Aluminum housing with steel reinforcement
- DIN-rail mounting for easy installation
- IP20 protection, -20 C to 60 C operating range
- CE, FCC Class A, UL 61010 certifications
- Supports Windows 10 LTSC and Linux operating systems
Specifications
| Processor |
|
| CPU |
Intel® Atom® x6414E Quad-Core, 1.5 GHz |
| Memory |
|
| System Memory |
1 × DDR4 with 4GB |
| Networking |
|
| LAN Ports |
4 × 10/100/1000 Mbps Gigabit Ethernet |
| Power |
|
| Power Input |
24 VDC ±10% |
| Storage |
|
| Storage |
1 × 64 GB eMMC, 1 × mSATA (shared with mPCIe) |
| Graphics & Display |
|
| Graphics Engine |
Intel® HD Graphics 620 |
| Video Output |
HDMI |
| Operating System |
|
| OS Support |
Microsoft® Windows 10 LTSC, Linux |
| Mechanical |
|
| Enclosure |
Aluminum Housing, Steel |
| Mounting |
DIN-Rail |
| Cooling |
Passive Cooling (Fanless) |
| Weight |
0.55 kg (1.21 lb) |
| Environmental |
|
| Ingress Protection |
IP20 |
| Operating Temperature |
-20°C to 60°C (-4°F to 140°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity |
10% to 95% RH (Non-Condensing) |
| Vibration Protection |
2 Grms, Random |
| Shock Protection |
50 G, Half-Sine |
| Compliance |
|
| Certifications |
CE, FCC Class A, UL 61010 |
