Imagine a factory line that stops because a tiny computer cant keep up. The Advantech ARK-1222-S5A1 gives you a rugged, fast, and low-power brain that runs your automation, digital signage, or edge-AI tasks without missing a beat. It solves the frustration of frequent crashes and slow response times, letting you keep production moving and customers happy. Its compact size fits into tight spaces, and the built-in DDR5 memory makes data flow smooth. If you need reliable performance in harsh conditions, this embedded PC is the answer.

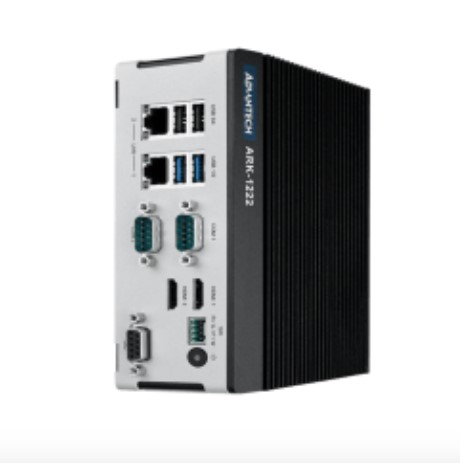

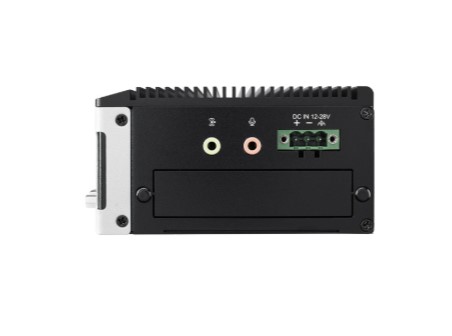

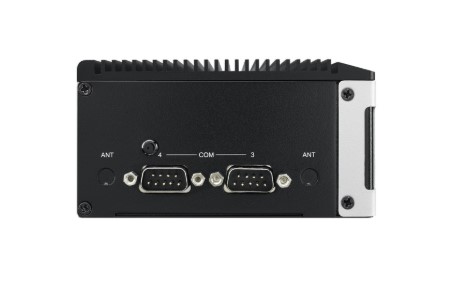

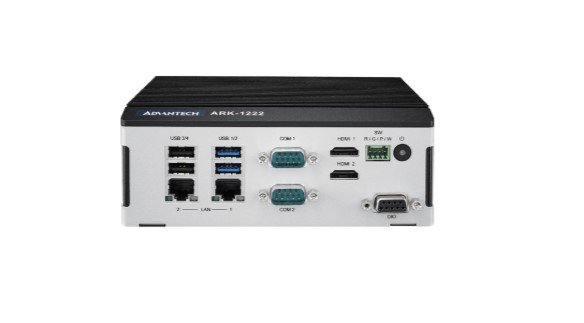

Advantech ARK-1222-S5A1, Intel Atom x7433RE, DDR5 4800 MHz Embedded PC
Many industrial projects suffer from outdated processors that cannot handle modern data streams. When a system lags, you lose productivity and risk costly downtime. The Advantech ARK-1222-S5A1 replaces those weak nodes with a 4-core Intel Atom x7433RE, 1.5 GHz speed and DDR5 4800 MHz memory, delivering the compute power you need while staying energy-efficient. Dual HDMI, dual Gigabit Ethernet and multiple I/O ports give you the connectivity to integrate quickly and keep your operation running.
Key Features
- Intel Atom x7433RE, 4-core, 1.5 GHz processor.
- DDR5 4800 MHz memory, up to 16 GB built-in.
- Two HDMI outputs for dual-display setups.
- Two Intel i226 GbE ports, 10/100/1000/2500 Mbps, Wake-on-LAN.
- Four RS-232/422/485 serial ports with auto flow control.
- USB 3.2 (2) and USB 2.0 (2) for fast peripheral connections.
- Mini PCIe slot, optional CAN bus, and dual M.2 slots (2230 E key, 2280 B key).
- TPM 2.0 security and 255-level watchdog timer.
- Supports Windows 10/11 IoT Enterprise LTSC and Ubuntu 24.04.
- Aluminum housing with DIN-rail, wall or VESA mounting options.
Specifications
| Processor |
|
| CPU Options |
Intel Atom® x7433RE |
| Core Number |
4 |
| Frequency |
1.5 GHz |
| BIOS |
AMI EFI 256 Mbit |
| Memory |
|
| Technology |
DDR5 4800 MHz |
| Max Capacity |
16 GB built-in |
| Socket |
1 x 262-pin SO-DIMM |
| ECC Support |
No |
| Graphics |
|
| Chipset |
Integrated Graphics |
| HDMI |
2 |
| Dual Display |
HDMI1 + HDMI2 |
| Ethernet |
|
| Controller |
2 |
| LAN1 |
10/100/1000/2500 Mbps Intel i226 GbE, support Wake On LAN |
| LAN2 |
10/100/1000/2500 Mbps Intel i226 GbE, support Wake On LAN |
| Audio |
|
| Main System |
Realtek ALC888S, High Definition Audio, Line-out, Mic-in |
| I/O Interface |
|
| Serial Port |
4 x RS-232/422/485 port with auto flow control |
| USB Interface |
2 x USB 3.2, 2 x USB 2.0 |
| GPIO |
8-bit |
| Expansion |
|
| Mini PCI Express |
1 |
| CAN Bus |
2 ports (by optional cable) |
| Mini PCIe #1 |
1 x Full-size |
| M.2 |
1 x M.2 2230 E key and 1 x M.2 2280 B key with nano SIM holder |
| Others |
|
| TPM |
TPM 2.0 |
| Watchdog Timer |
255 levels timer interval, setup by software |
| Storage |
|
| mSATA |
1 x Full-size (support either mSATA or miniPCIe) |
| NVMe |
1 x PCIe x2 (Share with M.2 2280 B key) |
| Software Support |
|
| Microsoft Windows |
Windows 10/11 IoT Enterprise LTSC |
| Linux |
Ubuntu 24.04 |
| Power |
|
| Power Type |
AT/ATX |
| Input Voltage |
12 ~ 28 VDC |
| Power Adaptor |
AC to DC, 90W (Optional) |
| Mechanical |
|
| Construction |
Aluminum housing |
| Mounting |
DIN-Rail/Wall/VESA Mounting Kits (Optional) |
| Dimensions |
60 x 158 x 114 mm (2.34” x 6.22” x 4.49”) |
| Weight |
0.9 kg |
| Environment |
|
| Relative Humidity |
95% @ 40°C (non-condensing) |
| Vibration During Operation |
With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Operational Temperature |
-40 ~ 70 °C (-40 ~ 158 °F) with 0.7 m/s air flow
|
| Shock During Operation |
With SSD/mSATA: 30G |
| Storage Temperature |
-40 ~ 85°C (-40 ~185°F) |
| Certification |
|
| EMC |
CE/FCC Class B, CCC, BSMI, UKCA |
| Safety Certifications |
CB, UL, CCC, BSMI, UKCA |
