Many factories and outdoor sites need a computer that never stops, even when dust, heat or vibration are present. Traditional PCs with fans can overheat, make noise and require regular cleaning, which adds cost and downtime. The Advantech ARK-6322 Fanless Industrial PC Intel J1900 Quad Core removes those worries. Its solid-state design keeps the system cool, quiet and reliable, so you can focus on production instead of hardware maintenance.

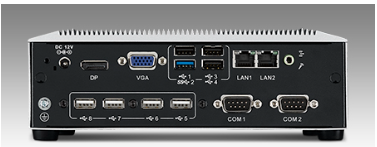

Advantech ARK-6322 Fanless Industrial PC Intel J1900 Quad Core with Advantech
Imagine a tiny computer that fits in a wall slot, runs without a fan and still delivers the power of a quad-core processor. That is what this Advantech model offers. It is built for industrial PC control, digital signage, and edge computing where space is tight and reliability is critical. If you have been frustrated by overheating or noisy fans in harsh settings, this fanless PC gives you a clean, low-maintenance solution that works day and night.
Usages
The ARK-6322 can be mounted on a wall or VESA bracket in a factory control panel. It is ideal for kiosk displays in malls, for monitoring stations in power plants, and for remote sensors in transportation hubs. You can also use it as a thin client in a retail environment or as a gateway for IoT devices that need stable networking and multiple serial ports.
Benefits
- No fan means silent operation and no dust buildup.
- Low power draw reduces energy cost and heat output.
- Compact size saves space in crowded panels.
- Robust aluminum case survives vibration and shock.
- Multiple I/O ports simplify connection to sensors and displays.
Key Features
- Intel Celeron J1900 Quad Core processor, up to 2.41 GHz.
- 4 CPU cores with 2 MB L2 cache for smooth multitasking.
- Dual-channel DDR3L memory, up to 8 GB.
- Intel Gen 7 graphics, shared VRAM up to 224 MB.
- Two display outputs: 1 DP and 1 VGA for dual screen.
- Two Gigabit Ethernet ports for reliable network redundancy.
- Six serial ports (five RS-232, one RS-232/422/485) for industrial devices.
- Eight USB ports, including one USB 3.0 for fast data transfer.
- Mini-PCIe slots for optional mSATA storage or wireless modules.
- One mSATA slot and one 2.5"/3.5" SATA bay for flexible storage.
- Operating temperature range 0 ~ 50 C, storage range -40 ~ 85 C.
- CE, FCC Class A, UL and other certifications for global compliance.
Specifications
| Processor |
CPU |
Intel Celeron Processor J1900 Quad Core |
| |
Core Number |
4 |
| |
L2 Cache |
2 MB |
| |
Max Speed |
2.0 GHz, Turbo Boost up to 2.41GHz |
| |
BIOS |
AMI 16 Mbit SPI (Supports 64-bit/32-bit OS) |
| Memory |
Technology |
Dual channel DDR3L 1333MHz SDRAM |
| |
Max. Capacity |
8 GB |
| |
Socket |
2 x 204-pin SO-DIMM |
| |
ECC Support |
No |
| Graphics |
Controller |
Intel Gen 7 Graphics; GPU Frequency: 688 MHz |
| |
VRAM |
Shared system memory up to 224 MB SDRAM |
| |
Display Ports |
1 x DP, 1 x VGA |
| |
Dual Display |
VGA + DP |
| Audio |
Main System |
Realtek ALC892, HD Audio, Line-out, Mic-in |
| Ethernet |
LAN 1 & 2 |
2 x 10/100/1000 Mbps RTL8111E GbE |
| I/O Interface |
Serial Ports |
6 total (5 x RS-232, 1 x RS232/422/485) |
| |
USB Ports |
8 total (1 x USB 3.0, 7 x USB 2.0) |
| |
GPIO |
8-bit |
| Expansion |
Mini PCIe #1 |
Full-size (supports mSATA / WWAN) |
| |
Mini PCIe #2 |
Half-size (supports WLAN) |
| Storage |
mSATA |
1 x mSATA (shared with mini-PCIe slot) |
| |
2.5" / 3.5" Bay |
1 x SATA Bay (max height 26.1mm) |
| Software |
Microsoft Windows |
Windows 10, 8, 7, WES8, WES7 |
| |
Linux |
Supported by project |
| Power |
Type & Input |
ATX / 12 VDC |
| |
Consumption |
Typical: 15.7 W / Max: 24.7 W |
| Mechanical |
Construction |
Aluminum housing |
| |
Dimensions |
200 x 64 x 200 mm |
| |
Weight |
2.0 kg |
| |
Mounting |
Wall or VESA mounting kit (optional) |
| Environment |
Operating Temp |
0 ~ 50° C (varies by storage type) |
| |
Storage Temp |
-40 ~ 85° C |
| |
Vibration/Shock |
0.5 Grms / 10 G (IEC 60068-2-64/27) |
| Certification |
Compliance |
CE/FCC Class A, CCC, BSMI, CB, UL |
