Are you tired of using outdated servers that slow down your work? The Advantech FWA-2013-24A1R, Intel Atom Processor P5362, 1U Rackmount Server is here to change that. This powerful server is designed to help you work more efficiently and effectively. With its advanced technology, you can say goodbye to slow processing times and hello to faster and more reliable performance. Many people struggle with servers that are not capable of handling their workload, but with the Advantech FWA-2013-24A1R, you can trust that your work will be done quickly and accurately.

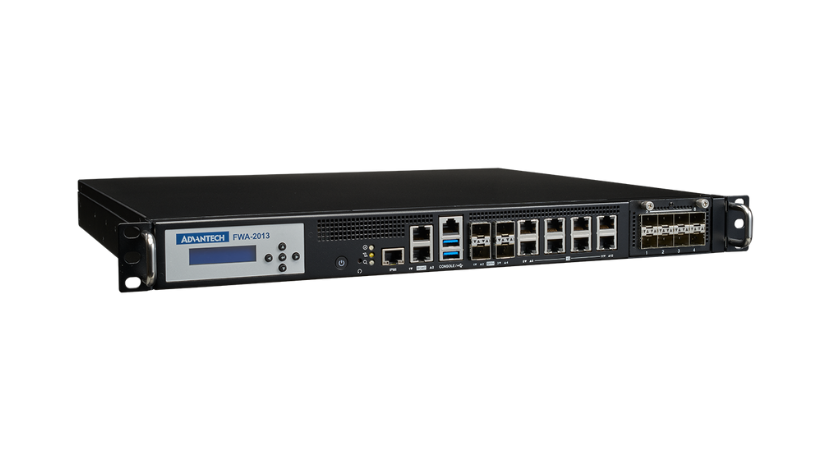

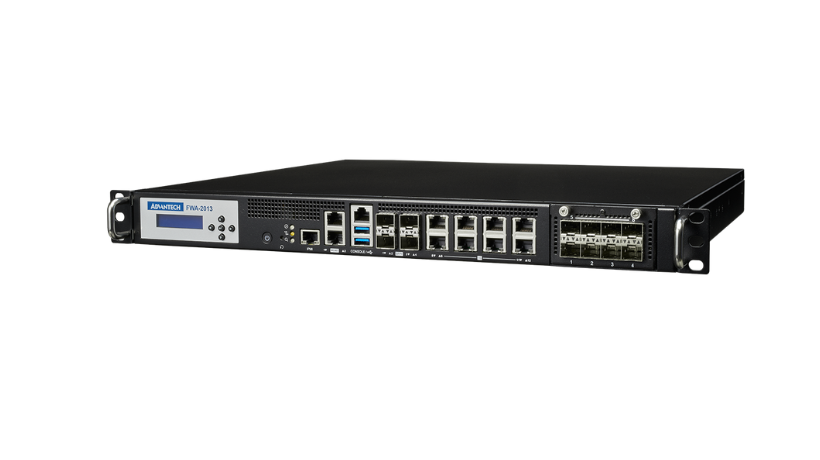

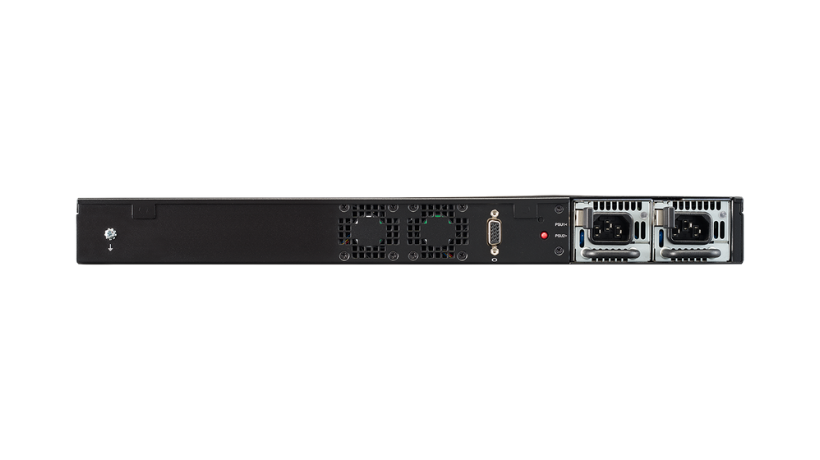

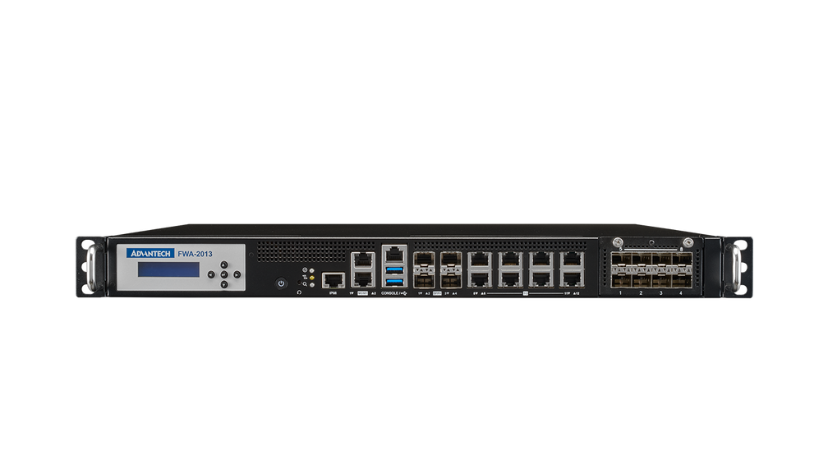

Advantech FWA-2013-24A1R, Intel Atom Processor P5362, 1U Rackmount Server
The Advantech FWA-2013-24A1R solves the problem of slow and unreliable servers. This problem matters to users because it can cause delays and losses in their work. The Advantech FWA-2013-24A1R gives a clear solution by providing a fast and reliable server that can handle any workload. With its advanced Intel Atom Processor P5362, you can trust that your work will be done quickly and accurately. This server is designed to help you work more efficiently and effectively, making it an essential tool for anyone looking to upgrade their server.
Key Features
- 1U Rackmount Server
- Intel Atom Processor P5362
- 24 cores
- 2.2 GHz base frequency
- Supports up to 64 GB of DDR4 memory
- 2 x 288-pin DIMM sockets
- 1 x PCIe Gen3 x8 slot
- 1 x M.2 E-key slot for WiFi module
- 8 x 1GbE RJ45 ports
- 2 x 2.5GbE RJ45 ports
- 4 x 10GbE SFP+ ports
Specifications
| General |
|
| Model |
FWA-2013-24A1R |
| Form Factor |
1U |
| Processor System |
|
| Processor |
Intel Atom® Processor P5362 |
| Core Count |
24 |
| Base Frequency |
2.2 GHz |
| BIOS |
AMI UEFI |
| Virtualization |
Intel® VT-x, Intel® VT-d, SR-IOV, VMDQ |
| Memory |
|
| Technology |
DDR4 |
| Max. Capacity |
64 GB |
| Socket |
2 x 288-pin DIMM |
| ECC Support |
UDIMM, ECC RDIMM |
| Networking |
|
| Controller |
2 x Intel i226-LM1 x Intel i350-AM41x SoC Integrated MAC and Marvell 88E1543PHY |
| 1GbE |
8 x 1GbE RJ45 |
| 2.5GbE |
2 x 2.5GbE RJ45 |
| 10GbE |
4 x 10GbE SFP+ |
| LAN Bypass |
Two pair of LAN bypass (Optional) |
| Expansion Slot |
|
| NMC |
1 x PCIe Gen3 x8 |
| M.2 (Except SSD) |
1 x M.2 E-key for WiFi module (Optional) |
| IPMI |
IPMI 2.0 and Redfish compliant |
| Storage |
|
| 2.5" Bay/3.5" Bay |
1 x Internal 2.5" HDD/SSD (SATA 3.0) or 1 x Internal 3.5" HDD (SATA 3.0) |
| M.2 (SSD) |
2 x M.2 M-key slots for 2280 SATA SSD (SATA 3.0) |
| eMMC |
Up to 64 GB eMMC (Optional) |
| I/O |
|
| Console |
1 x RJ45 type console |
| USB |
2 x USB 2.0 ports |
| LED Indicator |
1 x Power LED1 x Software-defined LED1 x Alert LED1 x Locate LED |
| Video |
1 x VGA port |
| Button |
1 x Power button, 1 x Software-defined button |
| Others |
1 x RJ45 type console |
| TPM |
TPM 2.0 module (Optional) |
| LCD Module |
16 x 2 graphic display, 5 buttons (Optional) |
| Power Supply |
|
| Power Type |
FlexATX PSU (Optional: AC Redundant Slim PSU) |
| Watts |
250 W (Optional: 300W Redundant PSU) |
| Input |
100-240 V 50-60 Hz |
| Connector |
AC 3pin plug |
| Environment |
|
| Operating Temperature |
0~40 °C (32~104 °F) |
| Non-operating Temperature |
-40 ~ 70 °C (-40 ~ 158 °F), 60 °C@95% non-condensing humidity |
| Vibration Resistance (Operation) |
5-500 Hz, 0.3 Grms, 3 axes, 1 hr/per axis |
| Shock Protection (Operation) |
10 G, 11 ms |
| Cooling |
2 x System fans with smart fan feature |
| Mechanical |
|
| Construction |
SGCC |
| Mounting |
Rackmount kit |
| Dimensions (W x H x D) |
438 x 43.7 x 390.5 mm (17.2" x 1.7" x 15.3") |
| Weight |
5kg (11 lb) |
| OS Support |
Linux OS, Only UEFI FW and UEFI aware Linux OS |
| Certification |
EMC/Safety CE, FCC, CB, UL, CCC |
