Many factories and remote sites need a computer that can run heavy data tasks without failing in tough environments. When a PC slows down or overheats, production stops and costs rise. The Advantech MIC-770 V3 Industrial PC gives you a fast, reliable engine that works in dust, heat and vibration, so you keep your line moving and your data safe.

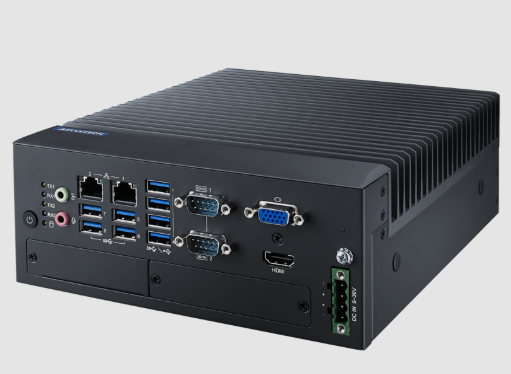

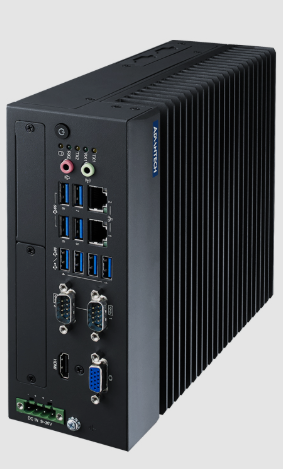

Advantech MIC-770 V3 Industrial PC Intel Core DDR5 128GB Dual LAN with Advantech
Powerful, compact and built for industry, this industrial PC machine packs a 14th-gen Intel Core processor, 128 GB DDR5 memory and two gigabit LAN ports. It is perfect for controlling machines, collecting sensor data or running edge-AI applications. If you need a computer that never quits in a harsh plant, this Advantech system delivers the speed and durability you expect.
Usages
Use it in manufacturing lines to monitor PLCs and robots. Deploy it at remote oil-field sites for real-time data logging. Install it in warehouse automation for barcode scanning and inventory control. It also fits smart-city edge nodes that need fast processing and reliable networking.
Benefits
- Fast processing keeps production smooth and reduces downtime.
- Large DDR5 memory handles many tasks at once, improving efficiency.
- Dual LAN ports give redundant network paths for reliable communication.
- Wide temperature range lets you install the PC in hot or cold areas.
- Compact size saves space on crowded control panels.
Key Features
- Intel Core 14th/13th/12th Gen CPU up to 65 W
- Up to 24 cores and 30 MB L3 cache
- Dual-channel DDR5 4800 MHz, 128 GB capacity
- Intel UHD Graphics for basic display needs
- 1 2.5 HDD/SSD bay and 1 NVMe M.2 2280 slot
- RAID 0/1/5/10 support for data protection
- Two Intel LAN controllers (I219-LM & I210-IT) at 1 Gbps

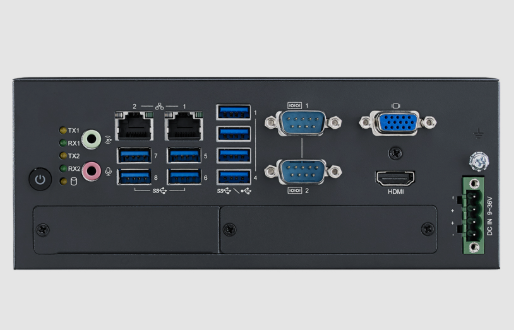

- VGA and HDMI video outputs
- 8 USB ports (2 USB 3.2 Gen2, 6 USB 3.2 Gen1, 1 USB 2.0 internal)
- 2 RS-232/422/485 serial ports, optional 4 RS-232
- Power input 9-36 VDC, suitable for industrial power supplies
- Operating temperature -20 C to 50 C with airflow
Specifications
| Model Name |
MIC-770V3H-00A1 |
| CPU |
Intel® Core™ processors (14th/13th/12th Gen) |
| Socket |
1 x LGA1700 |
| TDP |
Up to 65 W |
| Core Number |
Up to 24 |
| L3 Cache |
Up to 30 MB |
| Chipset |
Intel® R680E |
| BIOS |
AMI 256 / 128 Mbit SPI Flash |
| Memory Type |
Dual-channel DDR5 4800 MHz |
| Memory Capacity |
128 GB (2 x 64 GB SO-DIMM) |
| Graphics |
Intel® UHD Graphics |
| Storage (Bay) |
1 x 2.5" internal HDD/SSD bay |
| Storage (M.2) |
1 x NVMe M.2 2280 (PCIe Gen4 x4), M-Key |
| RAID Support |
0/1/5/10 |
| Expansion |
Supported via i-Module |
| Mini PCIe/mSATA |
2 |
| LAN Controller |
LAN1: Intel® I219-LM, LAN2: Intel® I210-IT |
| LAN Speed |
10/100/1000 Mbps |
| Display Output |
1 x VGA, 1 x HDMI |
| USB Ports |
2 x USB 3.2 (Gen2), 6 x USB 3.2 (Gen1), 1 x USB 2.0 (Internal) |
| COM Ports |
2 x RS-232/422/485 (Optional 4 x RS-232) |
| Audio |
1 x Line-out, 1 x Mic-in |
| Power Input |
9 ~ 36 VDC |
| Operating Temp |
-20 ~ 50 °C (with 0.7 m/s air flow) |
| Dimensions |
77 x 192 x 230 mm |
| Weight |
2.8 kg (6.17 lb) |
| Certification |
CE/FCC Class A, CCC, BSMI, UL/CB |
