When a vehicles left inner wheel is not detected correctly, safety systems can miss a critical event. This can lead to delayed alerts, higher risk of accidents, and loss of confidence in the whole monitoring setup. The Advantech TREK-154-LB01A0E Left AI Inner Wheel Detection Module NTSC RS-485 fixes the problem by giving reliable, real-time detection of the left inner wheel, so you can trust your safety and traffic-management solutions.

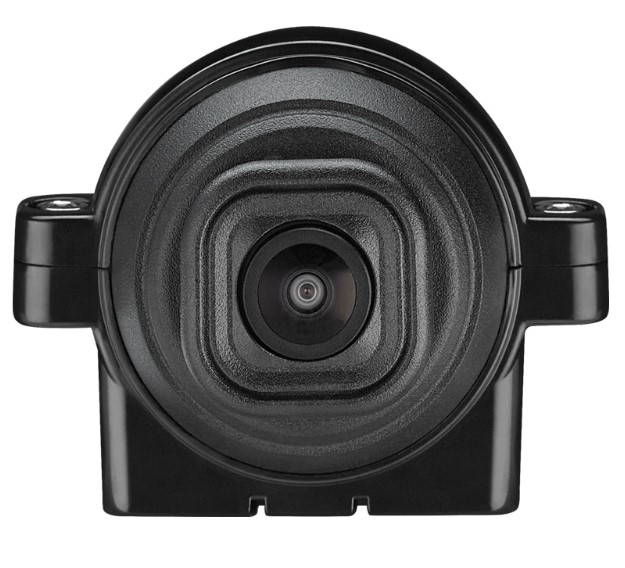

Advantech TREK-154-LB01A0E Left AI Inner Wheel Detection Module NTSC RS-485 with Advantech
You need a camera that can see the left inner wheel even in harsh weather and low light. This module from Advantech does exactly that. It combines a high-resolution CMOS sensor with AI object detection, sending the data over RS-485 for easy integration. If you have missed wheel alerts before, this device gives you the clear, fast signal you need to act in time.
Key Features
- CMOS sensor 1280 x 960, 100 dB dynamic range.
- 180deg horizontal field of view for broad coverage.
- AI object detection for vehicles and vulnerable road users.
- Video out via RCA connector for direct monitoring.
- Cascading RS-485 connectors for multi-module networks.
- Power input 10 ~ 36 VDC, flexible for many power sources.
- Operating humidity 30 ~ 80 % RH at 40 C.
- Lightweight camera module 132 g, bracket 88 g.
- FCC and CE certified for global compliance.
Specifcations:
General
|
|
Manufacturer
|
Advantech |
| Part Number |
TREK-154-LB01A0E |
| Product Series |
TREK-154 |
| Product Type |
AI Inner Wheel Detection Module |
| Installation Position |
Left Side (Inner Wheel) |
| Application |
Left Inner Wheel Detection |
| Intelligent Video Analysis |
|
| Machine Learning Object Detection |
VRUs, vehicles |
| Sensing / Viewing FOV (Horizontal) |
180° / 170° |
| Electrical Interface |
|
| Camera Sensor |
CMOS type, 1280 × 960 (1280 × 720 viewing resolution), 100 dB dynamic range |
| I/O |
1 x Video out (RCA, male), cascading RS-485 connectors for connecting multiple modules, and
1 x ACC/GND (open wire)
|
| Power Input |
10 ~ 36 VDC |
| Power Consumption |
< 4W |
| Environmental |
|
| Operating Temperature |
-40 ~ 85 °C / -40 ~ 185 °F |
| Storage Temperature |
-40 ~ 105 °C / -40 ~ 221 °F |
| Operating Humidity |
30 ~ 80% RH @ 40 °C / 104 °F |
| IP Rating |
IP69K |
| Shock / Vibration |
TBA |
| Drop Tolerance |
TBA |
| Certification EMC |
FCC / CE |
| Safety |
TBA |
| Mechanical |
|
| Dimensions (D × H) |
50 × 44.7 mm / 1.96 × 1.76 in (w/o bracket) |
| Weight |
Camera module: 132 g / 0.29 lb
Camera bracket: 88 g / 0.19 lb
|
