Imagine a vehicle that can think, learn and react in real time. The Advantech TREK-60N-A1A0MN00E Vehicle AI Computer gives you that power. It is a rugged, in-vehicle computer built around NVIDIA Jetson Orin NX, ready for AI workloads, navigation and remote monitoring. If you have struggled with fragile boards, limited processing, or unreliable GPS in harsh conditions, this system solves those issues so you can focus on your mission, not on hardware failures.

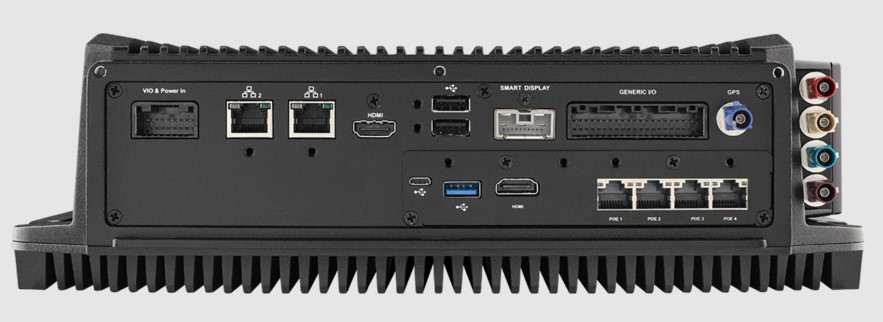

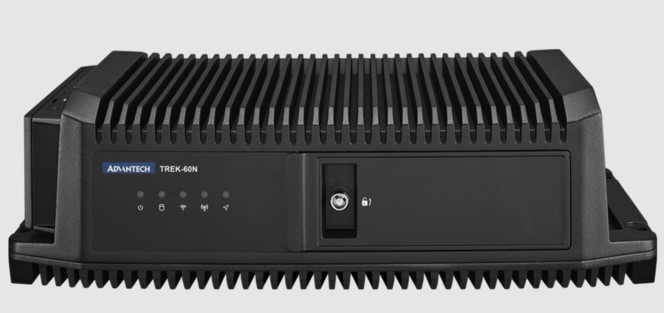

Advantech TREK-60N-A1A0MN00E Vehicle AI Computer, Jetson Orin NX 8GB, GPS
Vehicles that need on-board intelligence often face overheating, vibration and power spikes. Those problems cause downtime and lost data, which hurts productivity and safety. This computer is designed to survive extreme temperature swings, shock and vibration while delivering up to 70 TOPS of AI performance. It also includes a built-in u-blox GNSS receiver for precise positioning, so you get reliable AI and navigation in one sealed package.
Key Features
- NVIDIA Jetson Orin NX 8 GB, 6-core Arm Cortex-A78AE CPU
- 1,024-core Ampere GPU with 32 Tensor Cores, up to 70 TOPS AI
- 8 GB LPDDR5 memory, 102.4 GB/s bandwidth
- 128 GB industrial M.2 NVMe SSD for fast storage
- Built-in u-blox NEO-M9L GNSS, supports GPS, Galileo, GLONASS, BeiDou
- Five FAKRA antenna connectors for GPS, Wi-Fi/Bluetooth and WWAN
- Optional M.2 slots for Wi-Fi/Bluetooth and 4G/5G modules
- 12/24 VDC vehicle power input with intelligent power management (iVPM 2.0)
- IP65 protection, MIL-STD-810G shock and vibration rating
- Remote features: OTA updates, SSH access, device monitoring and control
Specifications
| General |
|
| Manufacturer |
Advantech |
| Model |
TREK-60N-A1A0MN00E |
| Product Type |
Rugged In-Vehicle AI Computer |
| Processor |
|
| CPU |
NVIDIA® Jetson Orin™ NX 8GB, 6-core Arm® Cortex®-A78AE |
| GPU |
1,024-core NVIDIA Ampere GPU with 32 Tensor Cores |
| AI Performance |
Up to 70 TOPS |
| Memory & Storage |
|
| System Memory |
8GB 128-bit LPDDR5 |
| Memory Bandwidth |
102.4 GB/s |
| Storage |
128GB Industrial M.2 NVMe SSD (3D TLC) |
| Wireless & Navigation |
|
| WLAN/Bluetooth |
M.2 2230 (A+E Key) slot for optional Wi-Fi/Bluetooth module |
| WWAN |
M.2 3042/3052 (B Key, USB 3.0) slot for optional 4G/5G module |
| SIM Support |
External Mini-SIM socket |
| GPS |
Built-in u-blox NEO-M9L GNSS receiver |
| GNSS Support |
GPS, Galileo, GLONASS, BeiDou |
| Antenna Connectors |
5 × FAKRA (1 × GPS, 2 × Wi-Fi/Bluetooth, 2 × WWAN) |
| Power |
|
| Input Voltage |
12/24 VDC Vehicle Power |
| Power Management |
Intelligent Vehicle Power Management (iVPM 2.0) |
| Wake-Up Functions |
RTC, SMS/Call, G-Sensor |
| Battery Protection |
Low-voltage protection |
| Mechanical |
|
| Dimensions (W × D × H) |
314 × 172.2 × 95.3 mm |
| Dimensions (W × D × H) |
12.36 × 6.78 × 3.75 in |
| Weight |
5.8 kg (SSD excluded) |
| Environmental |
|
| IP Rating |
IP65 (excluding rear I/O) |
| Shock & Vibration |
MIL-STD-810G, EN60721-3 (5M3) |
| EMC |
CE, FCC, RCM, CCC |
| Safety |
UL/cUL, CB, CCC |
| Vehicle Standards |
E-Mark (E13), SAE J1455, ISO 7637-2, SAE J1113 |
| RF Compliance |
CE (RED), FCC ID, IC ID |
| Operating Temperature |
Refer to the NVIDIA Jetson Orin NX configuration specifications |
| Storage Temperature |
-40°C to 80°C (-40°F to 176°F) |
| Management |
|
| Device Management |
Advantech DeviceOn iService |
| Remote Features |
OTA software updates, Remote SSH, Device monitoring, Remote control |
