Tired of buffering and dropped connections? The Advantech WiFi 6 LAN Card M.2 2230 Bluetooth 5.2 Dual Band 2T2R gives you fast, reliable wireless performance in a tiny slot. It fits into any M.2 2230 opening and adds the latest Wi-Fi 6 and Bluetooth 5.2 standards to your computer. If your current network feels slow or you need a stable link for work, gaming, or video calls, this card solves that problem instantly.

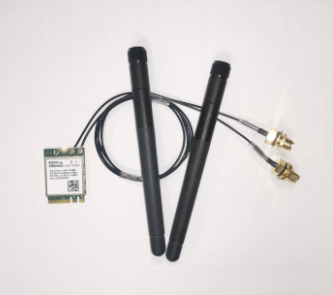

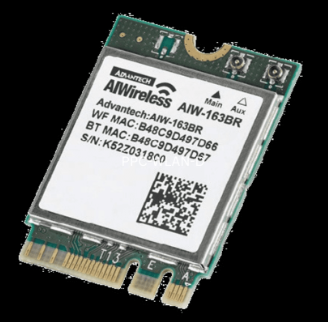

Advantech WiFi 6 LAN Card M.2 2230 Bluetooth 5.2 Dual Band 2T2R
Many laptops and mini-PCs lack modern Wi-Fi hardware, leaving users stuck with old 802.11n speeds. Slow speeds waste time, cause frustration, and can even affect work deadlines. This Advantech card replaces the old module with a PCI-E based Wi-Fi 6 chipset, delivering higher throughput, lower latency, and better range. The built-in Bluetooth 5.2 also lets you connect phones, headphones, and peripherals without extra adapters, giving you a clean, all-in-one solution.
Usages of Advantech
Install the card in a thin laptop to upgrade to Wi-Fi 6 for smoother video streaming. Use it in an industrial PC to provide reliable wireless links for sensors and data collection. Add it to a home media server so 4K streams run without buffering. It also works in a gaming rig, giving you the low ping you need for competitive play. The Bluetooth 5.2 part lets you pair wireless keyboards, mice, and speakers easily.
Benefits
- Faster download and upload speeds for work and play.
- More stable connection in crowded Wi-Fi environments.
- Lower power use helps battery life on laptops.
- Bluetooth 5.2 adds quick pairing for many devices.
- Compact size fits tight spaces without extra cables.
Key Features
- Wi-Fi 6 (802.11ax) support.
- Dual-band 2.4 GHz and 5 GHz operation.
- 2Tx/2Rx antennas with IPEX MHF4 connectors.
- RTL 8852BE chipset for high efficiency.
- Bluetooth 5.2 for fast, low-latency pairing.
- M.2 2230 A-E key form factor.
- PCI-E interface for Wi-Fi, USB for Bluetooth.
- WPA3, AES-CCMP, and other security protocols.
- Operating temperature 0 ~ 70 C.
- Supports Windows 10 drivers.
Specifications
| Part No. |
PPC-WLAN-D1 |
| Product Description |

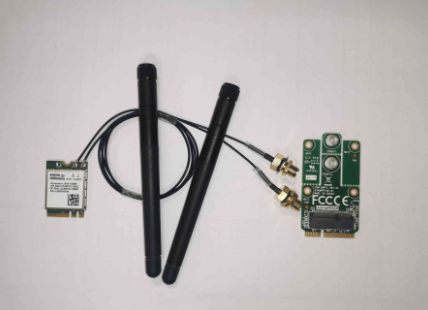

M.2, WiFi6 +BT5.2, 2T2R, w/Antenna, MiniPCIe adapter |
| Main Chipset |
RTL 8852BE |
| Tx/Rx |
2Tx/ 2Rx (2 IPEX MHF4 connector Receptacle) |
| Standard Conformance |
IEEE 802.11ax/ac/a/b/g/n + Bluetooth 5.2 |
| Form Factor |
M.2 2230, A-E Key card |
| Interface |
WIFI: PCI-E, Bluetooth: USB |
| Operation Voltage |
DC 3.3V |
| Security |
WAPI, WEP (64/128-bit), WPA/WPA2/WPA3, AES-CCMP |
| O.S Supported |
Windows 10 |
| Temperature Ranges |
Operating: 0 ~ 70 °C (32 ~ 158 °F) |
| Dimensions |
22 x 30 x 2.2 mm |
