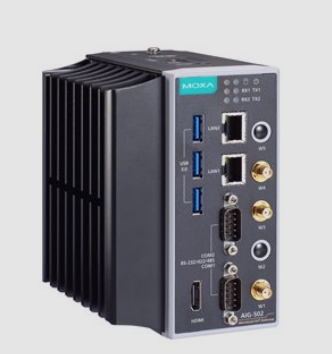

AIG-502 industrial IoT gateway front view with Intel i7 and dual Ethernet ports
AIG-502 industrial IoT gateway front view with Intel i7 and dual Ethernet ports

Moxa AIG-502 Industrial IoT Gateway with Intel i7, LTE, Dual LAN

UK Free Shipping UK Free Shipping over £249

Buy 5 or More Units - Unlock Priority Discounts!
Buy 20 or More Units - Get Exclusive Volume Discounts!


Also Support: Google & Apple Pay

Are you a reseller or placing a large order?
We're happy to offer Special Pricing tailored to your needs.
Click "Request Quote" or email us at [email protected] to get your best price today!

Add to Wishlist

Compare

Product Code: MNHO-226

MPN #: AIG-502-T-AZU-LX

Running machines in a factory or a remote site often means you need to collect data, send commands and keep the system online. When the network is slow, the hardware is weak, or the connection drops, production can stop and costs rise. The AIG-502 Industrial IoT Gateway with Intel i7, LTE, Dual LAN gives you a fast, reliable bridge that keeps your data flowing and your equipment under control.



Moxa AIG-502 Industrial IoT Gateway with Intel i7, LTE, Dual LAN with Industrial

Never lose sight of your plant again. This industrial PC gateway packs a powerful Intel Core i7-7600U processor, 32 GB DDR4 memory and solid-state storage, so it can run complex edge applications without lag. It talks to machines through dual Ethernet ports, two RS-232/422/485 serial ports and optional Wi-Fi, while LTE Cat 4 keeps you connected even when wired networks fail. The built-in Azure IoT Edge support lets you move analytics to the edge, reducing cloud bandwidth and latency. All of this is housed in a rugged metal case that meets industrial temperature and safety standards.



Usages

Use the gateway on a factory floor to gather sensor data and control PLCs in real time. Deploy it in oil and gas sites where harsh conditions require reliable Ethernet and serial links, plus LTE backup. Install it in smart-city infrastructure to manage traffic lights, environmental monitors and public-safety devices, all while sending secure data to the cloud.



Benefits
    • Fast processing lets you run edge analytics without slowing production.
    • Dual LAN and LTE keep your system online even if one network fails.
    • Multiple serial ports let you connect legacy equipment without extra adapters.
    • Built-in security features protect data from cyber threats.
    • Easy mounting on DIN-rail or wall saves space in crowded panels.



Key Features
    • Intel Core i7-7600U processor up to 3.9 GHz.
    • 32 GB DDR4 SODIMM memory for smooth multitasking.
    • 32 GB mSATA SSD for fast local storage.
    • Auto-sensing 10/100/1000 Mbps Ethernet x2.
    • RS-232/422/485 serial ports x2, software selectable.
    • USB 3.0 host ports x3 for peripheral connections.
    • LTE Cat 4 with dual SIM for cellular redundancy.
    • Azure IoT Edge v1.4.33 support for edge computing.
    • TPM 2.0 hardware security module.
    • IP20 metal enclosure, operating from -40 C to 70 C.



Specifications
Computer CPU Intel® Core™ i7-7600U processor (4M cache, up to 3.90 GHz)
  DRAM 32 GB SODIMM DDR4
  Storage Pre-installed 32 GB mSATA
  Pre-installed OS Moxa Industrial Linux (Debian 11, kernel 5.10.x)
  Graphics Controller Intel® HD Graphics 620
Computer Interface Ethernet Ports Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
  Serial Channels RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)
  USB 3.0 USB 3.0 hosts x 3, type-A connectors
  Expansion Slots mPCIe slots x 1 (for optional Wi-Fi module)
  Number of SIMs 2
  Video Output HDMI x 1
  TPM TPM v2.0
Ethernet Interface Ports 10/100/1000BaseT(X) Ports (RJ45 connector) x 2
  Magnetic Isolation 1.5 kV (built-in)
Ethernet Software Industrial Protocols Azure IoT Edge
  Configuration Web Console (HTTP/HTTPS)
  Time Management NTP Server/Client, GPS
  Security SSH, HTTPS/SSL, TLS, Firewall
Serial Interface No. of Ports 2
  Connector DB9 male
  Baudrate 50 bps to 115.2 kbps
  Data/Stop Bits Data: 7, 8; Stop: 1, 2
  Parity None, Even, Odd, Space, Mark
  Flow Control RTS/CTS, XON/XOFF, ADDC (automatic data direction control) for RS-485
  RS-232 Signals TxD, RxD, RTS, CTS, GND
  RS-422 Signals Tx+, Tx-, Rx+, Rx-, GND
  RS-485-2w Signals Tx+, Tx-, Rx+, Rx-, GND
  RS-485-4w Signals Data+, Data-, GND
Serial Software Industrial Protocols Modbus RTU/ASCII Master
Cellular Interface Standards LTE Cat. 4
  Band Options (US) LTE B2, B4, B5, B12, B13, B14, B66, B71*; UMTS/HSPA 850/1900 MHz
  Carrier Approval (US) Verizon, AT&T
  Band Options (EU) LTE B1, B3, B7, B8, B20; UMTS/HSPA 900/1800/2100 MHz
  Band Options (APAC) LTE B1, B3, B5, B8, B28; UMTS/HSPA 850/900/2100 MHz
  Note *LTE Band 71 (600 MHz) requires custom antenna support (contact Moxa)
GPS Interface Receiver Types GPS/GLONASS/BeiDou/Galileo/QZSS
  Accuracy Position: 2.0 m @CEP50
  Sensitivity Acquisition: -147.0 dBm; Cold starts: -145 dBm; Tracking: -160 dBm
  Update Rate 1 Hz
Azure IoT Edge Versions Supported v1.4.33
  Authentication Manual/Conn. String, DPS/Symmetric, DPS/X.509, DPS/TPM
  Direct Methods Reboot, Software Upgrade, Remote API Invocation
  Azure Module Twin Device Config, Moxa Functions, Custom Payload, Message Group
Modbus RTU/ASCII Mode Client (Master)
  Functions 1, 2, 3, 4, 5, 6, 15, 16, 23
  Commands/Capacity Max 256 commands per port; 31 slave devices per port
Modbus TCP Mode Client (Master), Server (Slave)
  Functions 1, 2, 3, 4, 5, 6, 15, 16, 23
  Capacity Max Server Conn: 64; Max Client Conn: 4; Max Commands: 3000
LED Indicators System Power x 2
  LAN / Serial 2 per port (10/100/1000 Mbps); 2 per serial port (Tx, Rx)
Power Parameters Input Voltage 9 to 36 VDC (Standard); 12 to 36 VDC, 6A (Hazardous)
  Input Current 8 A @ 9 VDC; 2 A @ 36 VDC
  Consumption 72 W (max.)
  Power Connector 3-pin terminal block
Reliability Reboot Trigger External WDT (watchdog timer)
Physical Housing / IP Rating Metal / IP20
  Dimensions / Weight 134 x 60.4 x 120 mm (5.28 x 2.38 x 4.72 in); 1,500 g (3.3 lb)
  Installation DIN-rail or Wall mounting (with optional kits)
Environmental Operating Temp -40 to 70°C (-40 to 158°F)
  Storage Temp -40 to 75°C (-40 to 167°F)
  Humidity / Shock 5 to 95% (non-condensing); IEC 60068-2-27
  Vibration IEC 60068-2-64
Certifications EMC / EMI EN 55032/35, EN 61000-6-2/-6-4; CISPR 32, FCC Part 15B Class A
  EMS IEC 61000-4-2/3/4/5/6/8 (ESD, RS, EFT, Surge, CS, PFMF)
  Cybersecurity EN 18031-1
  Hazardous / Safety Class I Div 2, ATEX, IECEx; UL/EN 62368-1
  Radio / Carrier NCC, RCM, AT&T, Verizon, PTCRB, RED (multiple EN standards)
  International BSMI, RoHS, CRoHS, WEEE
MTBF / Warranty Time / Standards 510,913 hrs; Telcordia (Bellcore) TR/SR, GB
  Warranty Period 3 years
