Industrial machines often stop when the power flickers or fails. That loss can ruin data, damage equipment, and halt production, costing you time and money. You need a way to keep your control panels, PLCs and HMIs running long enough to shut down safely. The APC 24V DC DIN Rail UPS 480W 20A Power Module gives you reliable backup and surge protection so you can protect your investment and keep operations smooth.

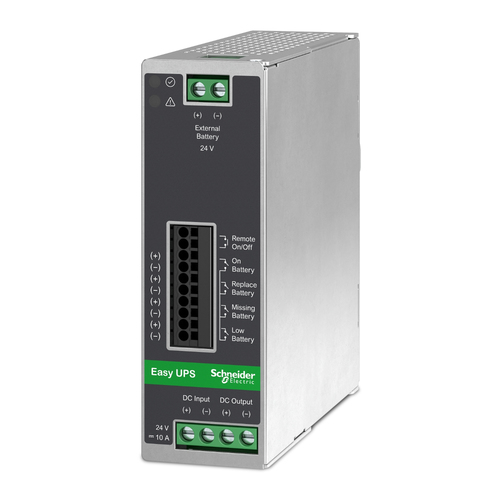

APC 24V DC DIN Rail UPS 480W 20A Power Module with APC
Imagine a compact unit that snaps onto a DIN rail and instantly supplies 24 V DC power even when the mains go down. This APC UPS is built for industrial automation. It delivers 480 W of clean power, supports up to four external batteries, and lets you monitor status with LED indicators. If your factory floor loses electricity, the module gives you up to an hour of runtime, letting you save data and power down machines safely.
Usages
You can install the module in any control cabinet that uses a DIN rail. It powers PLCs that run production lines, HMIs that display operator information, and industrial PCs that manage data logging. It also works with conveyor controllers, robotic cell controllers, and packaging machines. Because it accepts a separate battery pack, you can scale the backup time to match the criticality of each application.
Benefits
- Stops unexpected shutdowns, protecting costly equipment and data.

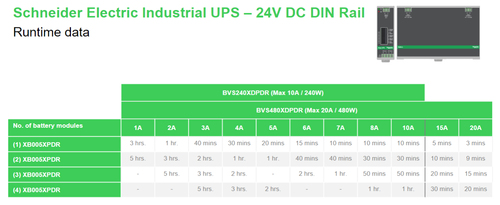

- Gives you up to one hour of power to finish a cycle safely.
- Easy DIN-rail mounting saves space and speeds up installation.
- Remote on/off and relay contacts let you control equipment from a distance.
- LED status lights provide instant visual feedback on power health.
Key Features
- 24 V DC input range 21.6 V-28.6 V.
- Stable 24 V DC output at 20 A.
- 480 W (0.48 kVA) continuous power rating.
- Supports 1-4 external XB005XPDR batteries.
- Relay contacts for dry-contact shutdown control.
- On/Off button for manual power management.
- LED indicators that turn red on fault or low battery.
- Compact grey housing, 119 mm 129 mm 40 mm.
- Weight only 500 g for easy handling.
- 2-year warranty for peace of mind.
Specifications
| Features |
| Output operation voltage (max) |
24 V |
| Output operation voltage (min) |
24 V |
| Input operation voltage (max) |
28.6 V |
| Input operation voltage (min) |
21.6 V |
| Output power |
480 W |
| Output power capacity |
0.48 kVA |
| Design |
| Product colour |
Grey |
| Weight & dimensions |
| Weight |
500 g |
| Height |
119 mm |
| Depth |
129 mm |
| Width |
40 mm |
