On a boat or ship the power supply can be noisy, unstable, and prone to spikes. Those fluctuations can damage navigation computers, communication gear, and entertainment systems. When equipment fails at sea, safety and comfort are at risk. The APC 3000VA Marine Power Filter 3 kVA Rackmount 100-240V cleans the power, steadies voltage, and protects every device that relies on clean electricity.
APC 3000VA Marine Power Filter 3 kVA Rackmount 100-240V with APC
Imagine a single unit that removes noise, blocks surges, and delivers a constant 200-240 V output even when the ships generator is wavering. That is what this UPS marine power filter does. It is built for shipboard and other transportation environments where power must stay reliable. Without this filter, a sudden voltage dip can shut down radar, cause data loss, or ruin expensive electronics. APCs design gives you a rugged, rack-mountable solution that keeps your systems running smoothly.
Usages
The filter fits in standard 19-inch racks on yachts, fishing vessels, and offshore platforms. It can be installed in the engine room to protect control panels, in the bridge to keep navigation displays stable, or in crew cabins for safe use of laptops and chargers. It also works on mobile command units, RVs, and any vehicle that needs clean power while moving.
Benefits
- Stops voltage spikes that could ruin sensitive electronics.
- Provides steady power so navigation and communication tools stay online.
- Reduces noise, improving performance of audio and video equipment.
- Compact rackmount size saves space in tight marine cabinets.
- Works from 100 V to 240 V, so it adapts to different ship power systems.
Key Features
- 3000 VA (3 kVA) power capacity for heavy marine loads.
- Maximum output current of 16 A.
- Input voltage range 100-240 V, output range 200-240 V.
- Supports 50/60 Hz input frequency.

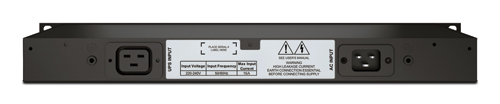

- One C19 AC outlet with 2.44 m cable for easy connection.

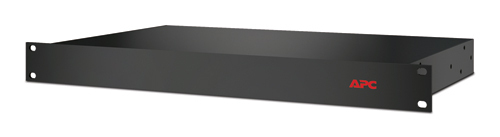

- Rugged rackmount form factor, 44 mm height, 432 mm width.
- Operating temperature 0-55 C, storage down to -25 C.
- Altitude tolerance up to 3 000 m while operating.
- RoHS compliant, built for harsh marine environments.
- Lightweight at 5.09 kg, easy to install and maintain.
Specifications
| Features |
| Maximum current |
16 A |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
200 V |
| Input frequency |
50/60 Hz |
| Input operation voltage (max) |
240 V |
| Input operation voltage (min) |
100 V |
| Output power capacity |
3 kVA |
| Ports & interfaces |
| AC outlets quantity |
1 AC outlet(s) |
| AC outlet types |
C19 coupler |
| Design |
| Cable length |
2.44 m |
| Product colour |
Black |
| Form factor |
Rackmount |
| Operational conditions |
| Non-operating altitude |
0 - 15000 m |
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-25 - 75 °C |
| Operating temperature (T-T) |
0 - 55 °C |
| Certificates |
| Compliance certificates |
RoHS |
| Weight & dimensions |
| Weight |
5.09 kg |
| Height |
44 mm |
| Depth |
279 mm |
| Width |
432 mm |
| Packaging data |
| Package weight |
6.36 kg |
| Other features |
| Package dimensions (WxDxH) |
381 x 559 x 76 mm |
| Operating temperature (T-T) |
0 - 55 °C |
| Dimensions (WxDxH) |
432 x 279 x 44 mm |
