Tired of cramped server rooms where you can’t see or control your equipment easily? The APC AP5719 19" 1U Rack LCD Console gives you a clear, front-facing view and full keyboard control without taking up extra space. It solves the common problem of hidden consoles that force technicians to crawl behind racks or use separate monitors. With this console you keep everything in one place, so you can manage servers faster and avoid costly downtime.

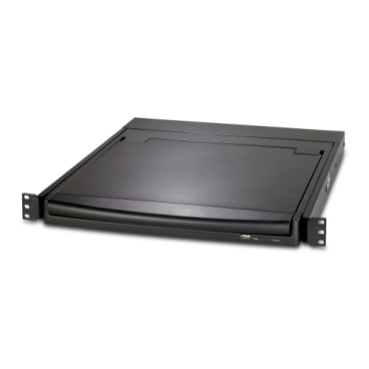

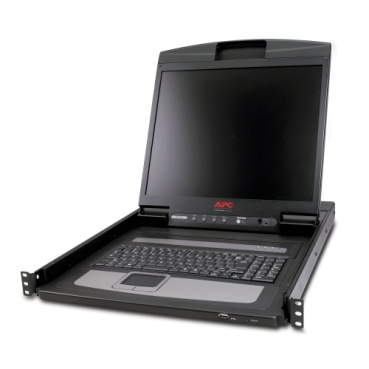

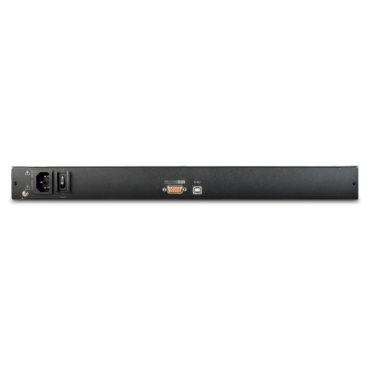

APC AP5719 19" 1U Rack LCD Console
The biggest headache in a data center is not being able to see what’s happening inside a rack. When you can’t read alerts or type commands quickly, a small mistake can become a big outage. This console puts a 19-inch LCD, a full-size US English keyboard and a touchpad right on the rack door. You get instant visual feedback and direct input, eliminating the need for extra KVM switches or portable laptops. The result is a smoother workflow and less chance of error.
Key Features
- 19-inch LCD display with 0.26 mm pixel size for sharp text.
- US English keyboard layout with full set of keys.
- PS/2 touchpad and USB mouse options for flexible input.
- Supports 100 V-240 V input, 50/60 Hz worldwide.
- Mounts front or rear, compatible with standard 1U racks.
- Minimum mounting depth 26.8 in, maximum 41.3 in for versatile cabinet sizes.
- Includes power cords, USB and PS/2 KVM cables, and rack mounting hardware.
- C-tick, CE, UL Listed and other certifications for safety and compliance.
- Low LCD power consumption of 19 W helps reduce overall rack power budget.
- Single-user rack mount kit simplifies setup for one administrator.
Specifications
| Product or Component Type |
Console |
| Main Input Voltage |
100 V, 240 V |
| Input Frequency |
50/60 Hz |
| Number of Rack Unit |
1U |
| Provided Equipment |
C13-C14 power cord, Documentation CD, Firmware upgrade cable, Installation guide, NEMA 5-15 power cord, PS2 KVM cable, Rack mounting hardware, Single user rack mount kit, USB cable, USB KVM cable |
| Mounting Location |
Front, Rear |
| Mounting Mode |
Rack-mounted |
| Minimum Mounting Depth |
26.8 in (680 mm) |
| Maximum Mounting Depth |
41.3 in (1049.8 mm) |
| Display Type |
LCD display |
| Display Size |
19 inch |
| LCD Power Consumption |
19 W |
| Pixel Size |
0.26 |
| Trackball Type |
PS/2 Touchpad, USB mouse |
| Color |
Black |
| Product Certifications |
C-tick, CE, Industry Canada, KCC, NOM, UL Listed, VCCI Class A, VDE, TAA compliance |
| Standards |
EN 55022 Class A, EN 55024, EN 60950, FCC Part 15 Class A, IEC 60950 |
