Imagine your computer turning off the moment the lights flicker. That sudden loss can ruin a project, delete files, or damage hardware. The APC BR650MI 0.65 kVA Line-Interactive UPS with LCD Display is built to stop that from happening. It gives you clean, backup power for a PC, router, NAS or media box when the grid fails. You get time to save work, shut down safely, and keep your network alive.

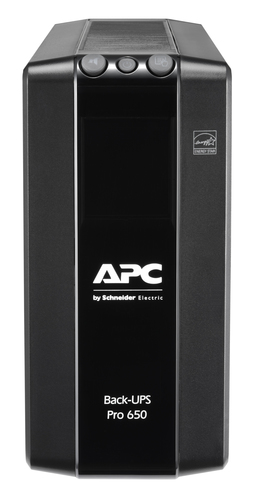

APC BR650MI 0.65 kVA Line-Interactive UPS with LCD Display
Power spikes and outages are a daily risk for anyone who works from home or runs a small office. Those interruptions can corrupt data, cause hardware wear, and lead to costly downtime. The APC UPS solves this by delivering instant battery power the moment the mains drops, while its line-interactive AVR smooths low or high voltage without draining the battery. The LCD screen shows status at a glance, so you always know whats happening.
Usages of APC
Use the UPS in a home office to protect a desktop PC, monitor, and internet router. It works well in a small business server room to keep a NAS and VoIP phone system running during short outages. Gamers can connect consoles and modems to avoid lag when the power blinks. Even a home entertainment center with a TV box and sound system stays on long enough to finish a movie.
Benefits
- Automatic backup power lets you finish work and shut down safely.
- Surge protection guards expensive electronics from lightning spikes.
- LCD display provides clear real-time information on battery and load.
- Green mode reduces energy use and extends battery life.
- Hot-swap battery design lets you replace the pack without power loss.
Key Features
- 0.65 kVA (390 W) output suitable for PCs and networking gear.
- Line-interactive AVR corrects voltage swings without using battery.
- Six battery-plus-surge protected AC outlets.
- Two Gigabit Ethernet ports protect network lines.
- USB port for automatic shutdown via PowerChute software.
- Passive cooling keeps the unit quiet at 45 dB.
- LCD screen shows load, battery, and runtime.
- Green/ECO mode saves electricity when full power is not needed.
- Hot-swap, user-replaceable battery cartridge.
- 12-month automatic battery test ensures reliability.
Specifications
| Features |
| Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm |
| Audible alarm(s) |
Yes |
| Surge protection features |
Network |
| Surge protection |
Yes |
| Noise level |
45 dB |
| ECO mode |
Yes |
| Response time |
12 ms |
| Maximum current |
10 A |
| Automatic Voltage Regulation (AVR) |
Yes |
| Output frequency |
50/60 Hz |
| Input frequency |
50/60 Hz |
| Input operation voltage (max) |
294 V |
| Input operation voltage (min) |
176 V |
| Waveform |
Sine |
| Output power |
390 W |
| Output power capacity |
0.65 kVA |
| UPS topology |
Line-Interactive |
| Ports & interfaces |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN (RJ-45) ports |
2 |
| USB 2.0 ports quantity |
1 |
| USB port |
Yes |
| AC outlets quantity |
6 AC outlet(s) |
| Power plug |
C14 coupler |
| AC outlet types |
C13 coupler |
| Battery |
| Cold start |
Yes |
| Automatic battery test |
Yes |
| Hot-swap battery |
Yes |
| Battery recharge time |
12 h |
| Battery life (max) |
5 year(s) |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| LED indicators |
Yes |
| Display type |
LCD |
| Cooling type |
Passive |
| Cable length |
1.83 m |
| Product colour |
Black |
| Form factor |
Tower |
| Operational conditions |
| Non-operating altitude |
0 - 15000 m |
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
A-tick, C-tick, CE, EAC, GS Mark, RCM, TISI |
| Packaging content |
| Manual |
Yes |
| Cables included |
USB cable |
| Sustainability |
| Sustainability certificates |
Green Premium |
| Weight & dimensions |
| Weight |
6.4 kg |
| Height |
190 mm |
| Depth |
310 mm |
| Width |
91 mm |
| Packaging data |
| Package weight |
7.4 kg |
| Package height |
255 mm |
| Package depth |
143 mm |
| Package width |
440 mm |
| Other features |
| Nominal input voltage |
230 V |
| Nominal output voltage |
230 V |
| Operating temperature (T-T) |
0 - 40 °C |
