Imagine a power outage that shuts down your servers in seconds. The APC Easy UPS 3S 30 kVA Double-conversion Online 400V stops that nightmare. It is a high-efficiency 3-phase UPS with internal batteries that give you about 25 minutes of clean power. If you run a data centre, a small office, or any critical equipment, you need a reliable guard against voltage drops and blackouts.

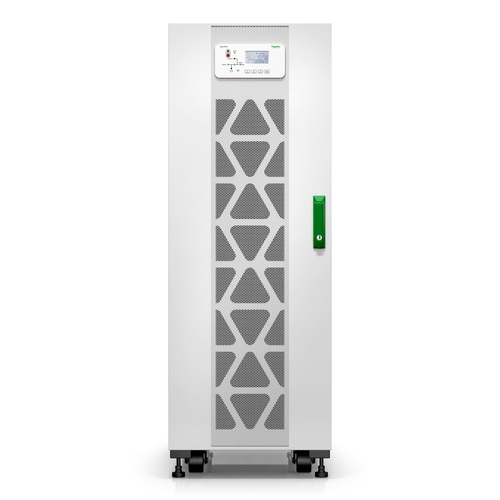

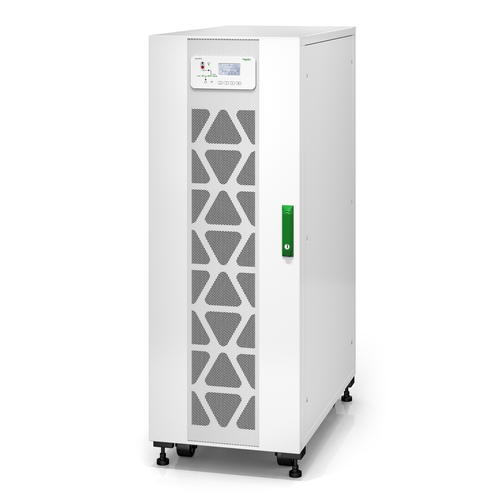

APC Easy UPS 3S 30 kVA Double-conversion Online 400V
Power loss can corrupt files, damage hardware, and cost you money. This problem matters because even a few seconds of interruption can halt production or lose customer data. The Easy UPS 3S solves the issue by converting incoming AC to DC and back to AC instantly, so your load never sees a dip. Its wide input voltage window, ECO mode, and parallel capability keep your operation running smoothly while saving battery life.
Usages of APC
The UPS fits perfectly in a server rack for a data centre, protecting servers, storage arrays, and networking gear. Small and medium businesses can place it in an electrical room to back up POS systems, workstations, and VoIP phones. It also works well in manufacturing control panels where 3-phase power is common. Anywhere you need 30 kVA of uninterrupted power, this unit is ready.
Benefits
- Provides up to 25 minutes of clean power, giving you time to shut down safely.
- Double-conversion design eliminates all voltage spikes and sags.
- Easy-loop test lets you verify performance without extra equipment.
- Front-access service panels reduce downtime during maintenance.
- Parallel operation lets you add more units for higher capacity or redundancy.
Key Features
- 30 kVA (30 000 W) output power for demanding loads.
- Double-conversion (online) topology for continuous clean power.
- Internal sealed lead-acid batteries with 25-minute runtime.
- Wide input voltage range 400-477 V to protect against fluctuations.
- ECO mode bypasses unused components, raising efficiency.
- Intuitive graphical user interface for simple configuration.
- Replaceable dust filters for harsh environments.
- Front-access servicing reduces installation space.
- Parallel capability for scaling power and redundancy.
- Optional SNMP card enables remote monitoring via EcoStruxure IT.
Specifications
| Features |
| Input current Total Harmonic Distortion (THD) |
5% |
| Output voltage Total Harmonic Distortion (THD) |
5.5% |
| Crest factor |
3:1 |
| Power factor |
0.99 |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
230 V |
| Input frequency |
45/65 Hz |
| Input operation voltage (max) |
477 V |
| Input operation voltage (min) |
400 V |
| Output power |
30000 W |
| Output power capacity |
30 kVA |
| UPS topology |
Double-conversion (Online) |
| Battery |
| Battery voltage |
240 V |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| International Protection (IP) code |
IP20 |
| Product colour |
White |
| Form factor |
Rackmount |
| Operational conditions |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-15 - 40 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE |
| Compliance certificates |
RoHS |
| Weight & dimensions |
| Weight |
293 kg |
| Height |
1400 mm |
| Depth |
996 mm |
| Width |
500 mm |
| Packaging data |
| Package weight |
297 kg |
| Package height |
1640 mm |
| Package depth |
1114 mm |
| Package width |
683 mm |
| Other features |
| Operating temperature (T-T) |
0 - 40 °C |
