Running a data centre or a critical industrial system means you cannot afford a power outage. A sudden loss of voltage can shut down servers, damage equipment, and cause costly downtime. This risk is especially high in small-to-medium facilities that lack built-in backup power. The APC Galaxy VS 15 kVA Double-Conversion Online UPS, 3-Phase, 400V gives you clean, uninterrupted electricity, protecting your hardware and keeping your operations running smoothly.
APC Galaxy VS 15 kVA Double-Conversion Online UPS, 3-Phase, 400V with APC

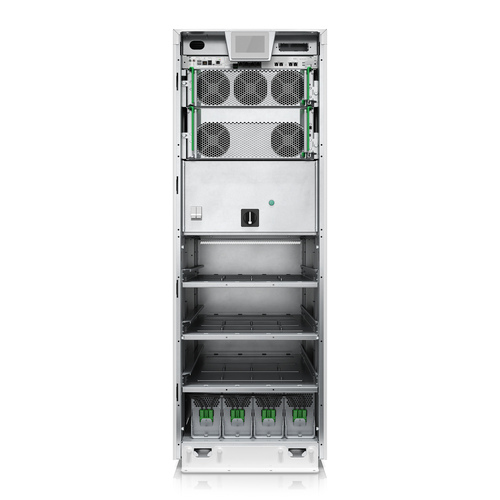

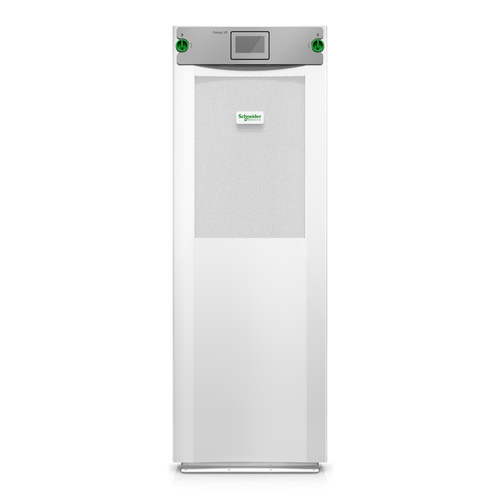

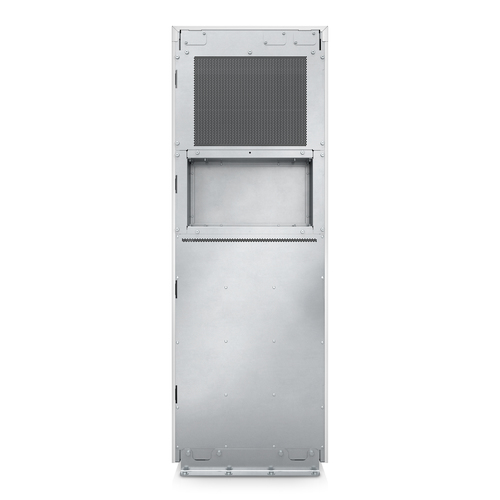

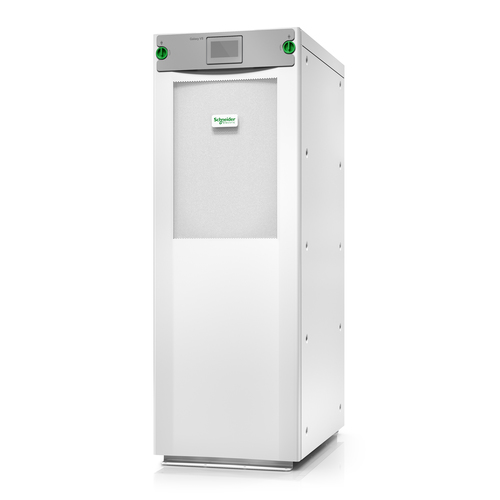

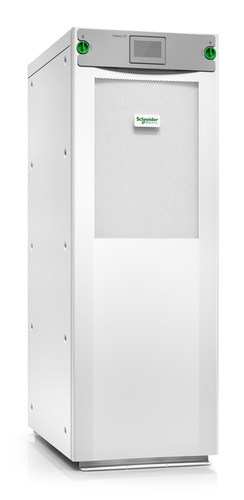

Imagine a UPS that never lets a voltage dip reach your servers. The APC Galaxy VS 15 kVA is a double-conversion, online UPS designed for 3-phase, 400 V environments. It delivers a constant sine-wave output, filters noise, and instantly switches to battery power when the grid fails. For businesses that need reliable power for servers, networking gear, or production lines, this unit removes the fear of unexpected shutdowns and protects expensive equipment from overload and short-circuit events.
Usages
The Galaxy VS fits perfectly in edge data centres that run 15 kW of IT load. It also serves medium-size commercial buildings that host critical HVAC and security systems. In industrial plants, the UPS can protect PLCs, CNC machines, and monitoring equipment that require stable 3-phase power. Any site that needs continuous operation, such as hospitals, telecom hubs, or financial trading floors, can rely on this UPS for seamless power continuity.
Benefits
- Zero interruption - your servers stay online even when the grid drops.
- Lower energy cost - Eco mode reduces power consumption during normal operation.
- Easy expansion - add up to three extra battery strings for longer runtime.
- Quiet operation - 55 dB noise level keeps the workspace comfortable.
- Built-in network management - monitor and control the UPS from any browser.
Key Features
- 15 kVA / 15 kW continuous power rating.
- Double-conversion (online) topology for pure sine-wave output.
- Three-phase input and output, 400 V nominal.
- Input power factor of 0.99 for efficient grid use.
- THD 3 % on both input and output for clean power.
- One 9 Ah smart modular battery, expandable to four strings.
- SmartSlot for optional communication or power modules.
- LCD display with audible alarms for quick status checks.
- Integrated dust filter to protect internal components.
- IP20 enclosure, tower form factor, 330 kg weight.
Specifications
| Features |
| Audible alarm(s) |
Yes |
| Power protection features |
Overload, Short circuit |
| Noise level |
55 dB |
| Input current Total Harmonic Distortion (THD) |
3% |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| ECO mode |
Yes |
| Crest factor |
2.5:1 |
| Input power factor |
0.99 |
| Number of output phases |
3 |
| Number of input phases |
3 |
| Maximum current |
27 A |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
415 V |
| Output operation voltage (min) |
380 V |
| Input frequency |
40/70 Hz |
| Input operation voltage (max) |
460 V |
| Input operation voltage (min) |
340 V |
| Waveform |
Sine |
| Output power |
15000 W |
| Output power capacity |
15 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| SmartSlot |
Yes |
| AC outlet types |
Hard Wire 3-wire (1PH + N + G), Hard Wire 4-wire (3PH + G) |
| Battery |
| Battery voltage |
480 V |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| International Protection (IP) code |
IP20 |
| Display type |
LCD |
| Product colour |
White |
| Form factor |
Tower |
| Operational conditions |
| Non-operating altitude |
0 - 3000 m |
| Operating altitude |
0 - 1000 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-15 - 40 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 60721-4-2 Level 2M2, UL 1778 5th edition |
| Packaging content |
| Quick installation guide |
Yes |
| Weight & dimensions |
| Weight |
330 kg |
| Height |
1485 mm |
| Depth |
847 mm |
| Width |
521 mm |
| Packaging data |
| Package weight |
360 kg |
| Package height |
1680 mm |
| Package depth |
990 mm |
| Package width |
640 mm |
| Other features |
| Operating temperature (T-T) |
0 - 40 °C |
