Imagine a power outage that shuts down your servers in seconds. With the APC Galaxy VS UPS 10 kVA Double-Conversion Online, 3-Phase, 400V you keep every machine running, every data packet safe, and every deadline met. This unit is a high-capacity, online UPS that delivers clean, uninterrupted power to critical equipment. If you have ever lost work or revenue because of a brief voltage dip, you need this protection now.
APC Galaxy VS UPS 10 kVA Double-Conversion Online, 3-Phase, 400V
The main problem it solves is unstable or missing power that can damage servers, networking gear, and industrial controls. Unreliable power leads to downtime, data loss, and costly repairs. This UPS provides a double-conversion design that isolates your load from any input fluctuation, giving you a steady sine wave at all times. It also offers easy expansion, built-in network management, and a 5 8 start-up service to get you up and running fast.
Benefits
- Zero interruption during outages, so your business never stops.
- Clean sine-wave output protects sensitive electronics from damage.
- Expandable battery modules give you longer run time when you need it.
- Built-in EcoStruxure Ready lets you monitor power health from any device.
- Low noise level (55 dB) keeps the workspace comfortable.
Usages
This UPS is perfect for small and medium data centers that run 3-phase equipment. It also fits manufacturing floors where CNC machines need constant power. Office IT rooms, server racks, and telecom closets benefit from its reliable output. Any commercial or industrial site that cannot afford a power glitch will find this unit a solid choice.
Key Features
- 10 kVA / 10 kW capacity for heavy loads.
- Double-conversion (online) topology for continuous power conditioning.
- Three-phase input and output, 400 V nominal.
- Input power factor 0.99 and THD 3 % for high efficiency.
- One smart 7 Ah modular battery, expandable to two strings.
- LCD display with audible alarms for instant status alerts.
- SmartSlot for optional communication cards.
- IP20 enclosure, tower form factor, 245 kg weight.
- Eco mode to reduce energy consumption during normal operation.

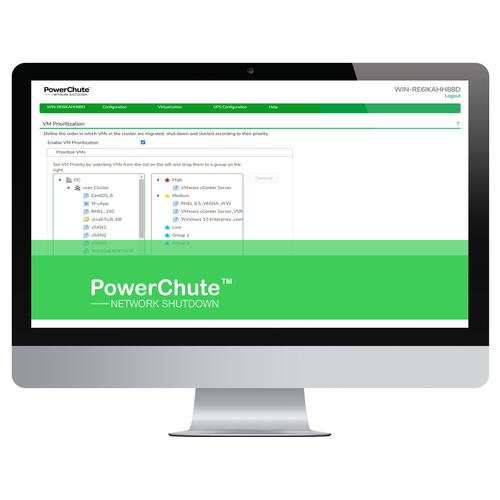

- Integrated network management compatible with EcoStruxure.
Specifications
| Features |
| Audible alarm(s) |
Yes |
| Power protection features |
Overload, Short circuit |
| Noise level |
55 dB |
| Input current Total Harmonic Distortion (THD) |
3% |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| ECO mode |
Yes |
| Crest factor |
2.5:1 |
| Input power factor |
0.99 |
| Number of output phases |
3 |
| Number of input phases |
3 |
| Maximum current |
18 A |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
415 V |
| Output operation voltage (min) |
380 V |
| Input frequency |
40/70 Hz |
| Input operation voltage (max) |
460 V |
| Input operation voltage (min) |
340 V |
| Waveform |
Sine |
| Output power |
10000 W |
| Output power capacity |
10 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| SmartSlot |
Yes |
| AC outlet types |
Hard Wire 4-wire (3PH + G), Hard Wire 5-wire (3PH + N + G) |
| Battery |
| Battery voltage |
480 V |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| International Protection (IP) code |
IP20 |
| Display type |
LCD |
| Product colour |
White |
| Form factor |
Tower |
| Operational conditions |
| Non-operating altitude |
0 - 3000 m |
| Operating altitude |
0 - 1000 m |
| Storage relative humidity (H-H) |
10 - 80% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-15 - 40 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, FCC Part 15 Class A, IEC 60721-4-2 Level 2M2, UL 1778 5th edition |
| Packaging content |
| Quick installation guide |
Yes |
| Weight & dimensions |
| Weight |
245 kg |
| Height |
1485 mm |
| Depth |
847 mm |
| Width |
333 mm |
| Packaging data |
| Package weight |
270 kg |
| Package height |
1690 mm |
| Package depth |
990 mm |
| Package width |
640 mm |
| Other features |
| Operating temperature (T-T) |
0 - 40 °C |
