When a UPS needs maintenance, the power to critical equipment can drop or stop. That loss can shut down servers, damage data, or halt production lines. The risk is higher for businesses that cannot afford any downtime. The APC Service Bypass Panel 125A 20 kVA Hard Wire 5-Wire 200-240V gives you a safe way to isolate the UPS while keeping power flowing, so your operations stay online during service.

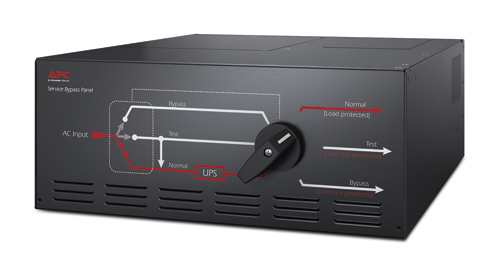

APC Service Bypass Panel 125A 20 kVA Hard Wire 5-Wire 200-240V with APC
This panel is a hard-wired bypass device that lets you disconnect a Smart-UPS without losing power to the load. It is built for 125 A and 20 kVA capacity, supporting 200-240 V input and output. If your UPS needs a breaker change, firmware upgrade, or any repair, the panel steps in and carries the load safely. Without this APC accessory, you would have to shut down equipment or risk an unsafe manual bypass.
Usages
The bypass panel fits in data centers where servers run 24 hours a day. It works for industrial control rooms that rely on continuous power for machinery. It is also useful in hospital IT closets, where patient monitoring systems cannot lose power. Anywhere a UPS is installed and must be serviced without interrupting the load, this panel provides a reliable solution.
Benefits
- Keep critical equipment running while the UPS is offline.
- Reduce risk of data loss or production downtime.
- Simple hard-wire connection saves installation time.
- Meets safety standards, protecting staff and hardware.
- Compatible with multiple voltage ranges for flexible use.
Key Features
- Maximum current rating of 125 A.
- 20 kVA power capacity for heavy loads.
- Supports 200-240 V input and output.
- Hard-wire 5-wire (3P + N + E) outlet type.
- Built-in overload protection.
- Black tower form factor for easy mounting.
- Operates from -4 F to 122 F.
- Certified by CSA, UL, IEC, and other standards.
- Designed for altitude up to 4,500 m.
- Weight of 19.3 kg for stable installation.
Specifications
| Features |
| Maximum current |
125 A |
| Input frequency |
50/60 Hz |
| Input operation voltage (max) |
240 V |
| Input operation voltage (min) |
200 V |
| Output power capacity |
20 kVA |
| Ports & interfaces |
| AC outlet types |
Hard Wire 5-wire (3P + N + E) |
| Design |
| Product colour |
Black |
| Form factor |
Tower |
| Operational conditions |
| Non-operating altitude |
0 - 15000 m |
| Operating altitude |
0 - 4500 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-40 - 65 °C |
| Operating temperature (T-T) |
-4 - 122 °F |
| Certificates |
| Certification |
CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778 |
| Compliance certificates |
RoHS |
| Weight & dimensions |
| Weight |
19.3 kg |
| Height |
178 mm |
| Depth |
554 mm |
| Width |
432 mm |
| Packaging data |
| Package weight |
31.4 kg |
| Other features |
| Package dimensions (WxDxH) |
610 x 845 x 305 mm |
| Operating temperature (T-T) |
-4 - 122 °F |
| Overload protection |
Yes |
