Power outages and voltage spikes can shut down servers, lose data, and damage equipment. When this happens, your business can lose money and reputation. You need a solution that works fast and never interrupts your workflow. The APC Smart-UPS Line-Interactive Sine 220V Rackmount UPS gives you clean, reliable power so your devices stay on long enough to shut down safely.
APC Smart-UPS Line-Interactive Sine 220V Rackmount UPS with APC
Imagine a small box that sits in your server rack and instantly protects every plug inside. This UPS is built for 220 V line-interactive power and delivers a true sine wave, so sensitive gear runs like on normal mains. If the grid falters, APC steps in with battery power, giving you minutes to save work or keep critical services alive. The unit fits a standard 2U rack, taking only 85 mm of height, so you save space.
Usages
Use it in a data-center rack to protect servers, storage arrays, and switches. It works for small office networks, point-of-sale terminals, and medical monitoring equipment that cannot afford a sudden loss. Install it in telecom cabinets to keep routers and firewalls online during storms. Even a home lab with a few workstations can benefit from the rackmount design.
Benefits
- Keeps your equipment running during short outages, preventing data loss.
- Reduces wear on devices by smoothing voltage spikes with AVR.
- Provides audible and LCD alerts so you know exactly when power changes.
- Hot-swap batteries let you replace power cells without turning off your gear.
- Remote monitoring via USB, serial or network saves you time and trips to the rack.
Key Features

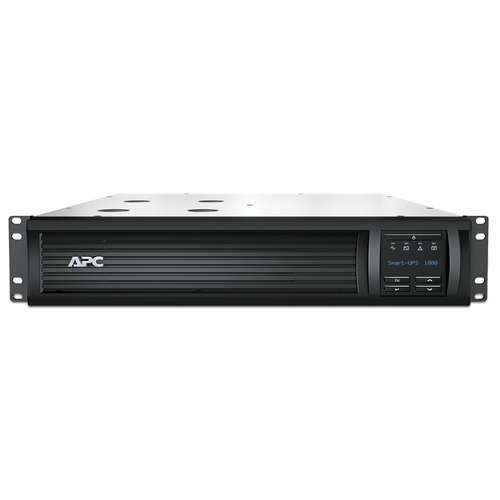

- Intuitive LCD interface with multi-language support.
- Predictive battery replacement date for easy maintenance planning.
- Cold-start capability gives power even when the utility is off.
- SmartSlot for adding management cards or extra features.
- Automatic self-test of batteries every few weeks.
- Adjustable voltage-transfer points to extend battery life.
- Boost and Trim AVR correct low and high voltage without using the battery.
- Hot-swappable, user-replaceable batteries for quick service.
- Network-manageable via APC InfraStruXure Central.

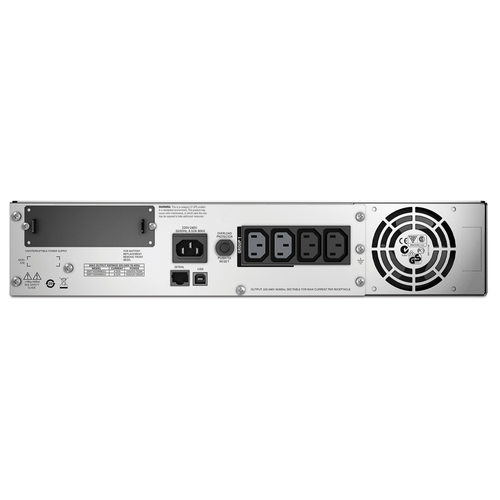

- Four C13 outlets and a C14 input for flexible cabling.
Specifications
| Features |
| Auto-restart |
Yes |
| Audible alarm(s) |
Yes |
| Noise level |
45 dB |
| Emergency Power Off (EPO) |
O |
| Efficiency |
98.2% |
| Hold time (max) |
2 ms |
| Surge energy rating |
459 J |
| Automatic Voltage Regulation (AVR) |
Yes |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
220 V |
| Input frequency |
50/60 Hz |
| Input operation voltage (max) |
302 V |
| Input operation voltage (min) |
151 V |
| Waveform |
Sine |
| UPS topology |
Line-Interactive |
| Ports & interfaces |
| SmartSlot |
Yes |
| Serial interface type |
RJ-45 |
| Serial interface |
Yes |
| USB port |
Yes |
| Number of output IEC jumpers |
2 |
| AC outlets quantity |
4 AC outlet(s) |
| Power plug |
C14 coupler |
| AC outlet types |
C13 coupler |
| Battery |
| Battery capacity |
336 VAh |
| Cold start |
Yes |
| Automatic battery test |
Yes |
| Hot-swap battery |
Yes |
| Battery recharge time |
3 h |
| Battery life (max) |
6 year(s) |
| Typical backup time at half load |
31.3 min |

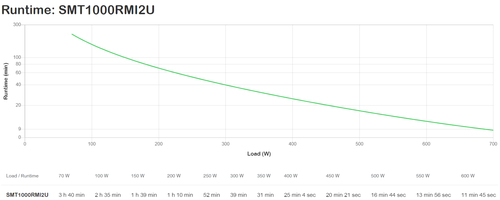

| Typical backup time at full load |
8.7 min |
| Battery capacity |
336 VAh |
| Battery capacity |
336 VAh |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| LED indicators |
Yes |
| Rack capacity |
2U |
| Product colour |
Black |
| Form factor |
Rackmount |
| Operational conditions |
| Non-operating altitude |
0 - 15000 m |
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, EOLI |
| Compliance certificates |
RoHS |
| Packaging content |
| Quick installation guide |
Yes |
| Cables included |
RS-232, USB cable |
| Rack mount kit |
Yes |
| Sustainability |
| Sustainability certificates |
Green Premium |
| Weight & dimensions |
| Weight |
28.2 kg |
| Height |
85 mm |
| Depth |
475 mm |
| Width |
480 mm |
| Packaging data |
| Package weight |
31.4 kg |
| Package height |
251 mm |
| Package depth |
603 mm |
| Package width |
594 mm |
| Software CD |
Yes |
| Other features |
| Nominal input voltage |
230 V |
| Nominal output voltage |
230 V |
| Operating temperature (T-T) |
0 - 40 °C |
