Power cuts and voltage spikes can shut down your servers in seconds. The APC Smart-UPS On-Line 2200VA, Rackmount 2U 230V 8 Outlets gives you clean, uninterrupted power so your equipment stays on and your data stays safe. If you run a small data centre or a network closet, this UPS stops downtime before it starts.

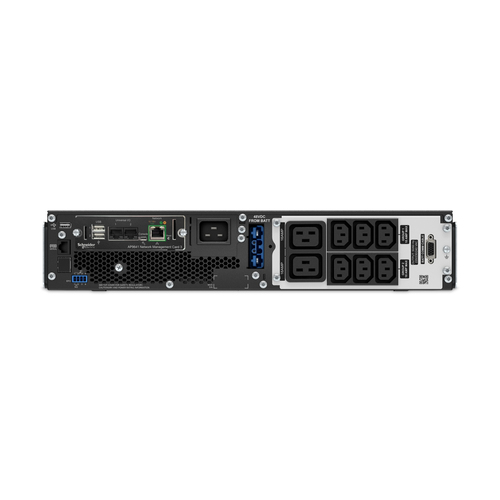

APC Smart-UPS On-Line 2200VA, Rackmount 2U 230V 8 Outlets
Many businesses lose money when a sudden outage forces servers to reboot. The loss of productivity and the risk of data corruption are real concerns. This APC unit UPS solves the problem by converting incoming AC to a stable sine-wave output through double-conversion technology. It gives you a reliable power source, protects against surges, and lets you shut down equipment gracefully with PowerChute software.
Usages of APC
The UPS fits in a standard 2U rack, so it works well in server rooms, telecom closets, and edge locations. You can connect routers, switches, storage arrays, and small servers to the eight outlets. It also powers networking gear that needs a pure sine wave, such as VoIP phones and firewalls. Because it includes a network management card, you can monitor power status from a central console or a cloud platform.
Benefits
- Stops unexpected shutdowns and protects data integrity.
- Provides clean sine-wave power for sensitive IT equipment.
- Allows remote monitoring and automatic shutdown via network card.
- Reduces risk of hardware damage from surges and spikes.
- Extends runtime with external lithium-ion batteries.
Key Features
- 2200 VA / 2700 W double-conversion online topology.
- Eight AC outlets - six C13 and two C19 couplers.
- Built-in Network Management Card for remote monitoring.
- PowerChute Network Shutdown for graceful server shutdown.
- Noise level of 50 dB for quiet rack operation.
- Surge energy rating of 432 J protects against spikes.
- IP20 protection rating suitable for indoor rack use.
- 1.8 m power cable and 2U rack depth for easy installation.
- Operating temperature range 0 C to 40 C.
- Five-year warranty for peace of mind.
Specifications
| Features |
| Noise level |
50 dB |
| Crest factor |
3:1 |
| Heat dissipation |
317 BTU/h |
| Surge energy rating |
432 J |
| Output operation voltage (min) |
230 V |
| Input operation voltage (min) |
230 V |
| Waveform |
Sine |
| Output power |
2700 W |
| Output power capacity |
3 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| USB port |
Yes |
| AC outlets quantity |
8 AC outlet(s) |
| Power plug |
BS1363A |
| AC outlet types |
C13 coupler, C19 coupler |
| Design |
| International Protection (IP) code |
IP20 |
| Cable length |
1.8 m |
| Rack capacity |
2U |
| Product colour |
Black |
| Form factor |
Desktop |
| Operational conditions |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-20 - 50 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
| Weight |
22 kg |
| Height |
432 mm |
| Depth |
508 mm |
| Width |
85 mm |
| Packaging data |
| Package weight |
29.6 kg |
| Package height |
246 mm |
| Package depth |
594 mm |
| Package width |
749 mm |
| Other features |
| Operating temperature (T-T) |
0 - 40 °C |
