Imagine a power outage that shuts down your server in the middle of a critical transaction. That moment can mean lost data, angry customers, and costly downtime. The APC Smart-UPS On-Line 2200VA Rackmount 2U Double-Conversion 1980W is a high-performance UPS that keeps your equipment running without interruption. It is built for rack-mounted servers, storage arrays, and network switches that cannot afford a power glitch. If you need reliable, clean power and a safe shutdown path, this unit is the answer.

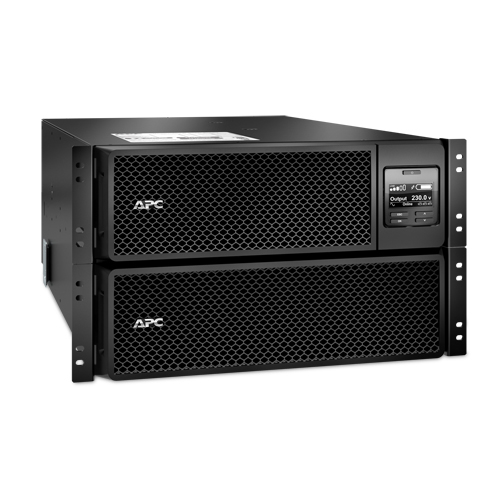

APC Smart-UPS On-Line 2200VA Rackmount 2U Double-Conversion 1980W
Power loss can corrupt files, damage hardware, and halt business operations. For IT managers, every minute of downtime translates to revenue loss and reputational risk. This UPS solves the problem by delivering continuous, double-converted power that never switches off, even when the utility fails. The built-in network card lets you monitor the unit remotely and trigger a graceful shutdown with PowerChute software, protecting data and hardware before the battery runs out.
Usages of APC
The APC Smart-UPS fits into a standard 6U rack and powers data-center servers that run 24/7. It can also protect network switches, storage devices, and telecom equipment in a server room. Small to medium businesses use it to keep point-of-sale systems online during brief outages. IT labs rely on the unit to supply clean sine-wave power for testing hardware without interference. Anywhere you need uninterrupted power for critical IT gear, this UPS is a solid choice.
Benefits
- Zero transfer time protects applications from sudden power loss.
- Remote monitoring lets you see status and battery health from any browser.
- Automatic graceful shutdown prevents data corruption during long outages.
- Hot-swap batteries extend service life without powering down equipment.
- Built-in surge protection shields devices from voltage spikes.
Key Features
- Double-conversion online topology for pure sine-wave output.
- 2200 VA / 1980 W capacity supports high-density rack loads.

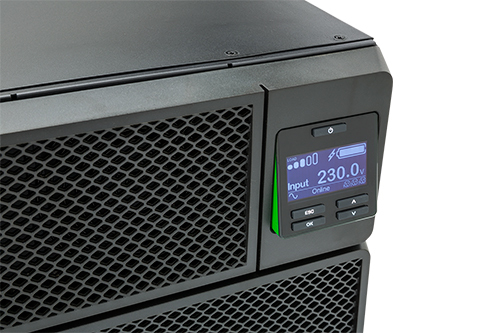

- 2U rackmount form factor with tiltable LCD for easy viewing.
- Integrated network management card with SNMP and web interface.
- PowerChute Network Shutdown software for controlled server power-off.

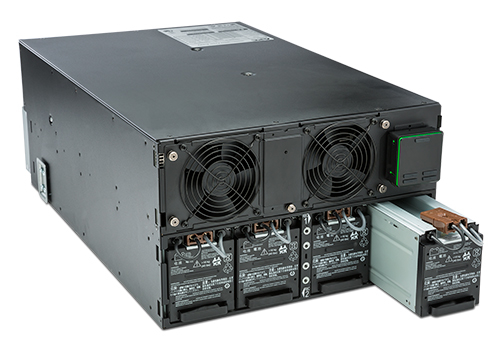

- Hot-swap internal battery cartridges for quick replacement.
- Four-post rail kit included for secure 6U rack installation.
- 10 AC outlets (C13 and C19) to connect multiple devices.
- 55 dB noise level suitable for equipment rooms.
- 94.6 % efficiency reduces energy cost during normal operation.
Specifications
| Features |
| Auto-restart |
Yes |
| Audible alarm(s) |
Yes |
| Surge protection |
Yes |
| Noise level |
55 dB |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Emergency Power Off (EPO) |
Yes |
| Crest factor |
3:1 |
| Efficiency |
94.6% |
| Number of output phases |
1 |
| Surge energy rating |
480 J |
| Output frequency regulation |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
220 V |
| Input frequency |
40 - 70 Hz |
| Input operation voltage (max) |
476 V |
| Input operation voltage (min) |
100 V |
| Waveform |
Sine |
| Output power |
10000 W |
| Output power capacity |
10 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| SmartSlot |
Yes |
| Serial interface type |
RJ-45 |
| Serial interface |
Yes |
| USB port |
Yes |
| Number of output IEC jumpers |
3 |
| AC outlets quantity |
10 AC outlet(s) |
| Power plug |
Hardwire |
| AC outlet types |
C13 coupler, C19 coupler |
| Battery |
| Battery capacity |
1805 VAh |
| Cold start |
Yes |
| Automatic battery test |
Yes |
| Hot-swap battery |
Yes |
| Battery recharge time |
3 h |
| Battery life (max) |
5 year(s) |
| Typical backup time at half load |
11.5 min |
| Typical backup time at full load |
3.8 min |
| Battery capacity |
1805 VAh |
| Battery capacity |
1805 VAh |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| LED indicators |
Yes |
| Display type |
LCD |
| Rack capacity |
6U |
| Product colour |
Black |
| Form factor |
Rackmount/Tower |
| Operational conditions |
| Non-operating altitude |
0 - 15000 m |
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH |
| Compliance certificates |
RoHS |
| Packaging content |
| Quick installation guide |
Yes |
| Cables included |
USB cable |
| Rack mount kit |
Yes |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Weight |
111.8 kg |
| Height |
263 mm |
| Depth |
715 mm |
| Width |
432 mm |
| Packaging data |
| Package weight |
130 kg |
| Package height |
461 mm |
| Package depth |
1000 mm |
| Package width |
600 mm |
| Software CD |
Yes |
| Warranty card |
Yes |
| Temperature sensor |
Yes |
| Bracket |
Yes |
| Other features |
| Packaging content |
Web/SNMP Management Card |
| Nominal input voltage |
230 V |
| Nominal output voltage |
230 V |
| Operating temperature (T-T) |
0 - 40 °C |
| Interface |
RJ-45 10/100 Base-T |
