Imagine a sudden power drop that shuts down your server, loses unsaved work, and brings your business to a halt. The APC Smart-UPS On-Line 2200VA Tower 230V 10 Outlets Pure Sine is a high-performance backup unit that keeps your critical equipment running when the grid fails. It supplies clean, pure sine wave power, protects against surges, and gives you time to shut down safely. If you cannot afford downtime, this UPS is the safety net you need.

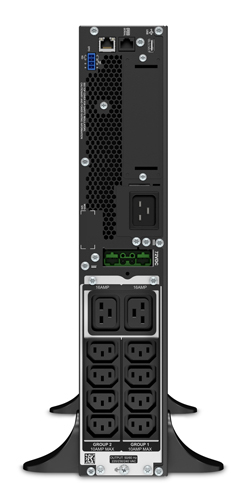

APC Smart-UPS On-Line 2200VA Tower 230V 10 Outlets Pure Sine
Power interruptions can corrupt data, damage hardware, and cost you money. The problem matters most to anyone who runs servers, networking gear, or high-end workstations. This APC UPS solves the issue by delivering continuous, filtered electricity through double-conversion technology. It also offers an automatic shutdown feature that protects your devices and saves you from costly repairs.
Usages of APC
The tower can be placed in a small office to protect a desktop, a router, and a NAS. It fits in a server room to keep a rack of blade servers online during brief outages. IT managers use it with the optional Network Management Card to shut down virtual machines gracefully. It also works well in a lab environment where sensitive test equipment needs stable power.
Benefits
- Provides up to 11 minutes of backup at half load, enough to save work and close applications.
- Pure sine wave output protects delicate electronics that need clean power.
- Automatic voltage regulation prevents damage from spikes or sags.
- Web-based management lets you monitor status from any browser.
- Three-year warranty and a two-year battery warranty give peace of mind.
Key Features
- 2200 VA / 1980 W continuous power capacity.
- Double-conversion online topology for zero transfer time.
- 10 AC outlets (8 C13, 2 C19) for diverse equipment.
- SmartSlot for optional network management card.
- Auto-restart after power return.
- Built-in LCD display shows load, battery, and alerts.
- Surge protection with 340 J energy rating.
- Efficiency of 92.2 % reduces energy cost.
- Hot-swap battery for easy replacement without shutdown.
- USB and RJ-45 ports for local and remote monitoring.
Specifications
| Features |
| Auto-restart |
Yes |
| Audible alarm(s) |
Yes |
| Web-based management |
Yes |
| Surge protection |
Yes |
| Noise level |
55 dB |
| Emergency Power Off (EPO) |
Yes |
| Crest factor |
3:1 |
| Efficiency |
92.2% |
| Surge energy rating |
340 J |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
220 V |
| Input frequency |
40/70 Hz |
| Input operation voltage (max) |
275 V |
| Input operation voltage (min) |
100 V |
| Waveform |
Sine |
| Output power |
1980 W |
| Output power capacity |
2.2 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| SmartSlot |
Yes |
| Serial interface type |
RJ-45 |
| Serial interface |
Yes |
| USB port |
Yes |
| Number of output IEC jumpers |
2 |
| AC outlets quantity |
10 AC outlet(s) |
| Power plug |
C20 coupler |
| AC outlet types |
C13 coupler, C19 coupler |
| Battery |
| Battery capacity |
367 VAh |
| Cold start |
Yes |
| Automatic battery test |
Yes |
| Hot-swap battery |
Yes |
| Battery recharge time |
3 h |
| Battery life (max) |
5 year(s) |
| Typical backup time at half load |
11.6 min |
| Typical backup time at full load |
3.9 min |
| Number of batteries supported |
1 |
| Battery capacity |
367 VAh |
| Battery capacity |
367 VAh |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| International Protection (IP) code |
IP20 |
| LED indicators |
Yes |
| Display type |
LCD |
| Cable length |
2.44 m |
| Product colour |
Black |
| Form factor |
Rackmount/Tower |
| Operational conditions |
| Non-operating altitude |
0 - 15000 m |
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH |
| Compliance certificates |
RoHS |
| Packaging content |
| Quick installation guide |
Yes |
| Cables included |
USB cable |
| Sustainability |
| Sustainability certificates |
ENERGY STAR, Green Premium |
| Weight & dimensions |
| Weight |
25 kg |
| Height |
432 mm |
| Depth |
584 mm |
| Width |
85 mm |
| Packaging data |
| Package weight |
30.8 kg |
| Package height |
246 mm |
| Package depth |
810 mm |
| Package width |
599 mm |
| Software CD |
Yes |
| Warranty card |
Yes |
| Bracket |
Yes |
| Other features |
| Packaging content |
Power cord Removable support feet |
| Nominal input voltage |
230 V |
| Nominal output voltage |
230 V |
| Operating temperature (T-T) |
0 - 40 °C |
| Interface |
SmartSlot |
