Imagine a power outage that shuts down your servers in seconds. That loss can cost data, money, and reputation. The APC Smart UPS On Line 5kVA Rackmount 3U 230V 4500W is a high-capacity battery backup that protects critical equipment. It delivers clean, uninterrupted power so you can keep work running even when the grid fails.

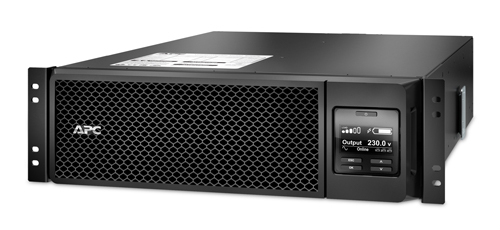

APC Smart UPS On Line 5kVA Rackmount 3U 230V 4500W
Businesses lose productivity when power drops or spikes. A sudden shutdown can corrupt files and damage hardware. This problem matters because every minute of downtime adds expense and risk. The APC UPS solves it by converting incoming AC to stable sine-wave power and storing energy in a sealed lead-acid battery. When the mains falters, the unit switches instantly, giving you minutes to finish tasks or shut down safely.
Usages of APC
The UPS fits into a standard 3U rack, making it ideal for data centers, server rooms, and network closets. Use it to protect physical servers, storage arrays, and networking gear. It also works well for virtualization hosts, hyper-converged clusters, and critical office equipment such as PBX systems. Anywhere you need reliable power for IT hardware, this APC unit can be hard-wired and monitored over the network.
Benefits
- Instant power transfer prevents data loss during outages.
- Pure sine-wave output protects sensitive electronics from distortion.
- Network Management Card lets you monitor status from any browser.
- Hot-swap battery design reduces maintenance downtime.
- Built-in surge protection shields against voltage spikes.
Key Features
- 5 kVA / 4500 W double-conversion online topology.
- Three-phase 230 V input with multiple hard-wire options.
- Embedded Network Management Card for remote monitoring.
- PowerChute Network Shutdown for graceful server power-off.
- SmartSlot for optional I/O or communication cards.
- 93.8 % efficiency and 55 dB noise level.
- LED LCD display shows load, battery, and alarms.
- Auto-restart and Emergency Power Off (EPO) support.
- Hot-swap, sealed lead-acid battery with 1.5 h recharge.
- 3-year UPS warranty and 2-year battery warranty.
Specifications
| Features |
| Auto-restart |
Yes |
| Audible alarm(s) |
Yes |
| Surge protection |
Yes |
| Noise level |
55 dB |
| Emergency Power Off (EPO) |
Yes |
| Crest factor |
3:1 |
| Efficiency |
93.8% |
| Surge energy rating |
480 J |
| Output frequency regulation |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
220 V |
| Input frequency |
40 - 70 Hz |
| Input operation voltage (max) |
275 V |
| Input operation voltage (min) |
100 V |
| Waveform |
Sine |
| Output power |
4500 W |
| Output power capacity |
5 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| SmartSlot |
Yes |
| Serial interface type |
RJ-45 |
| Serial interface |
Yes |
| USB port |
Yes |
| Power plug |
Hardwire |
| AC outlet types |
Hard Wire 3-wire (2PH + G) |
| Battery |
| Battery capacity |
845 VAh |
| Cold start |
Yes |
| Automatic battery test |
Yes |
| Hot-swap battery |
Yes |
| Battery recharge time |
1.5 h |
| Battery life (max) |
5 year(s) |
| Typical backup time at half load |
11.8 min |
| Typical backup time at full load |
4 min |
| Number of batteries supported |
1 |
| Battery capacity |
845 VAh |
| Battery capacity |
845 VAh |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| International Protection (IP) code |
IP20 |
| LED indicators |
Status |
| Display type |
LCD |
| Rack capacity |
3U |
| Product colour |
Black |
| Form factor |
Rackmount |
| Operational conditions |
| Non-operating altitude |
0 - 15000 m |
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
REACH, CE, CE Mark, CSA C22.2 No.107.3-05, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, IRAM, NOM, RCM, UL |
| Compliance certificates |
RoHS |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Weight |
55.8 kg |
| Height |
130 mm |
| Depth |
719 mm |
| Width |
432 mm |
| Packaging data |
| Package weight |
68 kg |
| Package height |
330 mm |
| Package depth |
960 mm |
| Package width |
610 mm |
| Other features |
| Operating temperature (T-T) |
0 - 40 °C |
| Output connections |
1x Hard Wire 3-wire (2PH + G) 1x Hard Wire 3-wire (H N + G) |
| Battery type |
APCRBC140 |
| Number of phases |
3 |
