Power outages can shut down your servers in seconds, costing time and money. The APC Smart-UPS On-Line 5kVA Tower 230V with 12 IEC Outlets gives you clean, uninterrupted power for critical equipment. It is built for IT rooms, small data centers, and any place where a single loss of electricity could halt operations. With pure sine wave output and fast battery response, you keep computers, networking gear, and storage alive until the grid returns.
APC Smart-UPS On-Line 5kVA Tower 230V with 12 IEC Outlets
Unstable mains voltage and sudden blackouts threaten data loss and downtime. This matters because every minute of interruption can affect customers and revenue. The APC tower UPS solves the issue with double-conversion online technology that isolates your equipment from input fluctuations. It also includes a network management card, so you can monitor power status remotely and shut down servers safely before the battery runs out.
Benefits
- Continuous power keeps your business applications running without interruption.
- Pure sine wave output protects sensitive electronics from distortion.
- Remote monitoring lets you see alerts and battery health from any computer.
- Automatic shutdown software prevents data corruption during long outages.
- 12 IEC outlets provide flexible connections for servers, switches, and storage.
Usages
Use this UPS in a server rack to protect a small data center, in a network closet to keep routers and firewalls online, or in an office IT cabinet to safeguard workstations and backup devices. It also works well for audio-visual equipment in conference rooms where power quality is critical. The built-in SmartSlot lets you add dry-contact I/O for building management integration.
Key Features
- 5 kVA / 4500 W double-conversion online topology.
- Wide input voltage range 100 V-275 V, 40-70 Hz.
- 12 IEC outlets (6 C13, 4 C19, 2 jumpers).
- Embedded Network Management Card with RJ-45 and USB.
- PowerChute Network Shutdown for graceful server power-off.
- SmartSlot for optional I/O or communication cards.
- 94 % efficiency and 480 J surge protection.
- Hot-swap, sealed lead-acid battery with 1.5 h recharge.

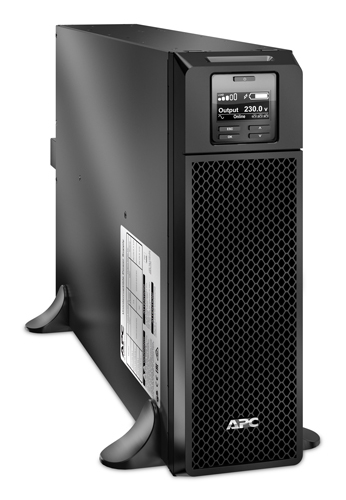

- LCD display with status LEDs for easy monitoring.
- 3-year UPS warranty and 2-year battery warranty.
Specifications
| Features |
| Auto-restart |
Yes |
| Audible alarm(s) |
Yes |
| Surge protection |
Yes |
| Noise level |
55 dB |
| Emergency Power Off (EPO) |
Yes |
| Crest factor |
3:1 |
| Efficiency |
94.1% |
| Surge energy rating |
480 J |
| Output frequency regulation |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
220 V |
| Input frequency |
40 - 70 Hz |
| Input operation voltage (max) |
275 V |
| Input operation voltage (min) |
100 V |
| Waveform |
Sine |
| Output power |
4500 W |
| Output power capacity |
5 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| SmartSlot |
Yes |
| Serial interface type |
RJ-45 |
| Serial interface |
Yes |
| USB port |
Yes |
| Number of output IEC jumpers |
2 |
| AC outlets quantity |
12 AC outlet(s) |
| Power plug |
Hardwire |
| AC outlet types |
C13 coupler, C19 coupler |
| Battery |
| Battery capacity |
845 VAh |
| Cold start |
Yes |
| Automatic battery test |
Yes |
| Hot-swap battery |
Yes |
| Battery recharge time |
1.5 h |
| Battery life (max) |
5 year(s) |
| Typical backup time at half load |
11.8 min |
| Typical backup time at full load |
4 min |
| Battery capacity |
845 VAh |
| Battery capacity |
845 VAh |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| International Protection (IP) code |
IP20 |
| LED indicators |
Status |
| Display type |
LCD |
| Product colour |
Black |
| Operational conditions |
| Non-operating altitude |
0 - 15000 m |
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE |
| Compliance certificates |
RoHS |
| Packaging content |
| Quick installation guide |
Yes |
| Cables included |
USB cable |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Weight |
54.4 kg |
| Height |
432 mm |
| Depth |
719 mm |
| Width |
130 mm |
| Packaging data |
| Package weight |
63.6 kg |
| Package height |
330 mm |
| Package depth |
960 mm |
| Package width |
610 mm |
| Software CD |
Yes |
| Warranty card |
Yes |
| Temperature sensor |
Yes |
| Other features |
| Packaging content |
Comms cable Removable support feet Web/SNMP Management Card |
| Operating temperature (T-T) |
0 - 40 °C |
