Power cuts and voltage spikes can shut down servers in seconds. When that happens you lose data, waste time and hurt your business. You need a device that keeps your equipment alive and lets you see its status from anywhere. The APC Smart UPS On Line 6kVA 6kW Rackmount 4U 230V Network Card gives you clean power, backup runtime and remote monitoring in one easy package.

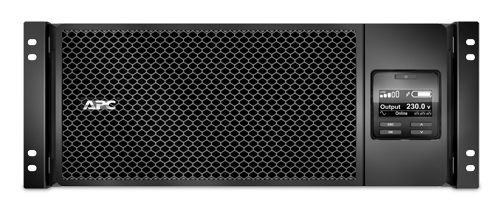

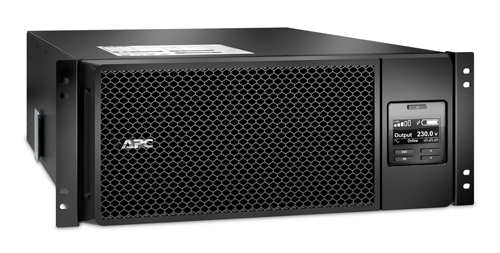

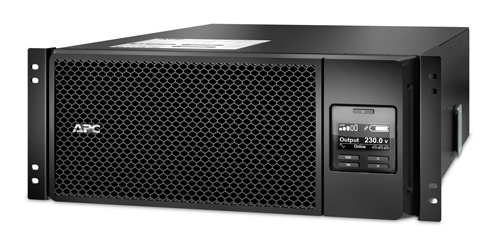

APC Smart UPS On Line 6kVA 6kW Rackmount 4U 230V Network Card with APC
Imagine a UPS that never lets a brief outage touch your servers. This unit is a high-capacity, online UPS built for data centers and server rooms. It converts incoming AC to clean DC and back to pure sine-wave AC, so your hardware runs without distortion. The built-in network card lets you watch voltage, load and battery health from a web browser, and it can trigger an automatic shutdown if power disappears. APC delivers the reliability you need to protect critical data.
Usages
Install the UPS in a 4U rack to protect servers, storage arrays and networking gear. It works well in small data centers that must keep virtual machines running during short outages. Use it in a remote office to keep firewalls, VoIP phones and routers online while a generator starts. The network card also integrates with centralized monitoring tools in larger enterprises, giving IT staff a single view of power health across many sites.
Benefits
- Continuous power prevents server crashes and data loss.
- Remote monitoring lets you see status and receive alerts from any browser.
- Pure sine-wave output runs sensitive equipment without distortion.
- Auto-restart brings devices back online as soon as utility power returns.
- Hot-swap battery design reduces maintenance time and keeps uptime high.
Key Features
- 6 kVA / 6 kW double-conversion online topology.
- Four-U rackmount form factor with hard-wire input.

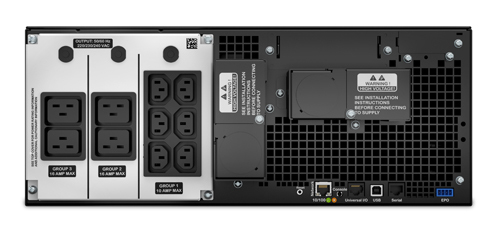

- 10 IEC outlets (6 C13, 4 C19) for diverse equipment.
- Embedded network management card with SNMP and web interface.
- PowerChute Network Shutdown software for graceful server shutdown.
- 94.4 % efficiency and 480 J surge protection.

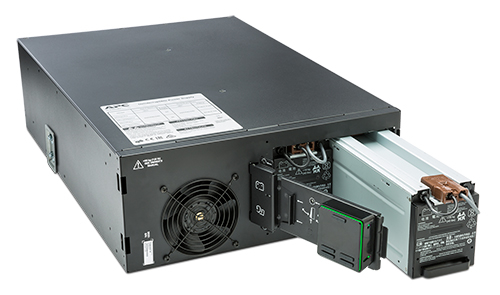

- Hot-swap sealed lead-acid battery with 1.5 h recharge time.
- Auto-restart and Emergency Power Off (EPO) support.

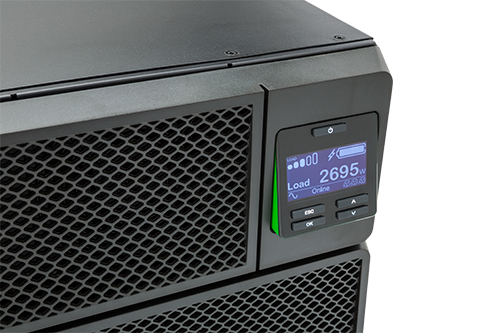

- LCD display with status LEDs for quick visual checks.
- Compliant with ENERGY STAR, CE, RoHS and other certifications.
Specifications
| Features |
| Auto-restart |
Yes |
| Audible alarm(s) |
Yes |
| Surge protection |
Yes |
| Noise level |
55 dB |
| Emergency Power Off (EPO) |
Yes |
| Crest factor |
3:1 |
| Efficiency |
94.4% |
| Number of output phases |
1 |
| Surge energy rating |
480 J |
| Output frequency regulation |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
220 V |
| Input frequency |
40 - 70 Hz |
| Input operation voltage (max) |
275 V |
| Input operation voltage (min) |
100 V |
| Waveform |
Sine |
| Output power |
6000 W |
| Output power capacity |
6 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| SmartSlot |
Yes |
| Serial interface |
Yes |
| USB port |
Yes |
| Number of output IEC jumpers |
2 |
| AC outlets quantity |
10 AC outlet(s) |
| Power plug |
Hardwire |
| AC outlet types |
C13 coupler, C19 coupler |
| Battery |
| Battery capacity |
902 VAh |
| Cold start |
Yes |
| Automatic battery test |
Yes |
| Hot-swap battery |
Yes |
| Battery recharge time |
1.5 h |
| Battery life (max) |
5 year(s) |
| Typical backup time at half load |
8.7 min |
| Typical backup time at full load |
2.5 min |
| Battery capacity |
902 VAh |
| Battery capacity |
902 VAh |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| International Protection (IP) code |
IP20 |
| LED indicators |
Status |
| Display type |
LCD |
| Rack capacity |
4U |
| Product colour |
Black |
| Form factor |
Rackmount |
| Operational conditions |
| Non-operating altitude |
0 - 15000 m |
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE |
| Compliance certificates |
RoHS |
| Packaging content |
| Quick installation guide |
Yes |
| Cables included |
USB cable |
| Rack mount kit |
Yes |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Weight |
60 kg |
| Height |
174 mm |
| Depth |
719 mm |
| Width |
432 mm |
| Packaging data |
| Package weight |
67 kg |
| Package height |
370 mm |
| Package depth |
960 mm |
| Package width |
610 mm |
| Software CD |
Yes |
| Warranty card |
Yes |
| Temperature sensor |
Yes |
| Bracket |
Yes |
| Other features |
| Packaging content |
Web/SNMP Management Card |
| Operating temperature (T-T) |
0 - 40 °C |
