Imagine a power outage hitting your server room while a critical file transfer is in progress. The loss of power could corrupt data, halt business, and cost you time and money. The APC Smart UPS Online 1000VA Rackmount Double Conversion 6 C13 LCD is built to stop that from happening. It gives you clean, uninterrupted power for servers, storage, networking gear and any equipment that cannot afford a sudden shutdown.

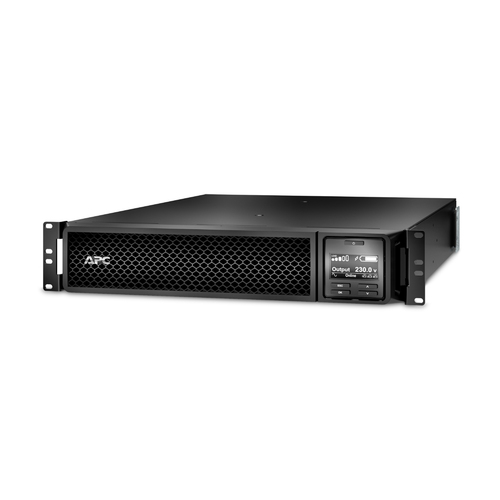

APC Smart UPS Online 1000VA Rackmount Double Conversion 6 C13 LCD
Power spikes, brownouts, and total outages are a real risk for any data center or small office. When power is unstable, hardware can overheat, lose data, or fail completely. This UPS solves the problem by using double-conversion technology that isolates your equipment from any input irregularities. It delivers a pure sine-wave output, switches instantly to battery, and keeps your devices running long enough for a safe shutdown or to ride through a brief outage.
Usages of APC
The unit fits in a standard 2U rack, so it works well in server rooms, telecom closets, and edge locations. Connect it to a rack-mount server, a network switch, a storage array, or a small office PBX. It also powers desktop workstations in a workshop where tools cause voltage fluctuations. Because it has six C13 outlets, you can protect multiple devices from a single rack space.
Benefits
- Zero downtime for critical applications.
- Automatic safe shutdown saves data.
- Extended runtime with optional battery packs.
- Remote monitoring reduces admin effort.
- Hot-swap battery keeps power on while servicing.
Key Features
- Double-conversion (online) topology.
- 1000 VA / 1000 W continuous output.

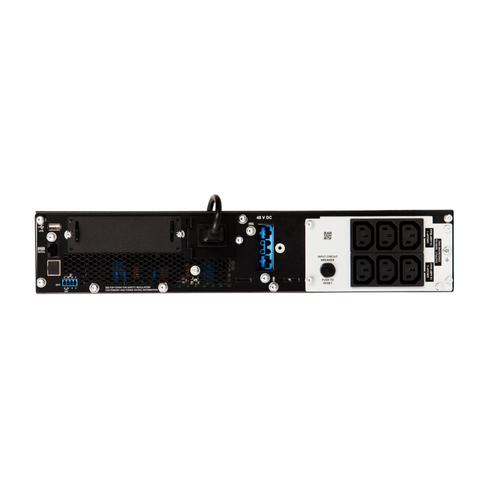

- Six IEC C13 outlets for easy device connection.

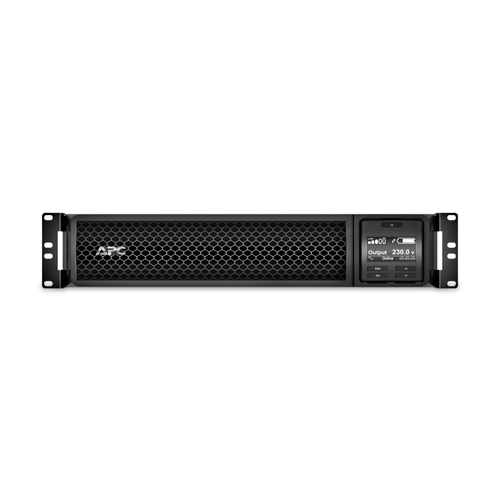

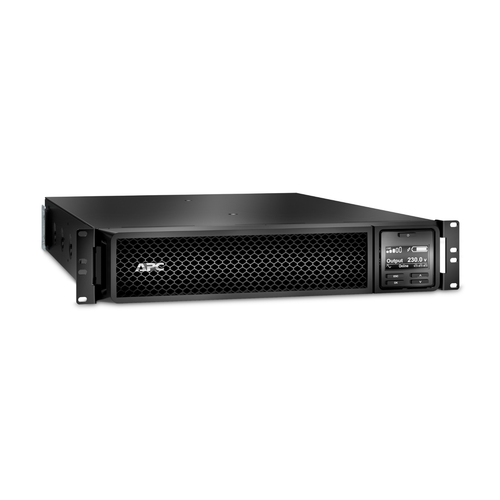

- Tiltable LCD display with color-coded alerts.
- Pre-installed network management card (AP9641) for SNMP monitoring.
- Hot-swap battery cartridge for quick replacement.
- Internal bypass for generator compatibility.
- Surge energy rating 432 J for lightning protection.
- Input voltage range 50-150 V, frequency 40-70 Hz.
- Rackmount 2U form factor with 4-post rail kit.
Specifications
| Features |
| Audible alarm(s) |
Yes |
| Emergency Power Off (EPO) |
Yes |
| Crest factor |
3:1 |
| Surge energy rating |
432 J |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
220 V |
| Input frequency |
40/70 Hz |
| Input operation voltage (max) |
150 V |
| Input operation voltage (min) |
50 V |
| Waveform |
Sine |
| Output power |
1000 W |
| Output power capacity |
1 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| SmartSlot |
Yes |
| Serial interface type |
RJ-45 |
| Serial interface |
Yes |
| USB 2.0 ports quantity |
1 |
| USB port |
Yes |
| AC outlet types |
IEC 60320 |
| Battery |
| Hot-swap battery |
Yes |
| Battery recharge time |
1 h |
| Battery life (max) |
5 year(s) |
| Battery voltage |
48 V |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| International Protection (IP) code |
IP20 |
| LED indicators |
Status |
| Display type |
LCD |
| Cable length |
1.5 m |
| Product colour |
Black |
| Form factor |
Rackmount |
| Operational conditions |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-20 - 50 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
CE, EAC |
| Compliance certificates |
RoHS |
| Sustainability |
| Sustainability certificates |
Green Premium |
| Weight & dimensions |
| Weight |
21 kg |
| Height |
85 mm |
| Depth |
505 mm |
| Width |
432 mm |
| Packaging data |
| Package weight |
29.6 kg |
| Package height |
246 mm |
| Package depth |
749 mm |
| Package width |
594 mm |
| Other features |
| Operating temperature (T-T) |
0 - 40 °C |
