Power outages and voltage spikes can shut down critical equipment, cause data loss, and damage expensive hardware. When a server or medical device stops, you lose productivity, revenue, and sometimes even patient safety. The APC Smart-UPS RT 20kVA Rackmount 12U LCD 230/400V Online UPS gives you clean, uninterrupted power so your devices keep running while the grid recovers.
APC Smart-UPS RT 20kVA Rackmount 12U LCD 230/400V Online UPS with APC
Imagine a power source that never lets your servers blink. This unit is a high-density, double-conversion online UPS that sits in a standard 12U rack. It delivers up to 20 kVA of clean power and can be expanded with extra batteries for longer run time. If the mains fail, the UPS switches instantly, protecting your gear from sudden loss or voltage fluctuations. APCs reputation for reliability means you can trust the system to stay online when you need it most.
Usages
The UPS fits perfectly in data centers that need to keep servers and storage arrays alive. It also works in telecom closets where routers and switches must stay up for continuous communication. Hospitals rely on it to protect life-support equipment and imaging devices. Small manufacturing lines use it to avoid downtime of control panels. Anywhere a rack-mounted device requires stable power, this APC UPS is a solid choice.
Benefits
- Instant power transfer prevents data loss during outages.
- Double-conversion design filters out spikes, sags, and noise.
- Scalable battery modules let you extend runtime as needs grow.
- LCD display and remote management give clear status at a glance.
- Built-in alarms and auto-restart keep the system safe and self-recovering.
Key Features
- 20 kVA (16 kW) continuous output power.
- 12U rackmount form factor with optional tower conversion.
- High efficiency of 93.7 % reduces energy cost.

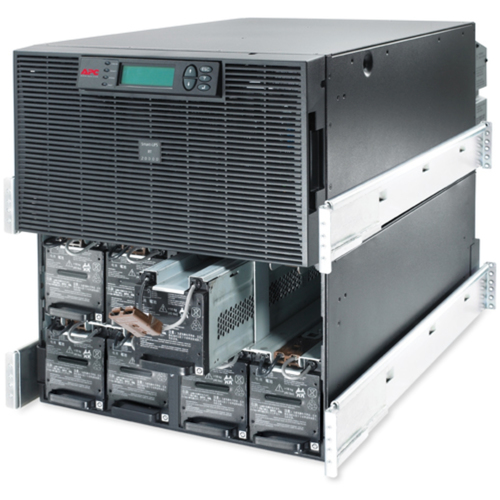

- Hot-swap battery design for zero-downtime replacement.
- LCD panel shows voltage, load, battery status, and alarms.
- Auto-restart and emergency power off (EPO) for safety.
- One Ethernet port and RS-232 serial for remote monitoring.

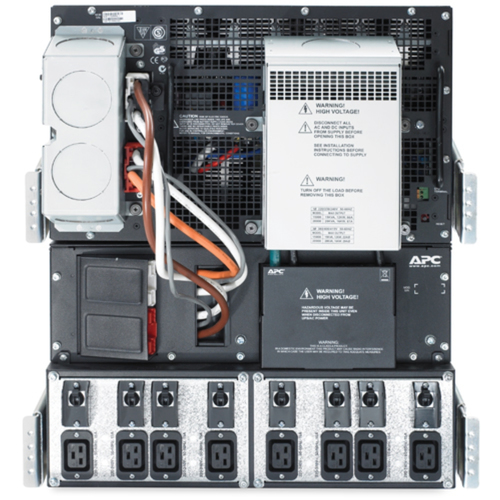

- Eight C19 AC outlets for server and network gear.
- Surge protection and audible alarms warn of power events.
- Operating temperature range 0 - 40 C fits most data-center environments.
Specifications
| Features |
| Auto-restart |
Yes |
| Audible alarm(s) |
Yes |
| Surge protection |
Yes |
| Noise level |
59 dB |
| Emergency Power Off (EPO) |
Yes |
| Crest factor |
3:1 |
| Efficiency |
93.7% |
| Number of output phases |
1 |
| Maximum current |
115 A |
| Output frequency regulation |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
220 V |
| Input frequency |
40 - 70 Hz |
| Waveform |
Sine |
| Output power |
16000 W |
| Output power capacity |
20 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| SmartSlot |
Yes |
| Cabling technology |
10/100Base-T |
| Ethernet LAN (RJ-45) ports |
1 |
| Serial interface type |
RS-232 |
| Serial interface |
Yes |
| Number of output IEC jumpers |
2 |
| AC outlets quantity |
8 AC outlet(s) |
| Power plug |
Terminal |
| AC outlet types |
C19 coupler |
| Battery |
| Battery capacity |
3840 VAh |
| Cold start |
Yes |
| Automatic battery test |
Yes |
| Hot-swap battery |
Yes |
| Battery recharge time |
2.5 h |
| Battery life (max) |
5 year(s) |
| Typical backup time at half load |
15.2 min |
| Typical backup time at full load |
4.9 min |
| Battery capacity |
3840 VAh |
| Battery capacity |
3840 VAh |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| LED indicators |
Yes |
| Display type |
LCD |
| Rack capacity |
12U |
| Product colour |
Black |
| Form factor |
Rackmount/Tower |
| Operational conditions |
| Non-operating altitude |
0 - 15000 m |
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
BSMI, EN/IEC 62040-2, EN/IEC 62040-1-1, VDE, PEP, EOLI |
| Compliance certificates |
RoHS |
| Packaging content |
| Manual |
Yes |
| Cables included |
RS-232 |
| Rack mount kit |
Yes |
| Weight & dimensions |
| Weight |
247.7 kg |
| Height |
533 mm |
| Depth |
773 mm |
| Width |
432 mm |
| Packaging data |
| Package weight |
314.1 kg |
| Package height |
990 mm |
| Package depth |
1003 mm |
| Package width |
610 mm |
| Software CD |
Yes |
| Other features |
| Packaging content |
Web/SNMP Management Card |
| Nominal input voltage |
230 V |
| Nominal output voltage |
230 V |
| Operating temperature (T-T) |
0 - 40 °C |
