When the lights go out your computer network can crash in an instant. The APC Smart-UPS SMT1500RMJ2U 1.5 kVA 1200 W Rackmount LCD is a battery backup that keeps your servers, routers and storage running long enough to save work and shut down safely. If you have ever lost data or faced costly downtime, this unit is the safety net you need.

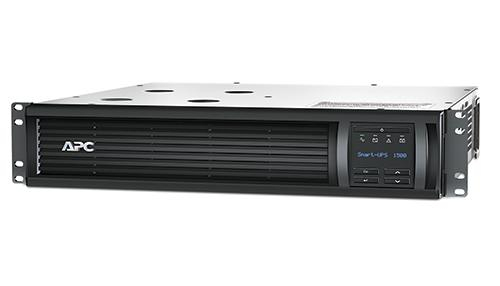

APC Smart-UPS SMT1500RMJ2U 1.5 kVA 1200 W Rackmount LCD
This UPS solves the problem of sudden power loss that can corrupt files and damage equipment. The issue matters because every minute of downtime can mean lost revenue and angry customers. The Smart-UPS provides clean, filtered power and an intelligent LCD that tells you exactly what is happening, when the battery needs service and how much energy you have used. It does all this while staying efficient and quiet, so your data center runs smoothly.
Benefits
- Instant power backup protects servers from unexpected outages.

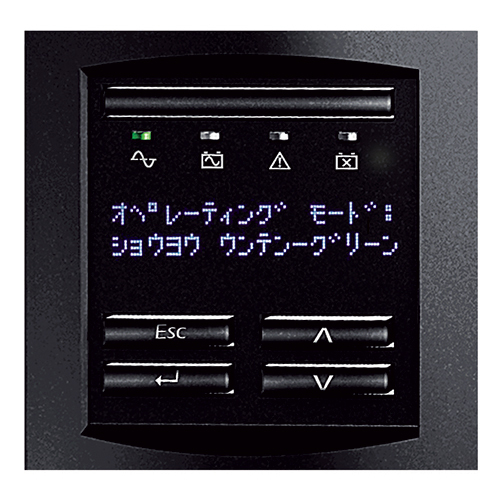

- LCD display shows battery health, load level and replacement date.
- High efficiency reduces electricity cost and heat output.
- Six outlets let you power multiple devices from one unit.
- Quiet fan operation keeps the rack environment comfortable.
Usages
The unit fits into a standard 2U rack and is ideal for small to medium data centers. Use it to protect servers, network switches, storage arrays and critical workstations. It works well in office server rooms, remote branch offices and any location where power quality is not guaranteed. The single outlet group can be set to reboot a hung device without affecting the rest of the equipment.
Key Features
- 1200 watt output supports high-performance servers.
- 1.5 kVA capacity gives ample headroom for growth.
- 97.6 percent efficiency thanks to bypass mode.
- Built-in audible alarm warns of power events.
- Surge protection shields against voltage spikes.
- 46 decibel noise level keeps rack quiet.
- Active cooling fan maintains safe temperature.
- USB port enables local configuration and monitoring.
- Battery recharge time of four hours minimizes downtime.
- Sealed lead acid battery provides reliable long-term power.
- Rackmount design occupies only 86 millimeters height.
- Black finish blends with standard data center equipment.
Specifications
| Features |
| Audible alarm(s) |
Yes |
| Surge protection |
Yes |
| Noise level |
46 dB |
| EMI/RFI noise filtering |
Yes |
| EMI/RFI noise filtering |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
7% |
| Efficiency |
97.6% |
| Surge energy rating |
540 J |
| Maximum current |
12 A |
| Output operation voltage (max) |
100 V |
| Output operation voltage (min) |
100 V |
| Input frequency |
50/60 Hz |
| Input operation voltage (max) |
100 V |
| Input operation voltage (min) |
100 V |
| Output power |
1200 W |
| Output power capacity |
1.5 kVA |
| Ports & interfaces |
| USB 2.0 ports quantity |
1 |
| AC outlets quantity |
6 AC outlet(s) |
| Power plug |
NEMA 5-15P |
| AC outlet types |
NEMA 5–15R |
| Battery |
| Battery recharge time |
4 h |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| Display type |
LCD |
| Built-in fan |
Yes |
| Cooling type |
Active |
| Cable length |
2.44 m |
| Rack capacity |
2U |
| Product colour |
Black |
| Form factor |
Rackmount |
| Operational conditions |
| Non-operating altitude |
0 - 15000 m |
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
REACH, RoHS, UL 1778, VCCI A |
| Compliance certificates |
RoHS |
| Weight & dimensions |
| Weight |
27.8 kg |
| Height |
86 mm |
| Depth |
468 mm |
| Width |
432 mm |
| Packaging data |
| Package weight |
33 kg |
| Other features |
| Package dimensions (WxDxH) |
594 x 603 x 251 mm |
| Operating temperature (T-T) |
0 - 40 °C |
| Battery type |
APCRBC133 |
