Power outages and dirty electricity can shut down servers, corrupt files and damage expensive hardware. When a business loses power, the cost of downtime can be far higher than the price of a good UPS. The APC Smart-UPS Ultra On-Line Li-Ion 10 kVA gives you clean, uninterrupted power so your equipment stays online and your data stays safe.

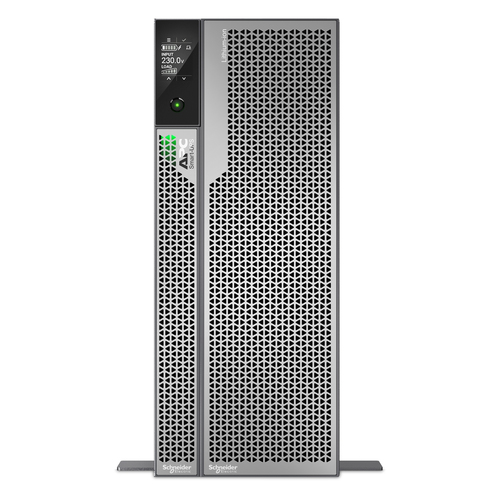

APC Smart-UPS Ultra On-Line Li-Ion 10 kVA Rack/Tower 4U 220-240V with APC
Imagine a UPS that never lets the power switch, even for a split second. This unit uses double-conversion technology to filter every voltage spike and keep the output perfectly stable. It is built for servers, storage arrays and network switches that cannot afford a single glitch. With APCs built-in network card and PowerChute software, the UPS can shut down multiple machines safely before the battery runs out, protecting you from data loss and hardware damage.
Usages

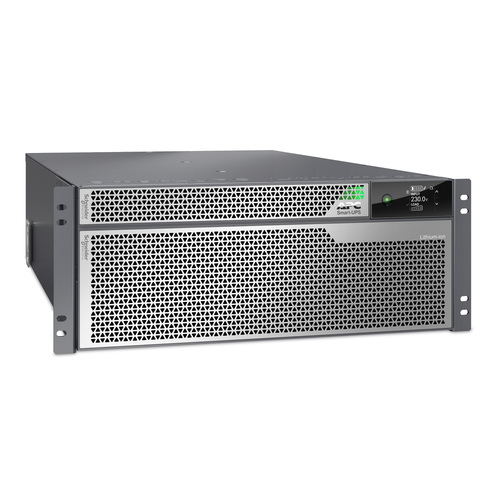

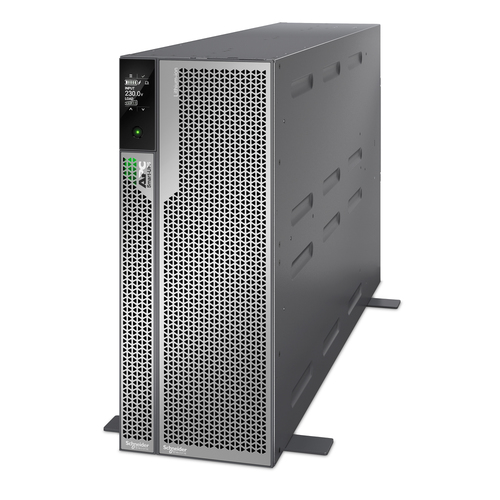

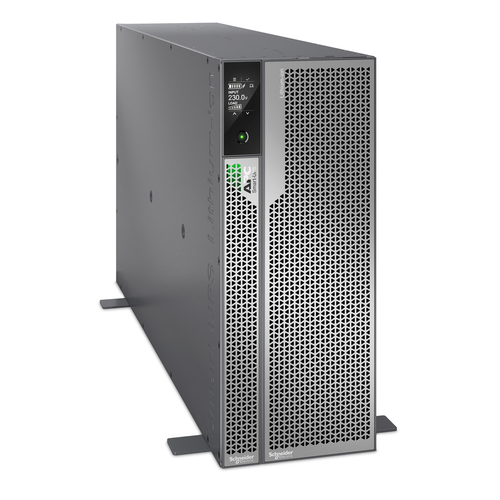

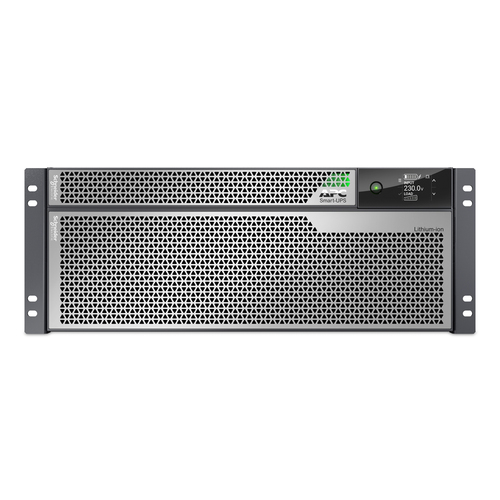

The UPS fits in a 4U rack or can stand as a tower, making it ideal for data-center racks, small-business server closets, telecom cabinets and edge-computing sites. Use it to protect critical servers, SAN storage, VoIP equipment, fire-alarm panels or any IT gear that needs constant power. It also works well for high-performance computing clusters where power quality directly affects performance.
Benefits
- Zero-delay power transfer keeps applications running without interruption.
- Li-Ion batteries last up to 10 years, so you rarely need to replace them.
- Compact 4U size saves rack space and reduces weight compared to lead-acid models.
- Remote monitoring lets you see status and receive alerts from any web browser.
- Integrated PowerChute shutdown protects data on multiple servers automatically.
Key Features
- 10 kVA / 10 kW double-conversion (online) topology.
- Lithium-Ion battery with 1.5 h recharge time.

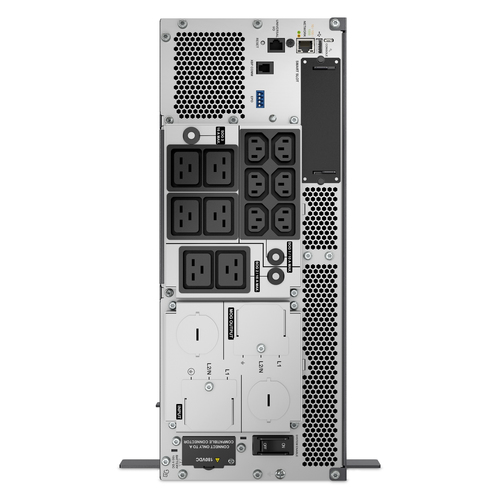

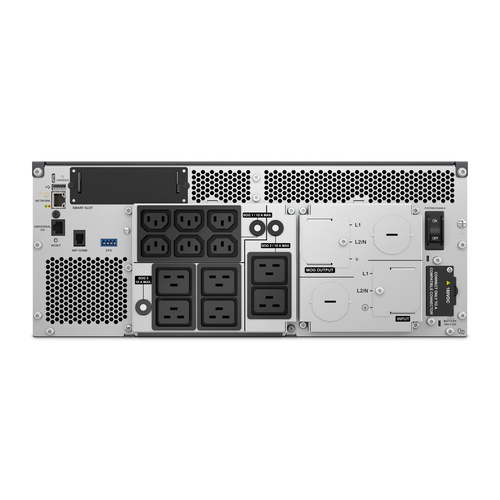

- 12 AC outlets (C13, C19, hard-wire) for flexible connections.
- Integrated network management card with SNMP support.
- PowerChute Network Shutdown software for safe server shutdown.
- LCD display with auto-rotation for easy local monitoring.
- Expandable runtime - add up to 9 external battery packs.
- 55 kg weight, 4U height (175 mm) for rack or tower installation.
- IP20 protection, 55 dB noise level, 5 year warranty.
Specifications
| Features |
| Detachable power cord |
Yes |
| Power source type |
AC |
| Audible alarm modes |
Alarm when on battery, Low battery alarm |
| Audible alarm(s) |
Yes |
| Noise level |
55 dB |
| Output voltage Total Harmonic Distortion (THD) |
5% |
| Crest factor |
3:1 |
| Heat dissipation |
1900 BTU/h |
| Surge energy rating |
1410 J |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
220 V |
| Input frequency |
40/70 Hz |
| Input operation voltage (max) |
240 V |
| Input operation voltage (min) |
220 V |
| Waveform |
Sine |
| Output power |
10000 W |
| Output power capacity |
10 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| SmartSlot |
Yes |
| Emergency Power Off (EPO) connector |
Yes |
| USB port |
Yes |
| AC outlets quantity |
12 AC outlet(s) |
| Power plug |
Hardwire |
| AC outlet types |
C13 coupler, C19 coupler, Hardwire |
| Battery |
| Battery recharge time |
1.5 h |
| Battery life (max) |
10 year(s) |
| Typical backup time at half load |
11 min |
| Typical backup time at full load |
5 min |
| Battery voltage |
180 V |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Design |
| International Protection (IP) code |
IP20 |
| LED indicators |
Yes |
| Display type |
LCD |
| Rack capacity |
4U |
| Product colour |
Grey |
| Form factor |
Rackmount/Tower |
| Operational conditions |
| Non-operating altitude |
0 - 15240 m |
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
EN/IEC 62040-1 EN/IEC 62040-2 IEC 62040-2 |
| Compliance certificates |
CE, REACH, UKCA, VDE |
| Packaging content |
| Manual |
Yes |
| Cables included |
USB cable |
| Rack mount kit |
Yes |
| Sustainability |
| Sustainability compliance |
Yes |
| Sustainability certificates |
Green Premium |
| Weight & dimensions |
| Weight |
55 kg |
| Height |
175 mm |
| Depth |
832 mm |
| Width |
432 mm |
| Packaging data |
| Package weight |
88.5 kg |
| Package height |
630 mm |
| Package depth |
1000 mm |
| Package width |
650 mm |
| Other features |
| Operating temperature (T-T) |
0 - 40 °C |
