Power outages can shut down your business in seconds, and a sudden surge can ruin expensive equipment. The APC SMX1500RM2UC Line-Interactive UPS 1.44 kVA 1200W Pure Sine Wave is built to keep your servers, routers and workstations running when the grid fails. It protects against spikes, brownouts and data loss so you never lose productivity or critical files.

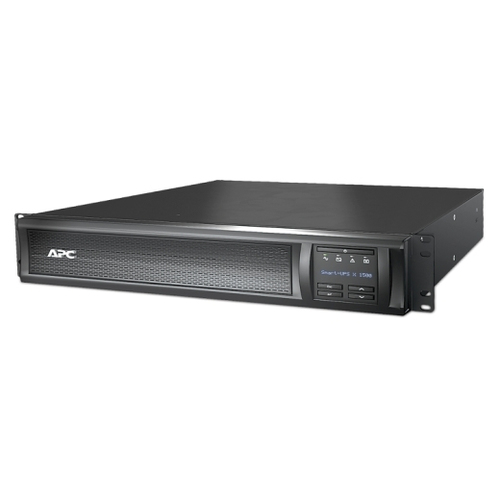

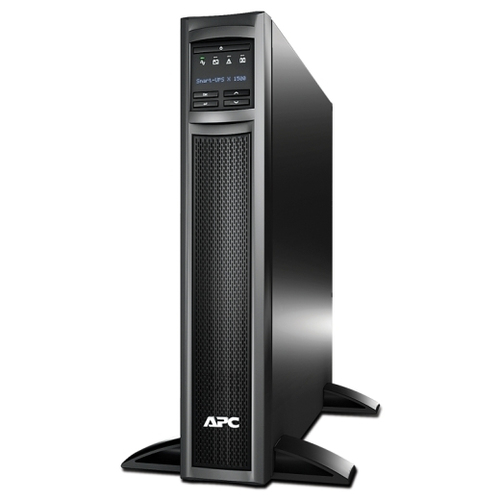

APC SMX1500RM2UC Line-Interactive UPS 1.44 kVA 1200W Pure Sine Wave
Many small offices and remote sites face unstable power that can cause hardware failures. Unreliable power means downtime, lost revenue and costly repairs. This UPS solves the problem by delivering clean, pure sine wave power and automatically correcting voltage swings without using the battery. It gives you enough runtime to finish work or shut down safely, and it can be managed from a computer or network for easy monitoring.
Benefits
- Pure sine wave output protects sensitive servers and active-PFC power supplies.
- Automatic Voltage Regulation smooths low and high line voltage, extending battery life.
- Hot-swap battery lets you replace the pack without turning off equipment.
- LCD interface shows load, battery status and alerts at a glance.
- Network-ready ports enable remote monitoring and automated shutdown.
Usages
Use this UPS in a small server room to keep virtualization hosts online during a blackout. It works well for a remote office where a router and VoIP phone need uninterrupted power. Desktop workstations, network switches and storage devices also benefit from the clean sine wave and voltage regulation. The unit can be mounted in a rack or placed on a shelf, so it fits both data-center and office environments.
Key Features
- 1.44 kVA (1200 W) capacity for medium-size loads.
- Line-interactive topology with AVR up to +12 % and -30 %.
- Pure sine wave output, 5 % THD.
- 8 NEMA 5-15R outlets, 12 A max per outlet.
- SmartSlot for expansion modules.
- RS-232 serial, USB Type-B, and optional Ethernet connectivity.
- PowerChute Business Edition software for monitoring and graceful shutdown.
- 645 J surge protection and 40 dB noise level.
- Hot-swap, sealed-lead-acid battery with 3-hour recharge.
- Energy Star certified, 97 % efficiency in green mode.
- LED indicators and LCD display for status at a glance.
Specifications
| Features |
| Auto-restart |
Yes |
| Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm |
| Audible alarm(s) |
Yes |
| Power protection features |
Short circuit |
| Noise level |
40 dB |
| Output voltage Total Harmonic Distortion (THD) |
5% |
| Emergency Power Off (EPO) |
Yes |
| Surge energy rating |
645 J |
| Maximum current |
12 A |
| Automatic Voltage Regulation (AVR) |
Yes |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
120 V |
| Input frequency |
50/60 Hz |
| Input operation voltage (max) |
154 V |
| Input operation voltage (min) |
75 V |
| Waveform |
Sine |
| Output power |
1200 W |
| Output power capacity |
1.44 kVA |
| UPS topology |
Line-Interactive |
| Ports & interfaces |
| SmartSlot |
Yes |
| Serial interface type |
RS-232 |
| Serial interface |
Yes |
| USB 2.0 ports quantity |
1 |
| USB port type |
USB Type-B |
| USB port |
Yes |
| AC outlets quantity |
8 AC outlet(s) |
| Power plug |
NEMA 5-15P |
| AC outlet types |
NEMA 5-15R |
| Battery |
| Automatic battery test |
Yes |
| Hot-swap battery |
Yes |
| Battery recharge time |
3 h |
| Battery life (max) |
5 year(s) |
| Number of batteries supported |
1 |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| LED indicators |
Yes |
| Display type |
LCD |
| Cable length |
2.44 m |
| Rack capacity |
2U |
| Product colour |
Black |
| Form factor |
Rackmount/Tower |
| Operational conditions |
| Non-operating altitude |
0 - 15000 m |
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
cUL Listed, TAA compliance, UL 1778 |
| Compliance certificates |
RoHS |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Weight |
24.8 kg |
| Height |
89 mm |
| Depth |
490 mm |
| Width |
432 mm |
| Packaging data |
| Package weight |
30 kg |
| Package height |
246 mm |
| Package depth |
620 mm |
| Package width |
589 mm |
| Other features |
| Operating temperature (T-T) |
0 - 40 °C |
