Bihl Wiedemann ASi-5 ASi-3 PROFINET Gateway Safety Monitor Industrial Gateway

When you try to connect ASi-5 or ASi-3 devices to a PROFINET network, the wiring and configuration become very complex. A tangled network can cause long downtime, unsafe machine operation, and costly re-engineering. This gateway removes the hassle by linking the two ASi systems directly to PROFINET while keeping safety monitoring in place. The result is a clean, reliable connection that protects both people and equipment.

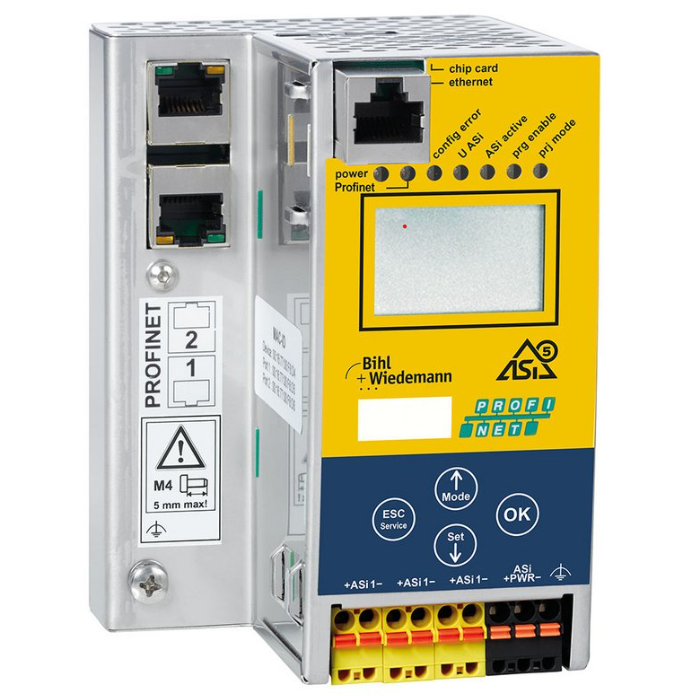

Bihl Wiedemann ASi-5 ASi-3 PROFINET Gateway with Safety Monitor Industrial Gateway with PROFINET

Imagine a single box that lets your ASi-5 and ASi-3 modules talk to a PROFINET controller without extra cables or separate safety units. This product gateway is a PROFINET IO device that also carries a safety monitor, so you meet safety standards while simplifying the network. If you have struggled with mismatched protocols or unsafe wiring, this gateway gives you a clear, plug-and-play path.

Usages

The gateway fits any factory line that uses ASi sensors, actuators, or safety devices. It is ideal for robotic cells that need fast PROFINET communication and strict safety monitoring. Packaging machines can link their ASi-3 safety loops to a central PLC via PROFINET. Assembly stations that mix old ASi-5 equipment with new PROFINET controllers also benefit, as the device handles both protocols in one unit.

Benefits

• Reduces wiring effort and saves installation time.
• Keeps safety functions active while using PROFINET.
• Provides built-in diagnostics that help you spot errors fast.
• Supports media redundancy for higher network uptime.
• Fits standard DIN-rail, saving panel space.

Key Features

• Two RJ-45 ports with integrated 2-port switch and IRT capability.
• Class B PROFINET conformance, Class C IRT support.
• 10/100 Mbaud Ethernet speed, half- or full-duplex.
• OPC UA server, web server and REST API for easy integration.
• Media Redundancy Protocol (MRP) for fault-tolerant networking.

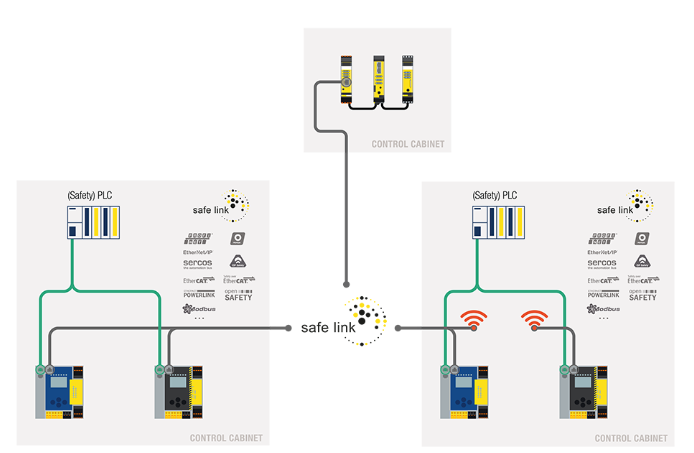

• Safe Link safety communication compatible with ASi-3 safety.
• LCD menu shows addresses and clear error messages.
• LEDs indicate power, PROFINET status, configuration errors, and safety activity.
• Stainless-steel housing, IP20 protection, DIN-rail mounting.
• Operating temperature -25 C to +55 C, storage -25 C to +85 C.

Specifications
