Imagine a powerhouse that fits on your desk, in a wall mount, or even behind a monitor—this Mini PC delivers blazing speed and ultra‑low power consumption, so you can work, create, and stream without compromise.

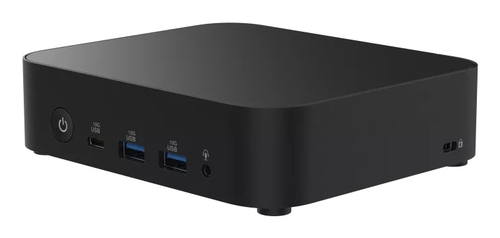

ASUS 90AR00M2-M000M0 Mini PC barebone DDR5-SDRAM M.2 Serial ATA Ethernet LAN
Built on the next‑generation Intel® Core™ N150 processor, the ASUS NUC 14 Essential combines 4 cores, 3.6 GHz turbo speed, and integrated Intel graphics for fast image editing, smooth web browsing, and effortless multitasking.
Its compact 0.56 L chassis supports up to three 4K displays, delivering crisp visuals while saving space in any office or home setup. The device also offers a rich set of I/O ports, including USB‑C, USB‑A, HDMI 2.1, DisplayPort 1.4, and a high‑speed LAN port for reliable networking.
Designed for flexibility, the barebone model lets you add up to 16 GB DDR5‑SDRAM and an M.2 SSD, giving you the performance you need now and the upgrade path for tomorrow.
Benefits
- Exceptional responsiveness for image editing and web navigation.
- Energy‑efficient operation thanks to the low‑power Intel® Core™ N-series processor.
- Triple 4K display support in a tiny 0.56‑liter chassis.
- Versatile mounting options, including VESA‑compatible wall or monitor placement.
Uses of the product
- Office productivity stations that need fast, reliable performance.
- Digital signage and kiosk deployments with multiple high‑resolution screens.
- Content creation rigs for video editing and streaming simultaneously.
- Compact home theater PCs that blend into any living‑room setup.
Features
- Intel® Core™ N150 processor with 4 cores, 3.6 GHz frequency, and 6 MB cache.
- One DDR5‑SDRAM SO‑DIMM slot supporting up to 16 GB non‑ECC memory.
- M.2 NVMe SSD slot with Serial ATA support for fast storage expansion.

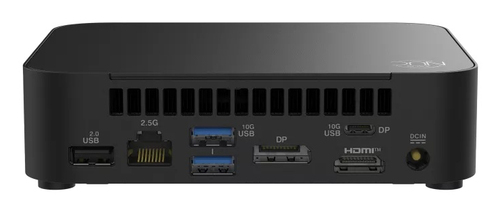

- Comprehensive connectivity: Wi‑Fi 6E, Bluetooth 5.3, Thunderbolt 4, HDMI 2.1, DisplayPort 1.4, USB‑C (10 Gbps), USB‑A (10 Gbps), USB‑2.0, and Gigabit Ethernet.
Specifications
| Processor |
| ECC supported by processor |
No |
| Processor cache |
6 MB |
| Processor frequency |
3.6 GHz |
| Processor threads |
4 |
| Processor cores |
4 |
| Processor model |
N150 |
| Processor family |
Intel Core 7 |
| Processor manufacturer |
Intel |
| Built-in processor |
Yes |
| Memory |
| Non-ECC |
Yes |
| ECC |
No |
| Maximum internal memory |
16 GB |
| Supported memory types |
DDR5-SDRAM |
| Number of memory slots |
1 |
| Memory slots type |
SO-DIMM |
| Storage |
| NVMe |
Yes |
| Storage drive interface |
M.2, Serial ATA |
| SSD form factor |
M.2 |
| Storage drive sizes supported |
M.2 |
| Supported storage drive types |
SSD |
| Graphics |
| Graphics card family |
Intel |
| On-board graphics card |
Yes |
| Network |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| LAN controller |
Dragon RTL8125BG |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| DC-in jack |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Thunderbolt 4 ports quantity |
1 |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
1 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
1 |
| Design |
| Product type |
PC barebone |
| Cable lock slot type |
Kensington |
| Product colour |
Black |
| Software |
| Linux operating systems supported |
RedHat EL Linux, Ubuntu 24.04 LTS |
| Windows operating systems supported |
Windows 11 |
| Power |
| AC adapter output current |
3.42 A |
| AC adapter output voltage |
19 V |
| Power supply |
65 W |
| Power supply type |
External AC adapter |
| Weight & dimensions |
| Height |
36 mm |
| Depth |
115 mm |
| Width |
135 mm |
| Other features |
| Warranty period |
3 year(s) |
